StarTech USB3CAB2M USB 3.0 Type-A to Type-B Cable 2m

Brand:

The StarTech.com USB3CAB2M is a 2-meter SuperSpeed USB 3.0 Type-A to Type-B male-to-male cable designed for reliable connectivity between a USB-capable computer and USB 3.0 Type-B peripherals. It supports data transfer rates up to 5Gbps and is USB-IF certified to USB 3.2 Gen 1 specifications. Aluminum-Mylar foil with braided shielding helps support dependable data communication, while molded connectors and strain relief improve cable durability for repeated enterprise deployment.

OVERVIEW

  • The USB3CAB2M is a 2m USB 3.0 A-to-B cable positioned in StarTech.com's certified SuperSpeed connectivity range for USB Type-B peripherals. It delivers up to 5Gbps and combines USB-IF certification with shielded construction for dependable device connectivity. Compatibility: USB-A host to USB-B 5Gbps peripheral. Compare: USB3CAB2M has straight connectors; StarTech's USB3SAB2MRA uses a right-angle A connector for tight spaces.

USE CASES

  • External storage connectivity: Connects compatible USB 3.0 Type-B hard-drive enclosures to desktops, laptops or servers for high-speed data transfers.
  • Docking station deployment: Provides the host-to-dock connection required by compatible USB Type-B docking hardware.
  • Video capture systems: Connects compatible USB 3.0 Type-B video capture devices to a computer while supporting the SuperSpeed bandwidth required by the device.
  • Card reader connectivity: Provides a high-speed connection between compatible USB Type-B card readers and host computers.
  • Enterprise workstation setup: Standardizes USB connectivity between computers and Type-B peripherals across office, engineering and professional workstations.
  • IT imaging and maintenance: Provides a dependable replacement or spare cable for service teams supporting USB 3.0 peripherals.
  • Server-room peripheral connections: Connects compatible USB Type-B equipment to USB-capable server or management systems where the cable length suits the installation.
  • Peripheral refresh projects: Replaces older USB cables with a USB 3.0-certified A-to-B connection when both host and peripheral support SuperSpeed USB.
  • Procurement standardization: A defined 2m length and USB-IF certification simplify cable selection for repeat deployments and infrastructure refreshes.

KEY FEATURES

  • USB 3.0 SuperSpeed up to 5Gbps: Enables high-speed data connectivity between compatible USB 3.0 hosts and Type-B peripherals, reducing transfer time compared with USB 2.0.
  • USB-IF Certified: Confirms compliance with USB 3.2 Gen 1 specifications, giving procurement teams a standards-based cable choice.
  • USB Type-A to Type-B male-to-male: Provides the specific connector combination required by many USB printers, storage enclosures, docking stations, card readers and capture devices.
  • 2m / 6.6ft length: Provides additional reach between equipment without unnecessarily long cable runs, supporting practical workstation and equipment-rack layouts.
  • Aluminum-Mylar foil with braided shielding: Helps protect signal integrity against electromagnetic interference, supporting reliable high-speed communication.
  • 24/28 AWG construction: Uses heavier-gauge power conductors alongside signal conductors to support the cable's USB 3.0 implementation.
  • Molded connectors with strain relief: Helps protect cable-to-connector junctions from repeated bending and handling, supporting longer service life.
  • Nickel-plated connectors: Provides a durable connector finish suited to repeated equipment installation and removal.
  • USB 2.0 backward compatibility: Allows connection to compatible USB 2.0 devices, although performance is limited to the lower USB standard.
  • Straight connector design: Provides conventional cable routing for standard desktop, workstation and peripheral installations.
  • Lifetime warranty: Provides long-term manufacturer coverage for organizations standardizing on the cable for recurring deployments.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / SKU: USB3CAB2M
  • Product Type: SuperSpeed USB 3.0 A-to-B cable
  • USB Standard: USB 3.0 / USB 3.2 Gen 1
  • Maximum Data Rate: 5Gbps

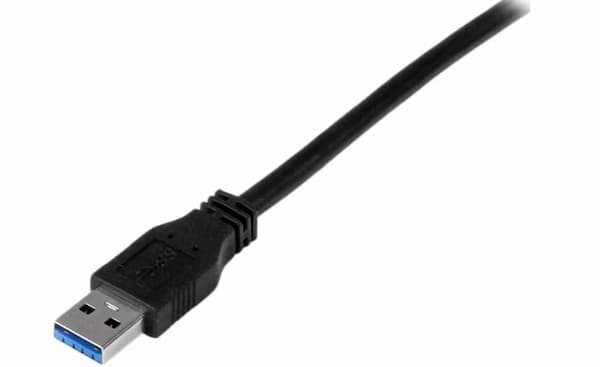

  • Connector 1: USB-A male, 9-pin, 5Gbps

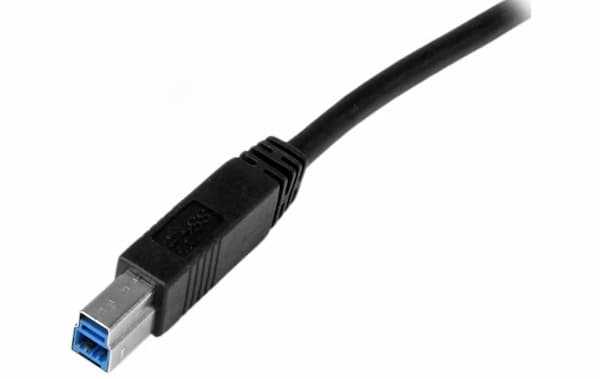

  • Connector 2: USB-B male, 9-pin, Gen 1, 5Gbps
  • Connector Gender: Male-to-Male
  • Cable Length: 2m / 6.6ft / 78.7in
  • Connector Style: Straight
  • USB-IF Certified: Yes
  • Backward Compatibility: USB 2.0
  • Wire Gauge: 24/28 AWG
  • Connector Plating: Nickel
  • Cable Shield: Aluminum-Mylar foil with braided shielding
  • Cable Jacket: PVC
  • Color: Black
  • Operating Temperature: -20°C to 80°C / -4°F to 176°F
  • Storage Temperature: -20°C to 80°C / -4°F to 176°F
  • Package Quantity: 1
  • Compatibility: USB-A host + USB-B peripheral
  • TAA Compliant: Yes

Why Choose This Product?

  • Standards-based procurement: USB-IF certification gives IT buyers a clearly specified SuperSpeed USB cable rather than an unverified generic alternative.
  • 5Gbps SuperSpeed performance: Supports the bandwidth required by compatible USB 3.0 Type-B peripherals such as storage and capture devices.
  • Purpose-built A-to-B connectivity: Avoids connector mismatch when deploying equipment with USB Type-B upstream interfaces.
  • EMI-conscious construction: Foil and braided shielding helps maintain reliable signal transmission in electrically busy workstation and equipment environments.
  • Practical 2m reach: Provides useful installation flexibility while keeping cable management more manageable than unnecessarily long alternatives.
  • Durability for repeat deployment: Molded strain relief and nickel-plated connectors are suited to equipment that is installed, serviced and reconnected over its operational life.
  • Backward compatibility: Supports continued use with compatible USB 2.0 equipment, helping simplify mixed-generation environments.
  • Lower replacement risk: A documented specification, USB-IF certification and lifetime warranty support standardized enterprise cable inventories.
