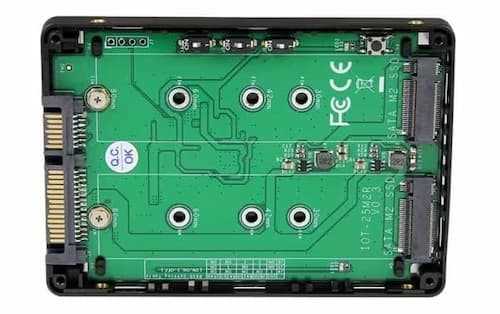

StarTech 25S22M2NGFFR Dual M2 SATA III RAID Adapter

• Legacy 2.5 inch SATA bay modernization
• Dual SSD workstation upgrades
• RAID 1 mirrored storage deployments
• RAID 0 performance-oriented storage
• M.2 SATA drive migration
• Storage capacity expansion
• M.2 SSD data recovery through SATA systems
• Hot swap bay storage applications
• External SATA docking applications
• IT infrastructure refresh projects

• Supports two M.2 SATA SSDs
• Fits a standard 2.5 inch SATA bay
• Supports RAID 0
• Supports RAID 1
• Supports BIG spanning mode
• Supports JBOD with compatible port multiplier
• SATA III 6Gbps interface
• TRIM support for compatible SSDs
• Supports M.2 2230, 2242, 2260 and 2280 drives
• Compatible with M.2 SATA B-Key NGFF SSDs
• Enclosed housing protects installed SSDs
• Fixed drive installation design
• No driver installation required
• OS independent operation
• TAA compliant construction

• Brand: StarTech.com
• Part Number: 25S22M2NGFFR
• Product Type: Dual M.2 SATA RAID Adapter
• Interface: SATA
• SATA Type: SATA III
• Maximum Data Transfer Rate: 6Gbps
• Number of Drives: 2
• Compatible Drive Type: M.2 SATA B-Key NGFF
• Supported Drive Sizes: 2230, 2242, 2260, 2280
• RAID Support: Yes
• RAID Modes: RAID 0, RAID 1, BIG, JBOD
• Port Multiplier: Yes
• TRIM Support: Yes
• NVMe Support: No
• PCIe AHCI SSD Support: No
• Host Connector: SATA 7-Pin + 15-Pin
• M.2 Connectors: 2 x M.2 B-Key SATA
• Chipset: ASMedia ASM1092R
• Drive Installation: Fixed
• Material: Steel and Plastic
• Color: Black and Silver
• Dimensions: 99 x 70 x 8 mm
• Weight: 55 g
• Input Voltage: 5V DC
• Output Voltage: 5V DC
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 85°C
• Humidity: 5% to 95%
• MTBF: 500000 hours

WHY CHOOSE THIS PRODUCT?

• 25S22M2NGFFR is suited to buyers who need to reuse a 2.5 inch SATA bay while moving to compact M.2 SATA SSD storage. Its two-drive architecture and four operating modes provide more deployment flexibility than a basic single-drive M.2 to SATA adapter, while RAID 1 can support mirrored storage requirements and RAID 0 or BIG can address different performance or capacity objectives. For procurement, the most important compatibility check is the SSD interface and key: this adapter requires SATA B-Key NGFF drives and is not suitable for NVMe or PCIe M.2 storage.
