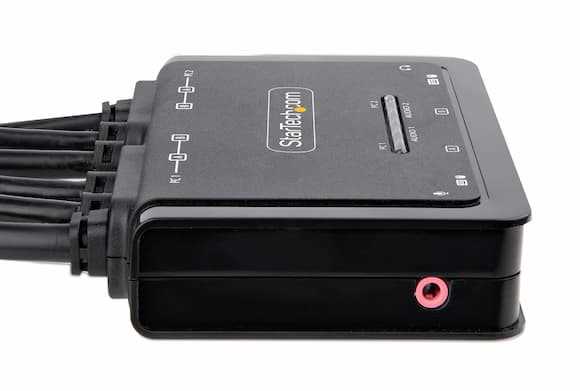

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch 4K

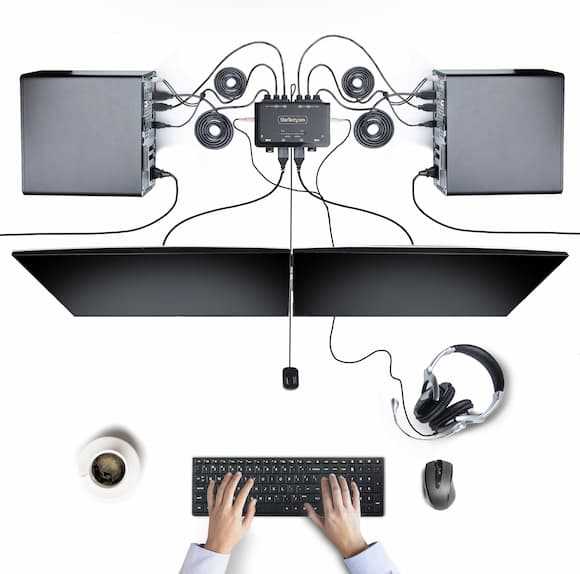

• Dual-PC professional workstations: Share two monitors, keyboard, mouse and audio between two computers without duplicating the complete peripheral setup.
• CAD/CAM environments: Maintains a dual-display workspace while allowing users to switch between two compatible workstations.
• Video editing stations: Supports dual 4K 60Hz DisplayPort displays for workflows requiring multiple application windows.
• Content-creation workstations: Centralizes display and USB peripherals for users operating more than one compatible computer.
• IT support desks: Allows technicians to maintain separate computers while using one monitor and peripheral environment.
• Development workstations: Switches between two systems while preserving a multi-display desktop configuration.
• Home-office and hybrid workstations: Provides a practical way to share peripherals between work and personal computers.
• Trading and monitoring desks: Supports dual-monitor layouts where users need access to two separate computers.
• Testing and QA environments: Makes it easier to alternate between test systems using one shared peripheral set.
• Multi-system administration: Provides physical host selection without requiring separate keyboard, mouse and display arrangements for each computer.

• Brand: StarTech.com
• Product ID: C2-DD46-UA2-CBL-KVM
• Product Type: 2-port dual-monitor DisplayPort KVM switch
• KVM Ports: 2
• Number of Monitors Supported: 2
• PC Interface: USB-A + DisplayPort
• Video Input: 2 × DisplayPort per host
• Console Video Output: 2 × DisplayPort
• Display Technology: DisplayPort
• DisplayPort Revision: DisplayPort 1.2
• Maximum Resolution: 4096 × 2160 @ 60Hz
• Dual 4K Support: Yes, 4K 60Hz on two displays
• Other Supported Resolution: 3840×2160 @60Hz, 5120×1440 @60Hz, 3440×1440 @60Hz, 2560×1440 @60Hz, 2560×1080 @60Hz, 1920×1200 @60Hz, 1920×1080 @60Hz
• USB Console Ports: 2 × USB 2.0 Type-A
• USB Data Rate: Up to 480Mbps
• Audio: Yes
• Audio Type: 2-channel analog stereo and DisplayPort 2-channel audio
• Console Audio: 2 × 3.5 mm stereo
• Switching Methods: Push button, hotkeys and software
• Remote Push Button: Yes
• Auto Scan: 10, 20, 30, 40, 50 or 60 seconds

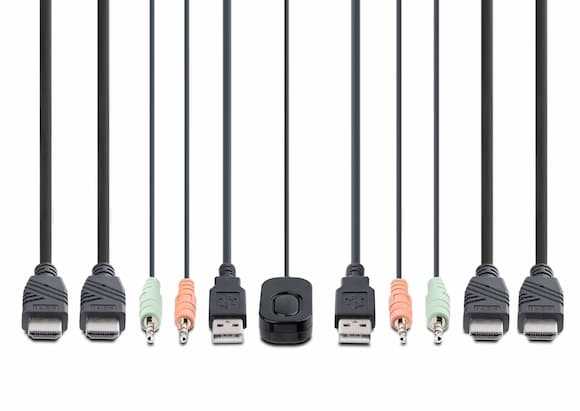

• Host Cable Length: 1.5 m / 5 ft integrated cables
• Power Source: Bus powered
• Input Voltage: 5V DC
• Chipset: SN8P2202SG
• Daisy Chain: No
• IP Control: No
• On-Screen Display: No
• Rack Mountable: No
• LED Indicators: Yes
• Enclosure Material: ABS
• Color: Black
• Product Dimensions: 9.5 × 8.0 × 2.4 cm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 0–90% RH, non-condensing
• MTBF: 261,196 hours
• Compatibility: DisplayPort + USB-A computers; broad OS support

Why Choose This Product?

• Dual-monitor workstation consolidation: One KVM can control two compatible computers while retaining two external displays.
• 4K 60Hz productivity: Supports high-resolution 60Hz output for compatible professional monitors and graphics workflows.
• Lower peripheral duplication: One keyboard, mouse, audio setup and display environment can serve two host computers.
• Deployment-ready cabling: Integrated host cables reduce cable-selection and installation work for IT teams.
• Flexible switching: Remote push-button and hotkey control accommodate different workstation layouts.
• No external power adapter: Bus-powered operation simplifies deployment and reduces another device from the workstation power arrangement.
• IT-oriented management tools: USB Event Monitoring and Windows Layout utilities can support troubleshooting and workflow consistency.
• Broad platform support: Core KVM functionality works across supported Windows, macOS, Linux and ChromeOS environments without requiring KVM drivers.
