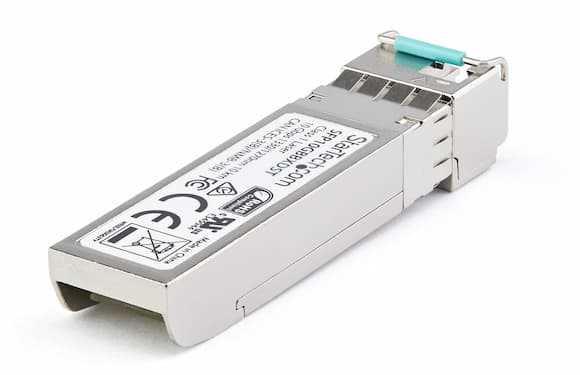

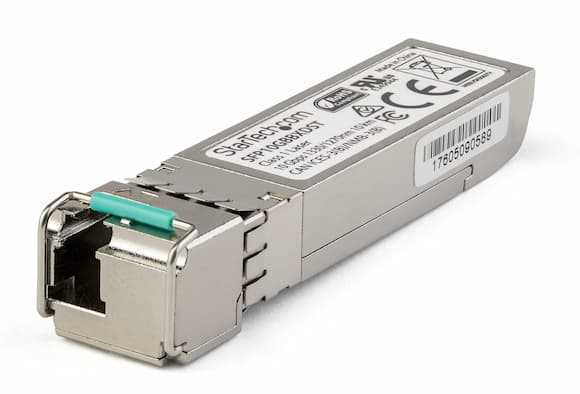

StarTech.com SFP10GBX40US 10G SFP+ BX40-U Transceiver

• Brand: StarTech.com
• Model: SFP10GBX40US
• Product Type: SFP+ optical transceiver
• Category: 10GbE BiDi fiber transceiver
• Transceiver Direction: Upstream
• Optical Standard: IEEE 802.3 10GBASE-BX40
• Maximum Data Transfer Rate: 10.31 Gbps
• Compatible Network Speed: 10 Gbps
• Maximum Transfer Distance: 40 km (24.8 miles)
• Fiber Type: Single-mode fiber (SMF)
• Connector Type: LC
• Wavelength: 1270nm transmit / 1330nm receive
• Fiber Operating Mode: Full duplex
• Digital Diagnostic Monitoring (DDM): Yes
• Hot-Swappable: Yes
• Power Consumption: Less than 1.6 W
• Compatible Brand: Dell EMC
• Compatibility: Designed for compatible Dell EMC switches and routers supporting the SFP-10G-BX40-U / 10GBASE-BX40 specification.
• Required Pairing Module: StarTech.com SFP10GBX40DS downstream transceiver
• Material: Steel
• Product Length: 13.9 mm (0.5 in)
• Product Width: 58.4 mm (2.3 in)
• Product Height: 12.6 mm (0.5 in)
• Product Weight: 30 g (1.1 oz)
• Mean Time Between Failures (MTBF): 3,736,187 hours
• Package Quantity: 1
• Package Contents: 1 SFP+ transceiver
• Operating Temperature: Not specified in the available documentation.
• Operating Humidity: Not specified in the available documentation.

Why Choose This Product?

• Supports long-distance 10GbE fiber connectivity up to 40 km.
• Helps reduce fiber-strand requirements through BiDi transmission.
• Provides a specific transceiver option for compatible Dell EMC equipment.
• Supports single-mode fiber networking infrastructure.
• DDM support provides diagnostic information on compatible equipment.
• Hot-swappable design supports replacement on compatible hardware.
• Designed to work with the matching downstream transceiver.
• TAA compliance may support applicable procurement requirements.
