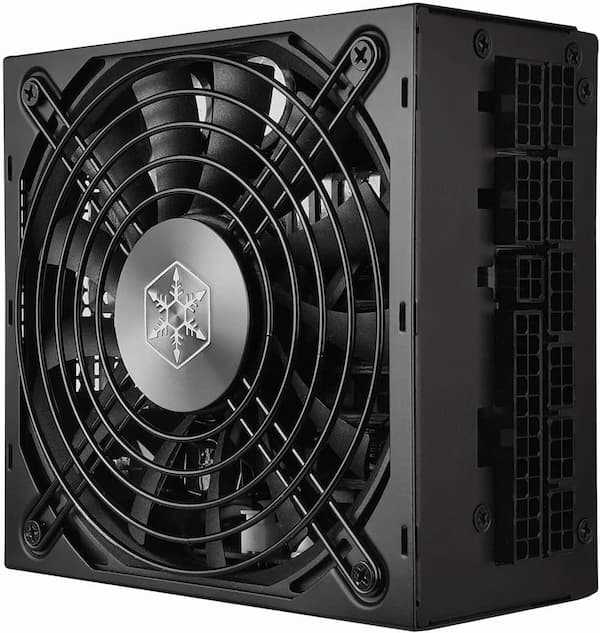

SilverStone SX1000 Platinum 80 Plus Platinum 1000W Fully Modular SFX-L Power Supply


Brand:

Specifications

   Product Details:
  • Model No.: SST-SX1000-LPT
  • 3 Years Warranty
   Specifications:
  • Model No.: SST-SX1000-LPT
  • Max. DC Output: 1000W
  • Power density: 969W per liter
   General Features:
  • Color: Black Lead-Free Paint
  • Combined +3.3V & +5V: 125W
  • Combined +12V: 999.6W
  • Input Voltage: 90V ~ 264V
  • Input Frequency Range: 47Hz ~ 63Hz
  • PFC: Active PFC PF>0.9 at full load
  • Efficiency: 89% ~ 92% at 20% ~ 100% loading
  • MTBF: 100,000 hours
  • Operating temperature: 0°C ~ 50°C
  • Cooling System: Single 120mm dual ball bearing fan
  • Form factor: SFX-L
  • Noise Level: 0 ~ 36 dBA
   Protection:
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection
   Connectors:
  • 1 x 24 / 20-Pin motherboard connector 300mm
  • 2 x 8 / 4-Pin EPS / ATX 12V connector?"400mm" x 2
  • 6 x 8 / 6-Pin PCIE connector "400mm / 150mm" x 3
  • 8 x SATA connector "300mm / 200mm / 100mm / 100mm" x 2
  • 3 x 4-Pin Peripheral connector 300mm / 200mm / 200mm
  • 1 x 4-Pin Floppy adapter connector 100mm
   Product Weight and Dimension:
  • Dimension: 125 mm (W) x 63.5 mm (H) x 130 mm (D)
  • Weight: 1.68 Kg
   Certification:
  • 80 PLUS Platinum
   Other:
  • GPU Support listCompatible with ATX12V v2.4


Features

Brand:
SilverStone
Warranty:
3 Years
