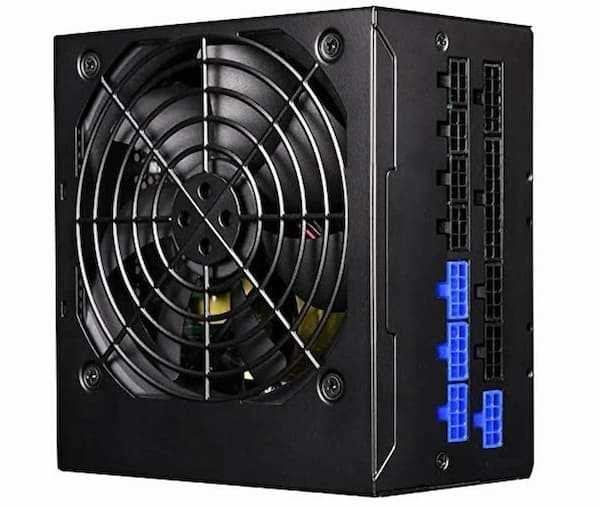

SilverStone ST85F-PT - Strider Platinum Series, 850W 80 Plus Paltinum ATX PC Power Supply


Brand:

Specifications

   Product Details:
  • 3 Years Warranty
  • Model No.: SST-ST85F-PT
   Specifications:
  • Model No.: SST-ST85F-PT
  • Max. DC Output: 850W
  • Power density: 471W per liter
   General Features:
  • Color: Black Lead-Free Paint
  • Combined +3.3V & +5V: 120W
  • Combined +12V: 850W
  • Input Voltage: 90V~264V
  • Input Frequency Range: 47Hz~63Hz
  • PFC: Active PFC?PF>0.9 at full load
  • Efficiency: 89%~92% at 20%~100% loading
  • MTBF: 100,000 hours
  • Operating temperature: 0°C ~ 40°C
   Protection:
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Under voltage protection
  • Over temperature protection
   Connectors:
  • 1 x 24 / 20-Pin motherboard connector 550mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 750mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 550mm
  • 4 x 8 / 6-Pin PCIE connector "550mm" x 4
  • 12 x SATA connector "600mm / 150mm / 150mm / 150mm" x 3
  • 3 x 4-Pin Peripheral connector 600mm / 150mm / 150mm
  • 1 x 4-Pin Floppy connector 100mm
   Product Weight and Dimension:
  • Dimension: 150 mm (W) x 86 mm (H) x 140 mm (D)
  • Weight: 2.54 kg
   Certification:
  • 80 PLUS Platinum
   Other:
  • GPU Support listCompatible with ATX12V v2.4


Features

Brand:
SilverStone
Warranty:
3 Years
