Home Networking Power SilverStone ST75F-GS v 2.0 - Strider Gold S Series, 750W 80 Plus Gold ATX PC Power Supply

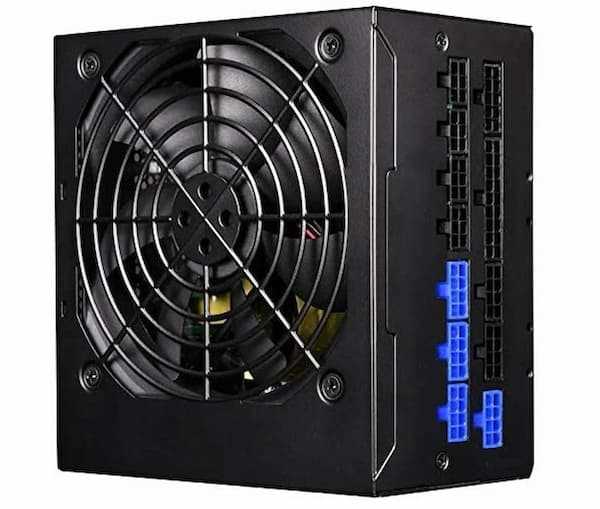

SilverStone ST75F-GS v 2.0 - Strider Gold S Series, 750W 80 Plus Gold ATX PC Power Supply


Brand:

Specifications

   Product Details:
  • Model No.: SST-ST75F-GS (V3.0)
  • 3 Years Warranty
   Specifications:
  • Model No.: SST-ST75F-GS (V3.0)
  • Max. DC Output: 750W
  • Power density: 415W per liter
   General Features:
  • Color: Black (lead-free paint)
  • Combined +3.3V & +5V: 100W
  • Combined +12V: 744W
  • Input Voltage: 90V~264V
  • Input Frequency Range: 47Hz ~ 63Hz
  • PFC: Active PFC. PF>0.9 at Full Load
  • Efficiency: 87%~90% at 20%~100% loading
  • MTBF: 100,000 hours
  • Operating temperature: 0°C ~ 40°C
  • Cooling System: Single 120mm silent fan
  • Form factor: ATX
  • Noise Level: 18 dBA minimum
   Protection:
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection
   Connectors:
  • 1 x 24 / 20-Pin motherboard connector 600mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 550mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 750mm
  • 4 x 8/6-Pin PCIE connector "550mm"
  • 8 x SATA connector "600mm /150mm / 150mm / 150mm" x 2
  • 6 x 4-Pin Peripheral connector ”600mm / 150mm / 150mm” x 2
  • 2 x 4-Pin Floppy connector 150mm
   Product Weight and Dimension:
  • Dimension: 150 mm (W) x 86 mm (H) x 140 mm (D)
  • Weight: 1.28 kg
   Certification:
  • 80 PLUS Gold
   Other:
  • GPU Support list Compatible with ATX12V v2.4


Features

Brand:
SilverStone
Warranty:
3 Years
