Home Networking Power SilverStone SST-ST30-SF 300W SFX Form Factor 80 Plus Bronze Power Supply (Black)

SilverStone SST-ST30-SF 300W SFX Form Factor 80 Plus Bronze Power Supply (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: SilverStone
  • Model: SST-ST30-SF

    Features
  • Supports standard SFX form factor and ATX via included bracket
  • 300W continuous power output at 40 degree C temperature rated for 24/7 operation
  • 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading)
  • Class-leading single +12V rail

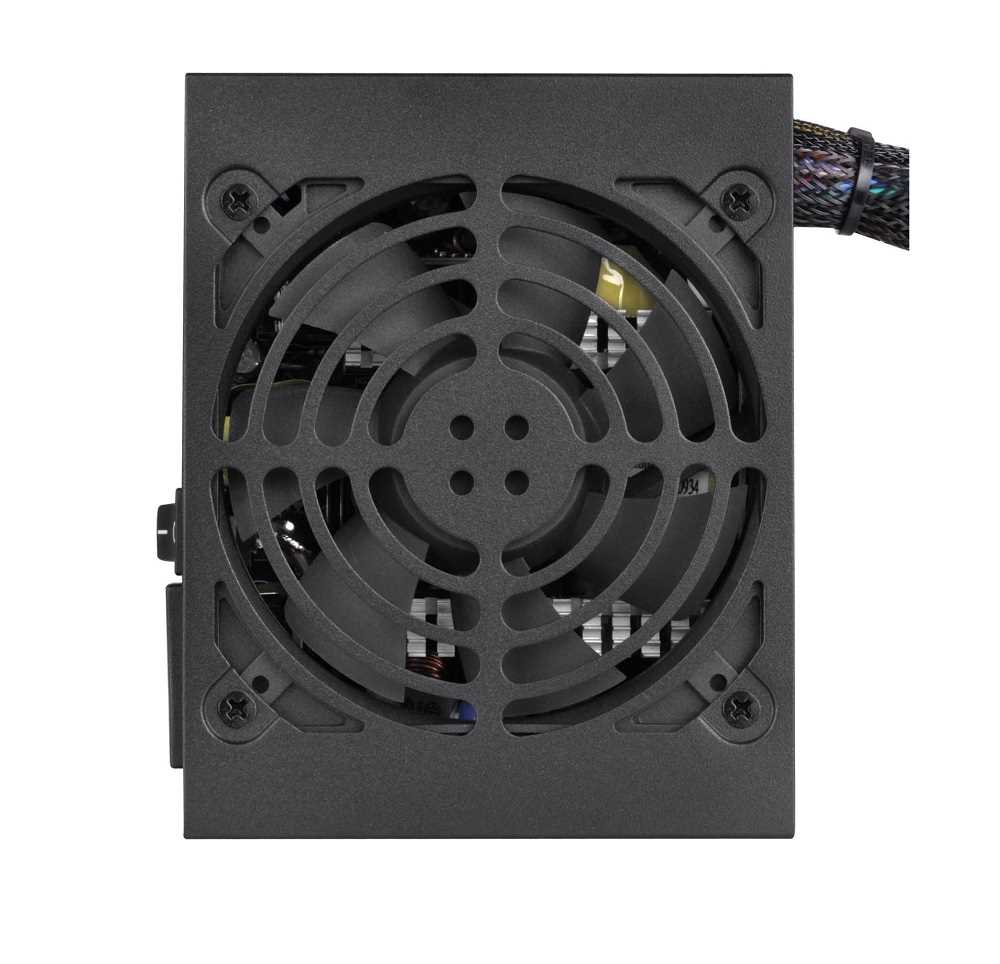

  • Silent running 92mm fan
  • Single PCI-E 6pin connectors support
  • Active PFC
  • Over Current Protection, Over Voltage Protection, Short Circuit Protection, Over Power Protection, Under Voltage Protection

    Specifications
  • Type: SFX
  • Maximum Power: 300 W
  • Fans: Single 92mm silent fan
  • PFC: Active
  • Main Connector: 20+4Pin
  • +12V Rails: Single
  • PCI-Express Connector: 1 x 6-Pin
  • SATA Power Connector: 3
  • Efficiency: 82% - 85%
  • Energy-Efficient: 80 PLUS BRONZE Certified
  • Over Voltage Protection: Yes
  • Input Voltage: 90 - 264 V
  • Input Frequency Range: 47 - 63 Hz
  • Output: +3.3V@21A, +5V@20A, +12V@22A, +5VSB@2.5A, -12V@0.5A
  • MTBF: >100,000 Hours
  • Max PSU Length: 100 mm

    Connectors
  • 1 x 24 / 20-Pin motherboard connector
  • 1 x 8 / 4-Pin EPS / ATX 12V connector
  • 1 x 6-Pin PCIE connector
  • 3 x SATA connector
  • 2 x 4-Pin Peripheral connector
  • 1 x 4-Pin Floppy connector

    Dimension & Weight
  • Dimensions: 2.50" x 4.92" x 3.94"
  • Weight: 2.20 lbs.

Features

Brand:
SilverStone
Color:
Black
Conditions:
New
Warranty:
1 Year
