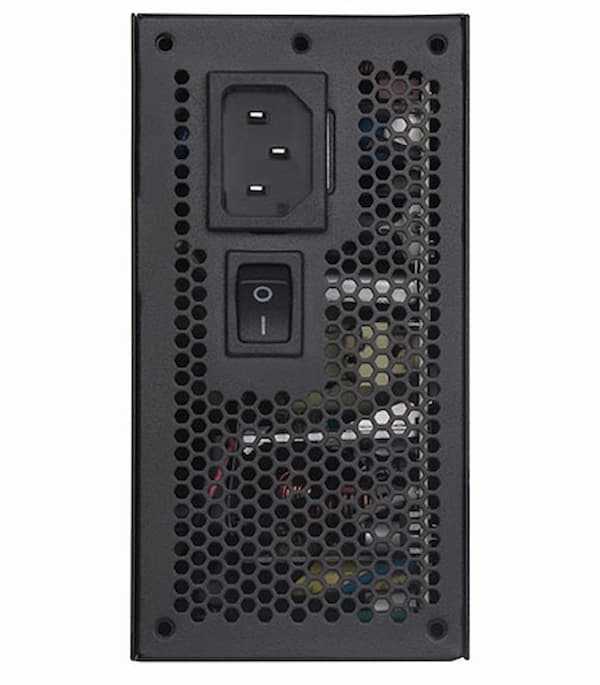

SilverStone SFX 300W 80+ Bronze, Full Modular Power Supply- SST-SX300-B


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: SilverStone
  • Model: SST-SX300-B
   Specifications:
  • Max. DC Output: 300W
  • Power density: 378W per liter
  • Color: Black Lead-Free Paint
  • Combined +3.3V & +5V: 120W
  • Combined +12V: 300W
  • Input Voltage: 90 ~ 265 Vrms
  • Input Frequency Range: 47Hz ~ 63Hz
  • PFC: Active PFC. PF>0.9 at Full Load
  • Efficiency: 82%~85% 20% to 100% loading
  • MTBF: 100,000 hours
  • Operating temperature: 0 ~ 40
  • Cooling System: Single 80mm silent fan
  • Form factor: SFX
  • Noise Level: 18dBA minimum
  • Weight: 0.88 kg
  • Certification: 80 PLUS Bronze
   Protection:
  • Over-current protection
  • Overpower protection
  • Overvoltage protection
  • Short circuit protection
  • Under-voltage protection
   Connectors:
  • 1 x 24 / 20-Pin motherboard connector 300mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 400mm
  • 1 x 8/6-Pin PCIE connector 400m
  • 3 x SATA connector 300mm / 200mm / 100mm
  • 2 x 4-Pin Peripheral connector 300mm / 200mm
  • 1 x 4-Pin Floppy connector 100mm
   Dimension:
  • 125 mm (W) x 63.5 mm(H) x 100 mm(D)
  • 4.92" (W) x 2.5" (H) x 3.94" (D)
   Other:
  • GPU Support list
  • Compatible with ATX12V v2.4
   Features:
  • Support standard SFX form factor
  • 24/7 continuous power output with 40 operating temperature
  • Silent running 80 mm fan with 18dBA minimum
  • High efficiency with 80 PLUS Bronze certification
  • Class-leading single +12V rail
  • PCIe 8pin and PCIe 6pin connectors support



Features

Brand:
SilverStone
Warranty:
1 Year
