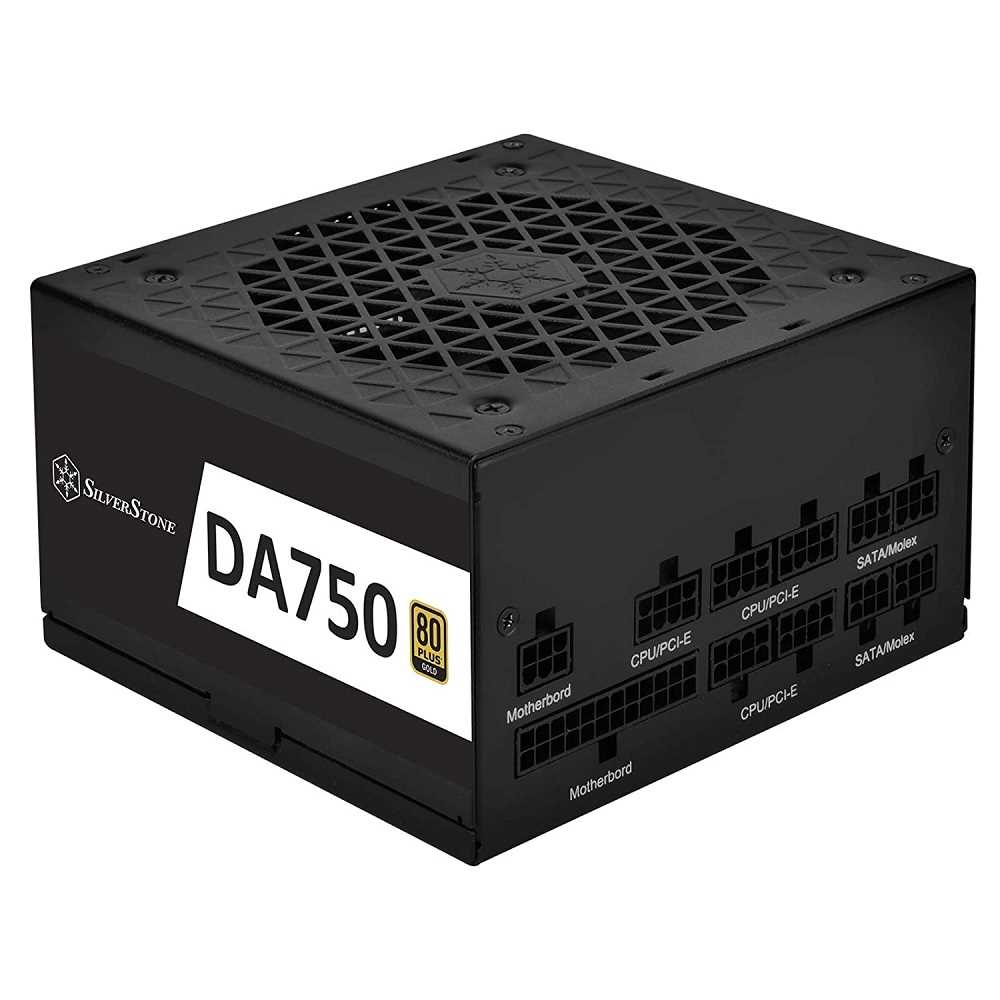

SilverStone DA750 Gold 80 Plus Gold 750W Fully Modular ATX Power Supply (SST-DA750-G)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 5 Years Warranty
  • Brand: SilverStone
  • Model: SST-DA750-G

    Features
  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 40? operating temperature
  • Class-leading single +12V rail

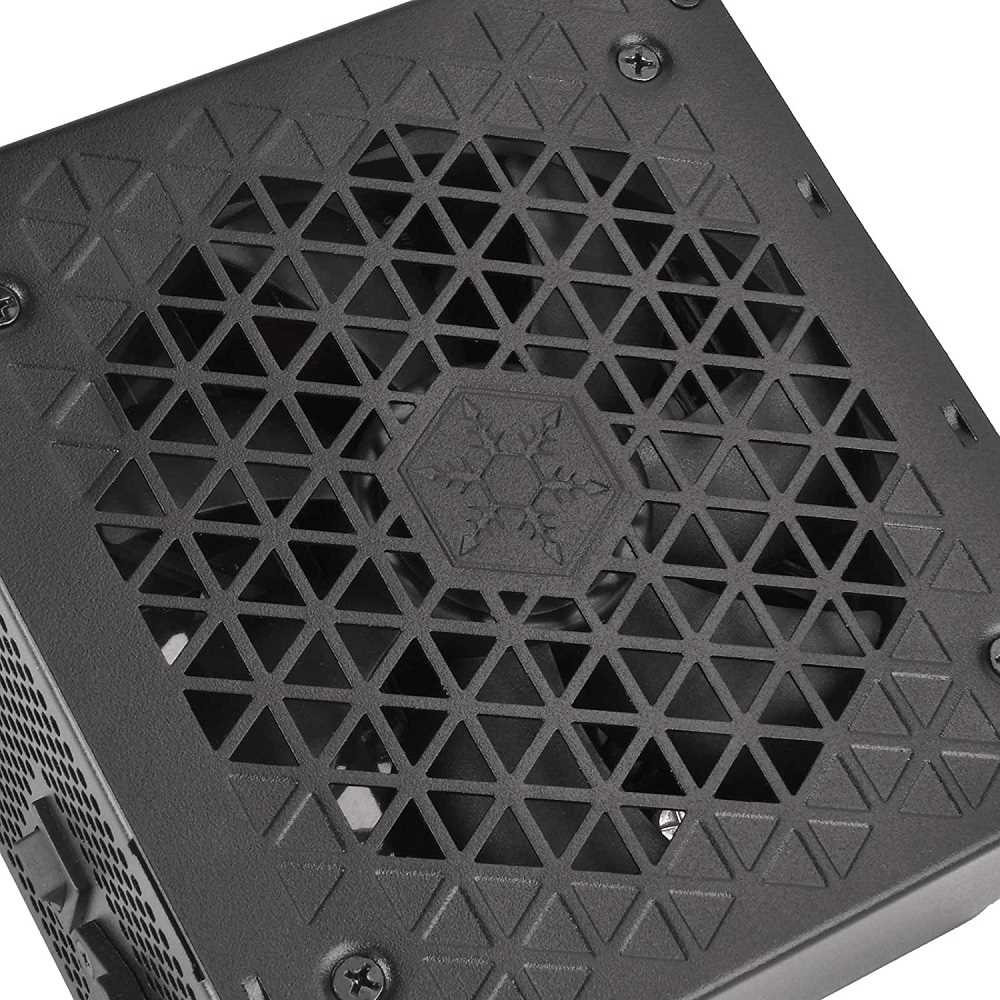

  • Silent running 120mm FDB fan with 18 dBA minimum
  • Specially designed cover increases effectiveness of residual heat dissipation
  • Compact design with a 140mm depth for easy integration
  • Strict ±3% voltage regulation and low ripple & noise
  • Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
  • Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
  • Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
  • Flat cables have much greater flexibility to allow for tighter folding and management of cables

    Specifications
  • Max. DC Output: 750W
  • Power density: 415W per liter
  • Model (safety certification): SST-AX0750MCGD-A
  • Color: black (lead-free paint)
  • Combined +3.3V & +5V: 110W
  • Combined +12V: 744W
  • Input Voltage: 90 ~ 264 Vrms
  • Input Frequency Range: 47Hz ~ 63Hz
  • PFC: Active PFC (PF>0.9 at full load)
  • Efficiency: 87% ~ 90% (at 20% ~ 100% loading)
  • MTBF: 100,000 hours
  • Operating temperature: 0 ~ 40°C
  • Cooling System: Silent 120mm FDB fan
  • Form factor: ATX (PS2)
  • Noise Level: 18 dBA minimum
  • Dimension: 150mm (W) x 86mm (H) x 140mm (D)/ 5.91" (W) x 3.39" (H) x 5.51" (D)
  • Certification: 80 PLUS Gold

    Protection
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection

    Connectors
  • 1 x 24 / 20-Pin motherboard connector (600mm)
  • 2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)
  • 2 x 8 / 6-Pin PCIe connector ("650mm" x 2)
  • 2 x 8 / 6-Pin PCIe connector ("650mm / 150mm")
  • 8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)
  • 6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector ("600mm / 150mm / 150mm / 150mm" x 2)

Features

Brand:
SilverStone
Color:
Black
Conditions:
New
Warranty:
5 Years
