Home Networking Cameras & Surveillance Sennheiser EW 122P G4 Camera-Mount Wireless Cardioid Lavalier Microphone System (A: 516 to 558 MHz)

Sennheiser EW 122P G4 Camera-Mount Wireless Cardioid Lavalier Microphone System (A: 516 to 558 MHz)


Brand:

Specifications

    Product Details
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Sennheiser
  • Model: EW 122P G4
  • Color: Black
      Specifications:
  • For Mobile Journalist, Videographer
  • ME 4 Cardioid Lav Mic
  • Rugged Bodypack Transmitter
  • Diversity Camera-Mount Receiver
  • 1680 Auto-Scan Frequencies
  • Advanced Controls for Flexible Use
  • Daylight-Readable Display
  • 8-Hour AA Batteries
  • Up to 12 Mics on Set / 330' Range
    System:
  • Wireless Technology: Analog UHF
  • Number of RF Channel Frequencies: 1680
  • Included Transmitters: 1 x Bodypack with Microphone
  • Diversity: Antenna Diversity
  • RF Frequency Band: A:516 to 558 MHz
  • RF Bandwidth: 42 MHz
  • Frequency Step Size: 25 kHz
  • Max Operating Range: 330' / 100.6 m (Line of Sight)
  • Max Transmitters per Band: 12
  • Deviation: 48 kHz (Peak)
  • Modulation: Wideband FM
     Receiver:
  • Receiver Type: Camera-Mount

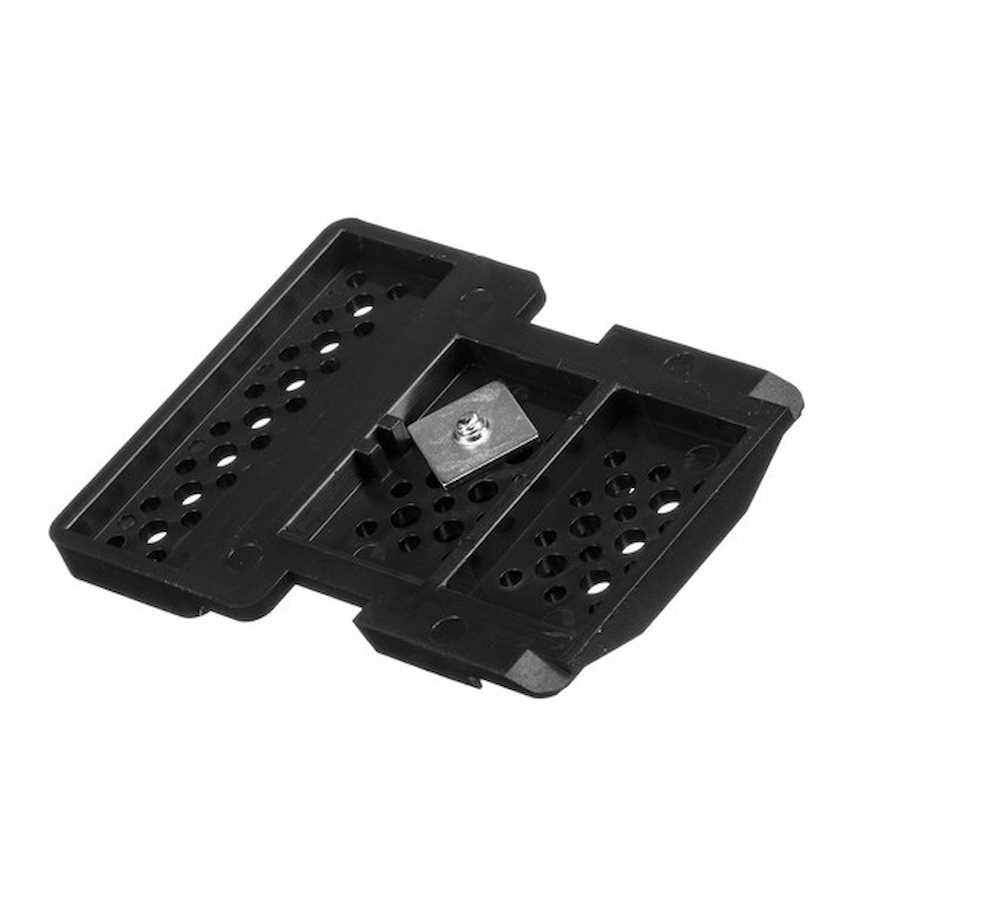

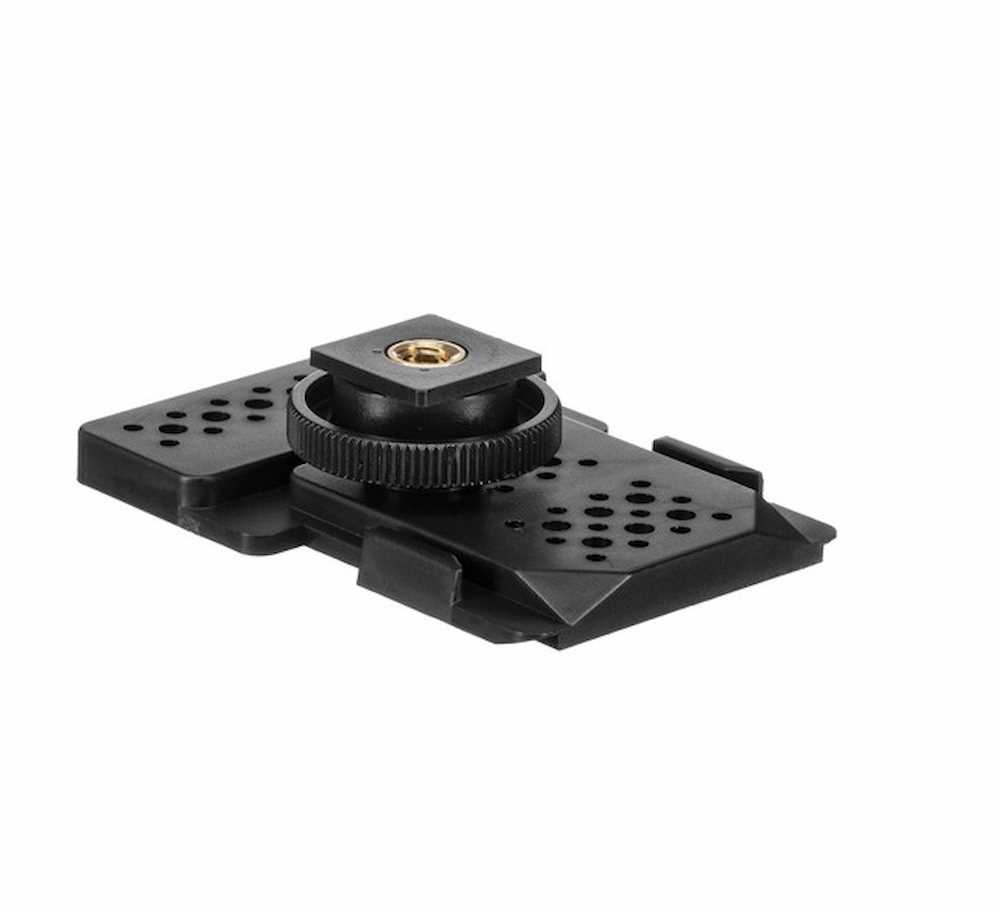

  • Mounting Options: Shoe-Mount (with Included Hardware)
  • Antenna: 1 x Flexible Whip, Fixed
  • Number of Audio Channels: 1
  • Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
  • Gain Range: 42 dB (6 dB Steps)
  • Audio Output Level: +12 dBu
  • Squelch: 5 to 25 dBµV
  • Adjacent Channel Isolation: >65 dB
  • Power Requirements: Battery
  • Battery Type: 2 x AA (Included), 1 x Sennheiser Accupack (Not Included)
  • Approx. Battery Life: 8 Hours (Alkaline)
  • Display & Indicators: 1 x Backlit LCD (Battery Status, Output Level, RF Level)
  • Housing: Metal
  • Operating Temperature: 14 to 131°F / -10 to 55°C
  • Dimensions: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
  • Weight: 5.6 oz / 160 g (with Batteries)

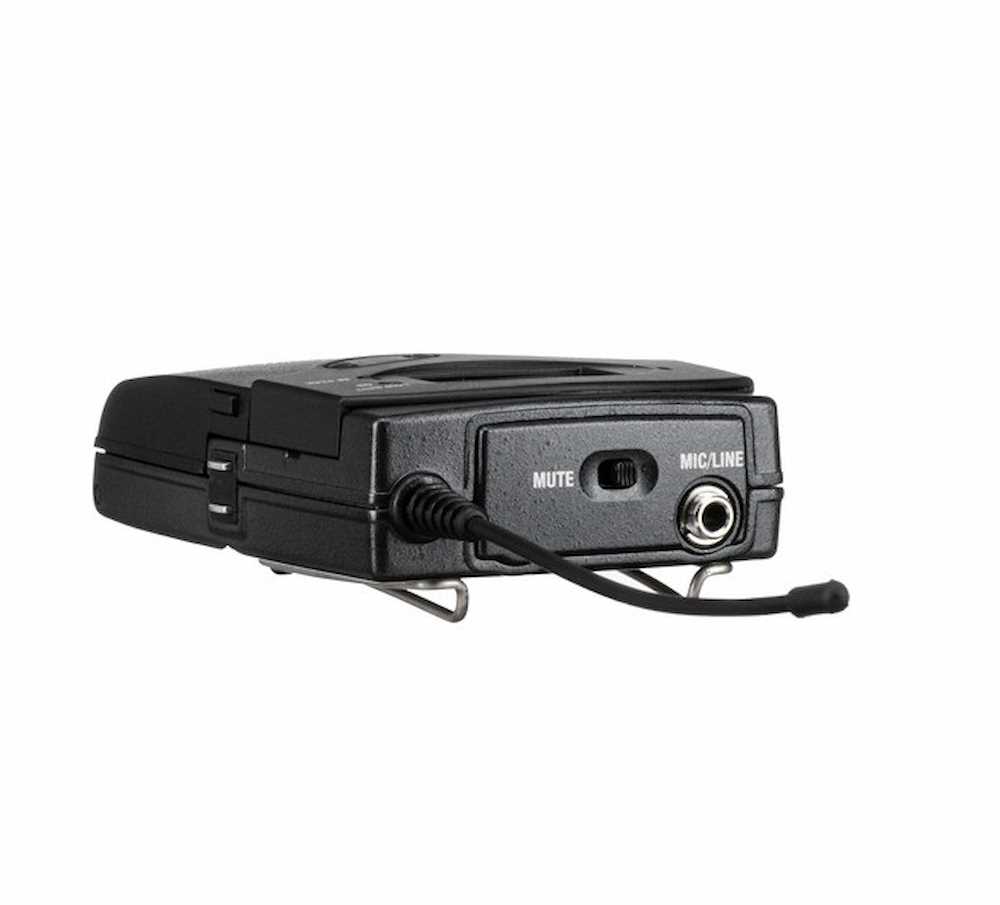

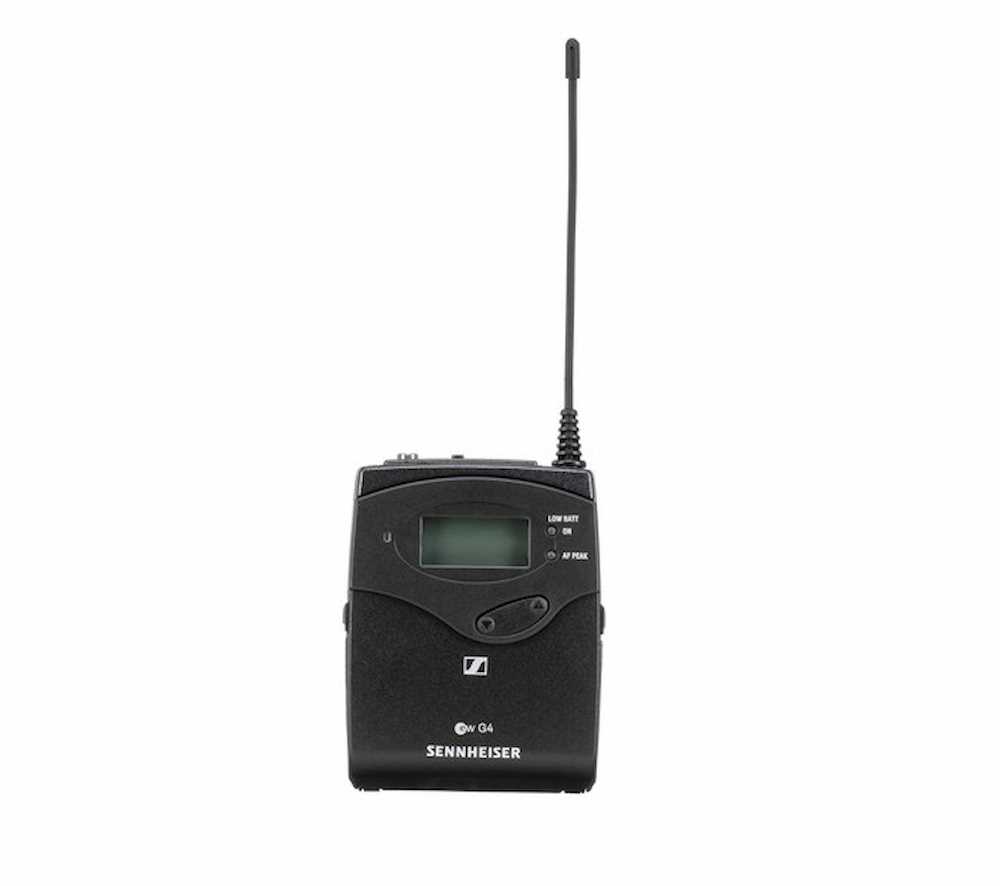

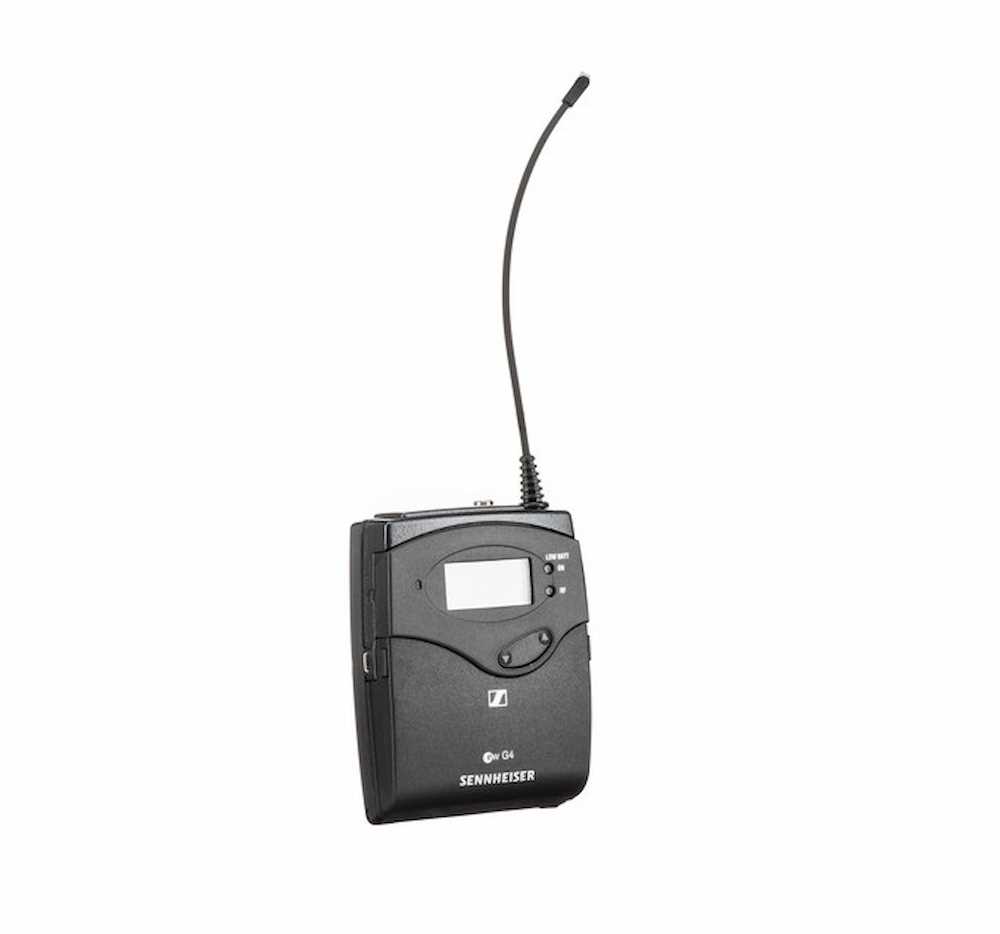

     Transmitter:
  • Transmitter Type: Bodypack
  • RF Output Power: 30 mW
  • Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  • Muting: Mute Switch
  • Audio Input Level: 3 V RMS (Max)
  • Gain Range: 60 dB (3 dB Steps)
  • Frequency Response: 80 Hz to 18 kHz (Mic), 25 Hz to 18 kHz (Line)
  • Sync Method: IR
  • Antenna: 1 x Flexible Whip, Fixed (Beltpack)
  • Power Requirements: Battery
  • Battery Type: 2 x AA (Included), 1 x Sennheiser Accupack (Not Included)
  • Approx. Battery Life: 8 Hours (Alkaline)
  • Display & Indicators: 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
  • Housing: Metal
  • Dimensions: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
  • Weight: 5.6 oz / 160 g (with Batteries)

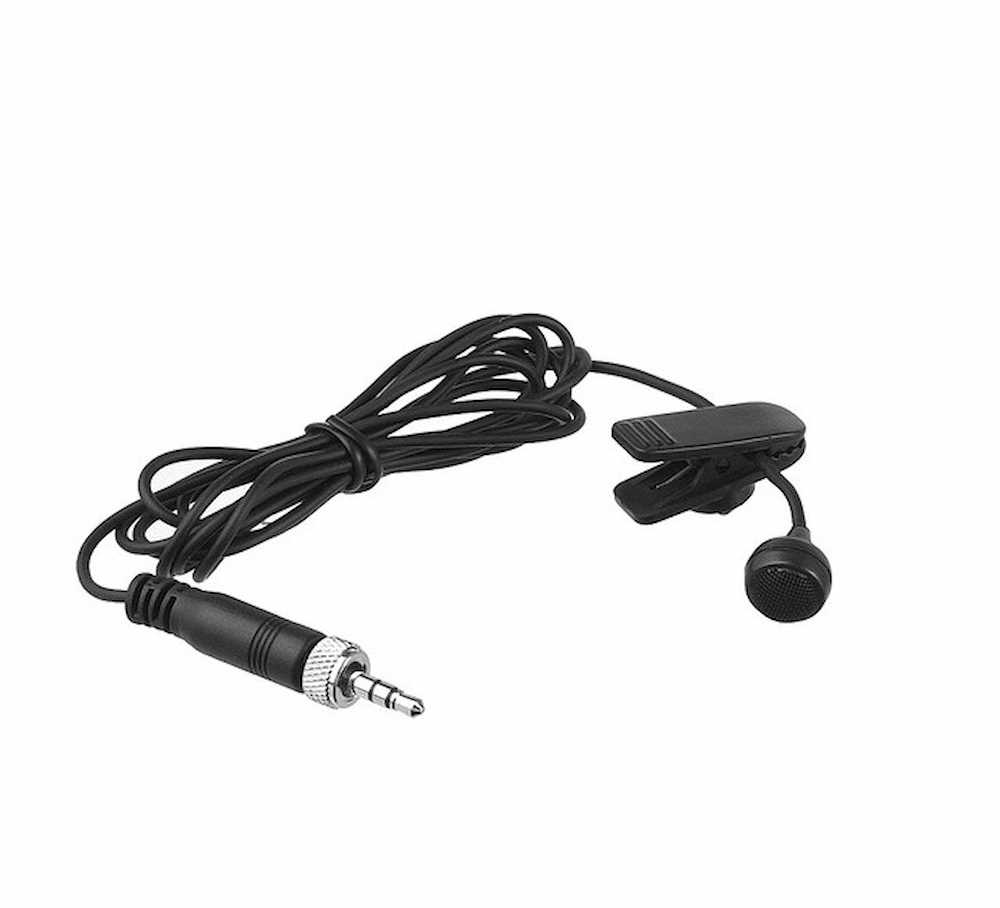

     Microphone:
  • Microphone Type: Lavalier
  • Sound Field: Mono
  • Operating Principle: Pressure Gradient
  • Capsule: Electret Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 50 Hz to 18 kHz
  • Equivalent Noise Level: 31 dB
  • Maximum SPL: 120 dB SPL Peak
  • Sensitivity: 20 mV/Pa
  • Output Connectors: 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  • Cable Length: 5.25' / 1.6 m
  • Operating Voltage: 7.5 V

Features

Brand:
Sennheiser
Conditions:
New
Warranty:
1 Year
