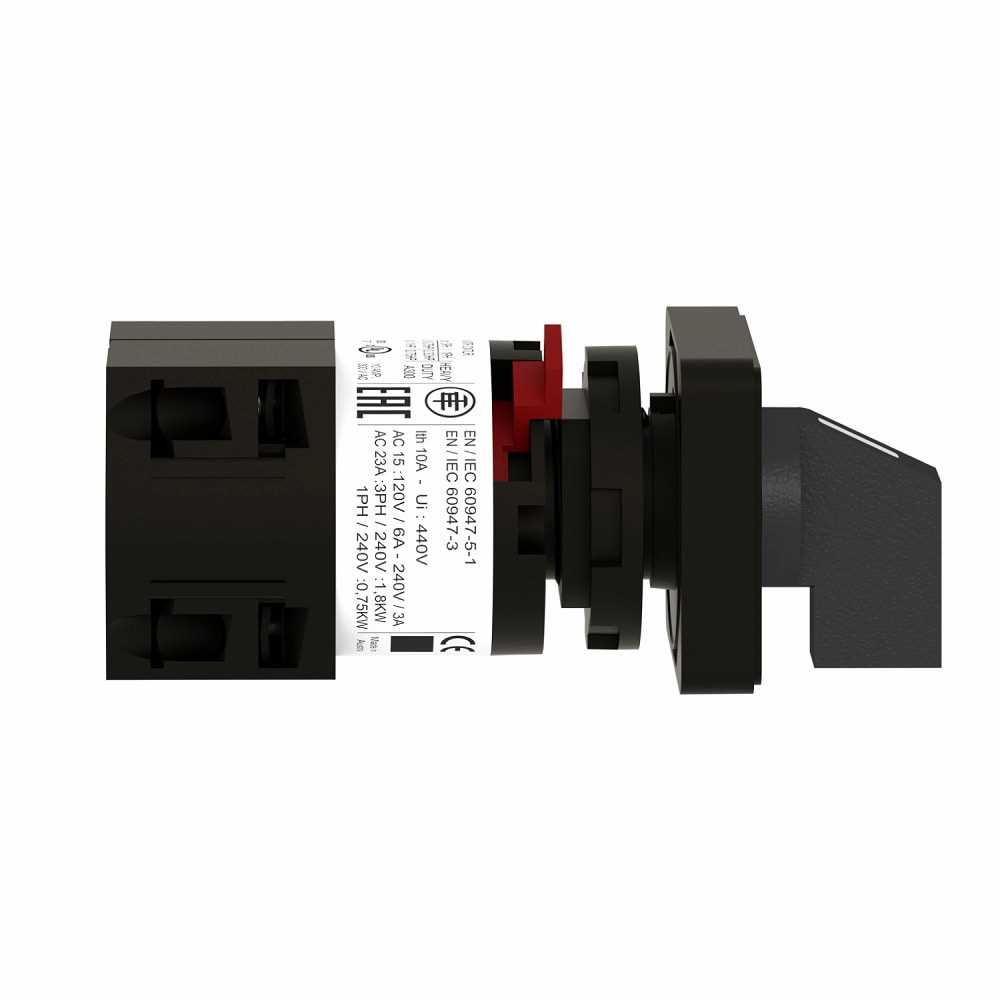

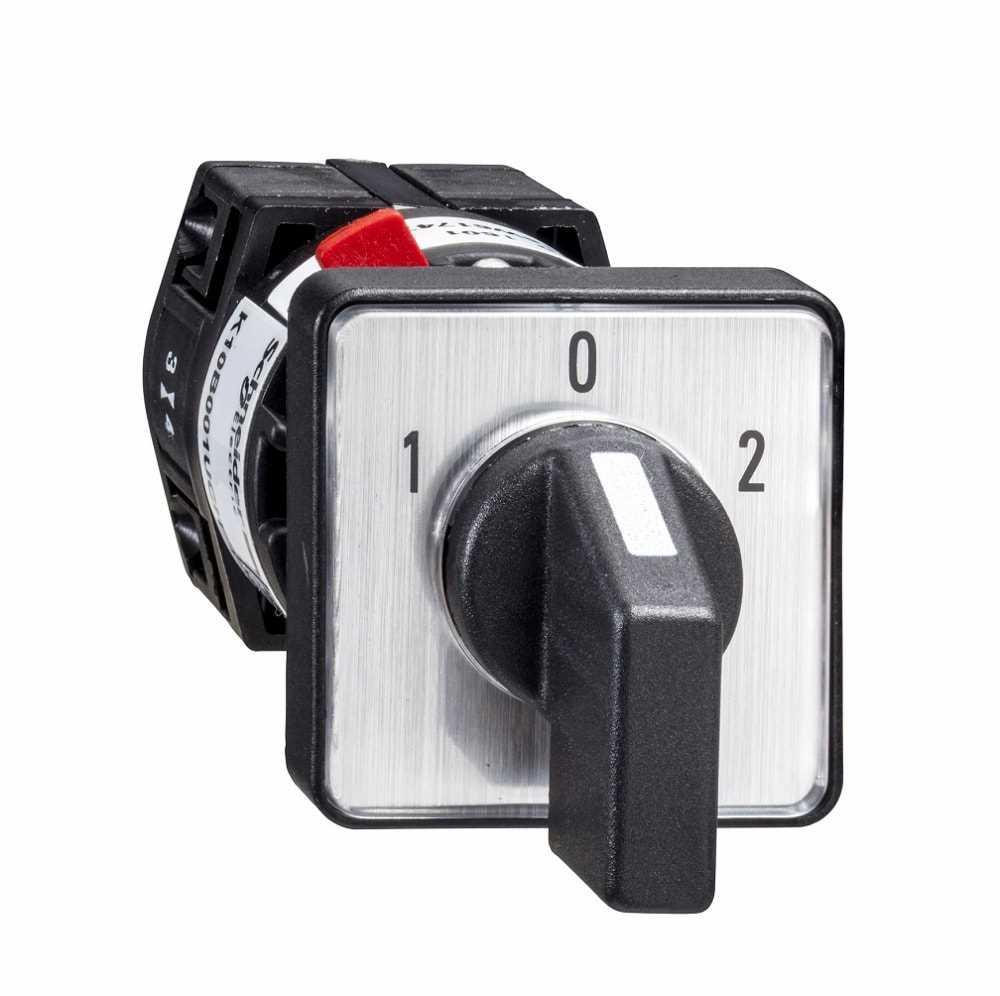

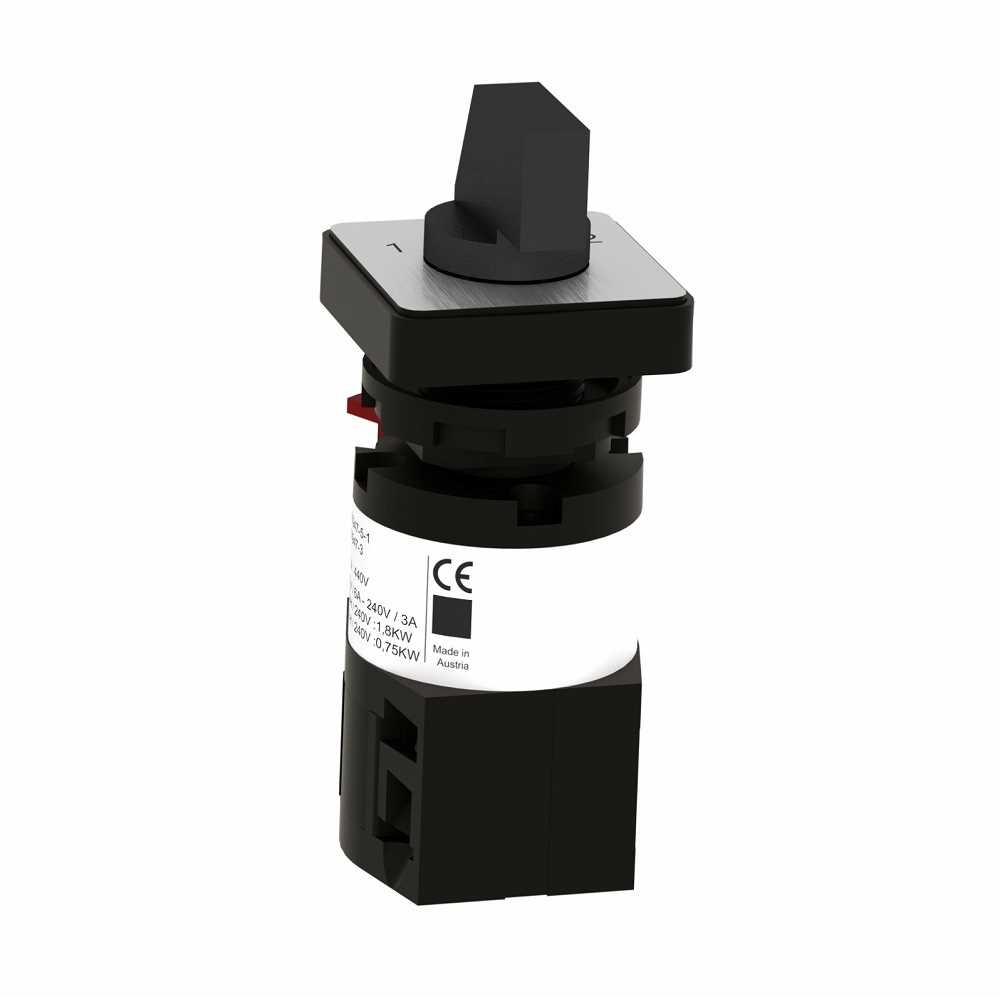

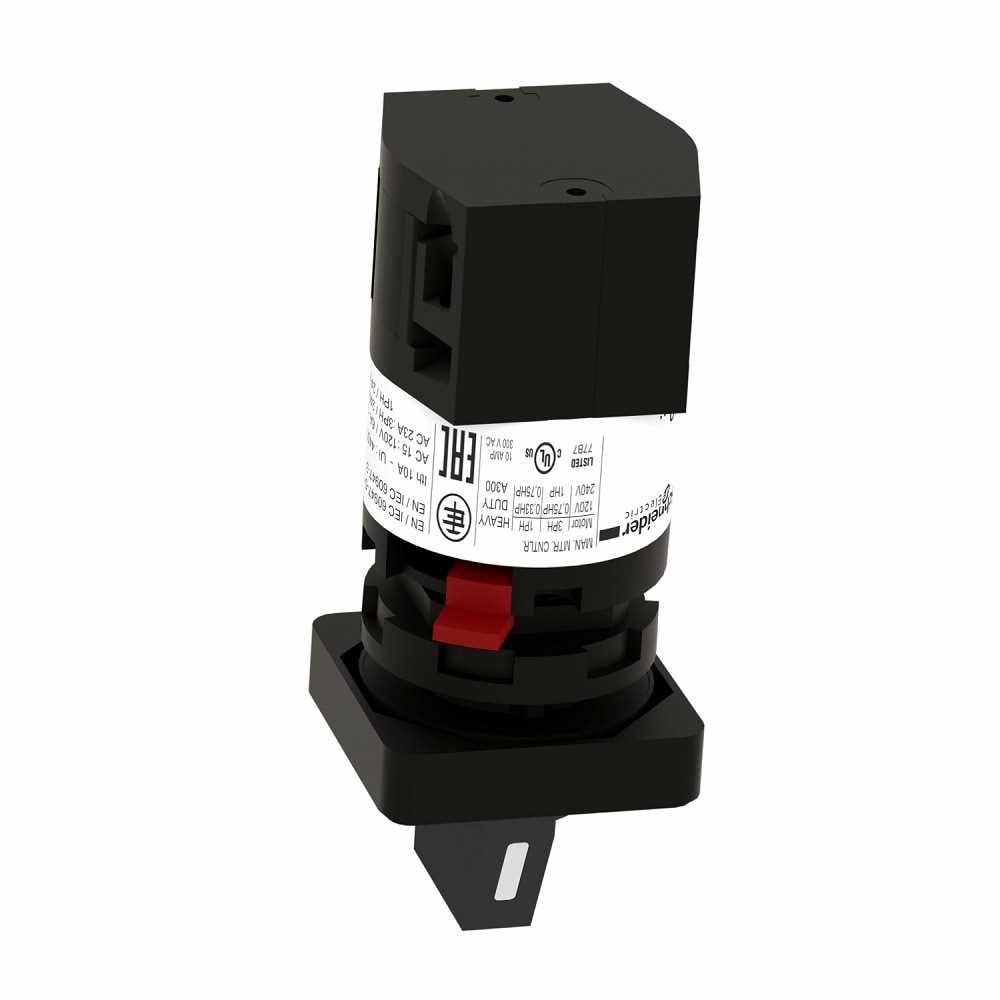

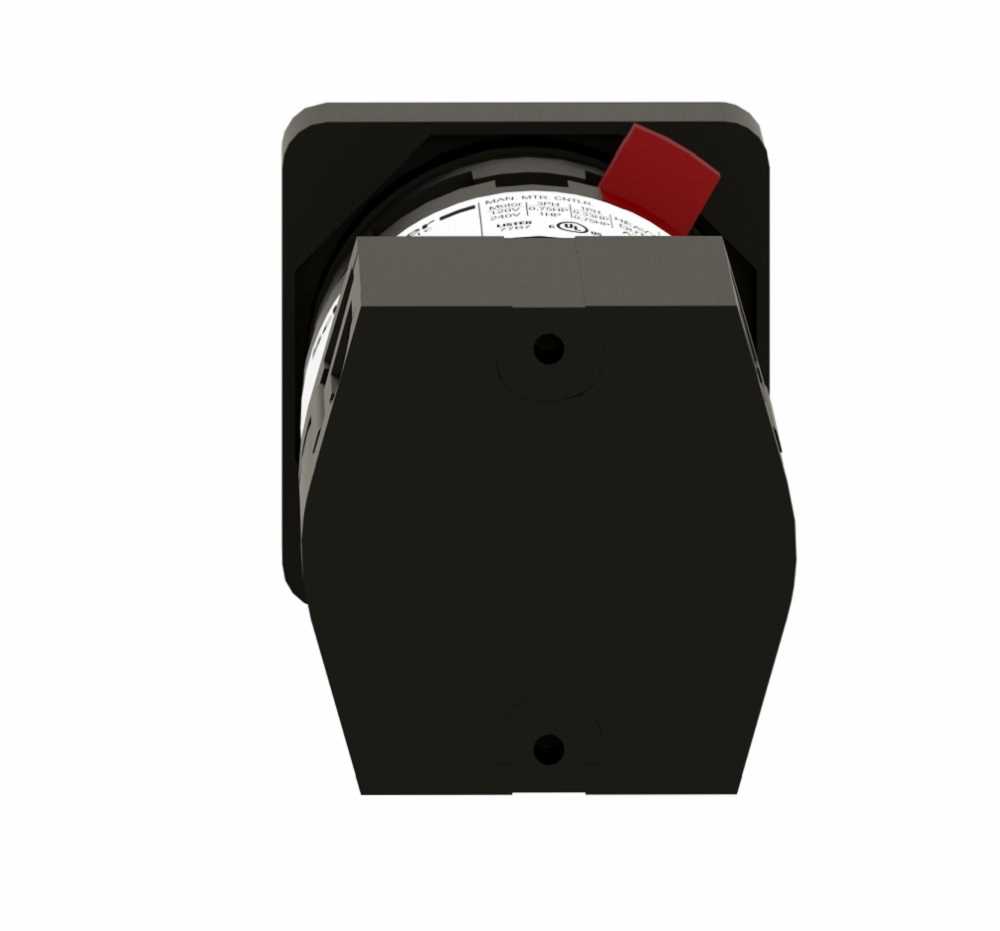

Schneider Electric K10B001UCH Complete cam Switch | Harmony K | Contact Block + Fixing Plate | 2 Pole With Off Position | 45 Degree Angle | 10A For 22mm | Black & Silver


Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • BrandSchneider Electric
  • Model: K10B001UCH

    SPECIFICATIONS
  • Range Of Product: Harmony K
  • Product Or Component Type: Complete Cam Switch
  • Component Name: K10
  • [ith] Conventional Free Air Thermal Current: 10 A
  • Product Mounting: Front Mounting
  • Fixing Mode: Ø 16 Or 22 Mm Hole
  • Cam Switch Head Type: With Front Plate 30 X 30 Mm
  • Type Of Operator: Black Handle
  • Rotary Handle Padlocking: Without
  • Presentation Of Legend: With Metallic Legend, 1 - 0 - 2 Black Marking
  • Cam Switch Function: Changeover Switch
  • Return: Without
  • Off Position: With Off Position
  • Poles Description: 1p
  • Switching Positions: Right: 0 Degree- 60 Degree, Left: 0 Degree - 300 Degree
  • Ip Degree Of Protection:
  • Contact Block: IP20
  • Operating Head: Ip65 Conforming To Iec 60529

    Complementary
  • Switching Angle: 60 °
  • [ui] Rated Insulation Voltage: 440 V (Pollution Degree 3) Conforming To Iec 60947-1
  • Rated Operational Power In W:
  • 1800 W Ac-23a, 220/240 V 3 Phases
  • 370 W Ac-23a, 110/120 V 1 Phase
  • 750 W Ac-23a, 220/240 V 1 Phase
  • Rated Power In Hp:
  • 1 Hp At 220/240 V Ac, 3 Phases
  • 0.33 Hp At 110/120 V Ac, 1 Phase
  • 0.75 Hp At 110/120 V Ac, 3 Phases
  • 0.75 Hp At 220/240 V Ac, 1 Phase
  • [ie] Rated Operational Current Ac:
  • 10 A At 400 V Ac-1
  • 10 A At 400 V Ac-21a
  • 3 A At 240 V Ac-15
  • 6 A At 120 V Ac-15
  • [ie] Rated Operational Current Dc:
  • 10 A At 24 V Resistive Load
  • 0.3 A At 220 V Resistive Load
  • 0.7 A At 110 V Resistive Load
  • Electrical Durability: 100000000 Cycles
  • Short-circuit Protection: 10 A Cartridge Fuse, Type Gg
  • [uimp] Rated Impulse Withstand Voltage: 4 Kv Conforming To Iec 60947-1
  • Contact Operation: Slow-break
  • Electrical Connection: Captive Screw Clamp Terminals, Clamping Capacity: 2 X 1.5 Mm²
  • Mechanical Durability: 1000000 Cycles
  • Cad Overall Width: 30mm
  • Cad Overall Height: 30mm
  • Cad Overall Depth: 76mm
  • Weight: 0.035 Kg

Features

Brand:
Schneider Electric
Color:
Black & Silver
Conditions:
New
Warranty:
1 Year
