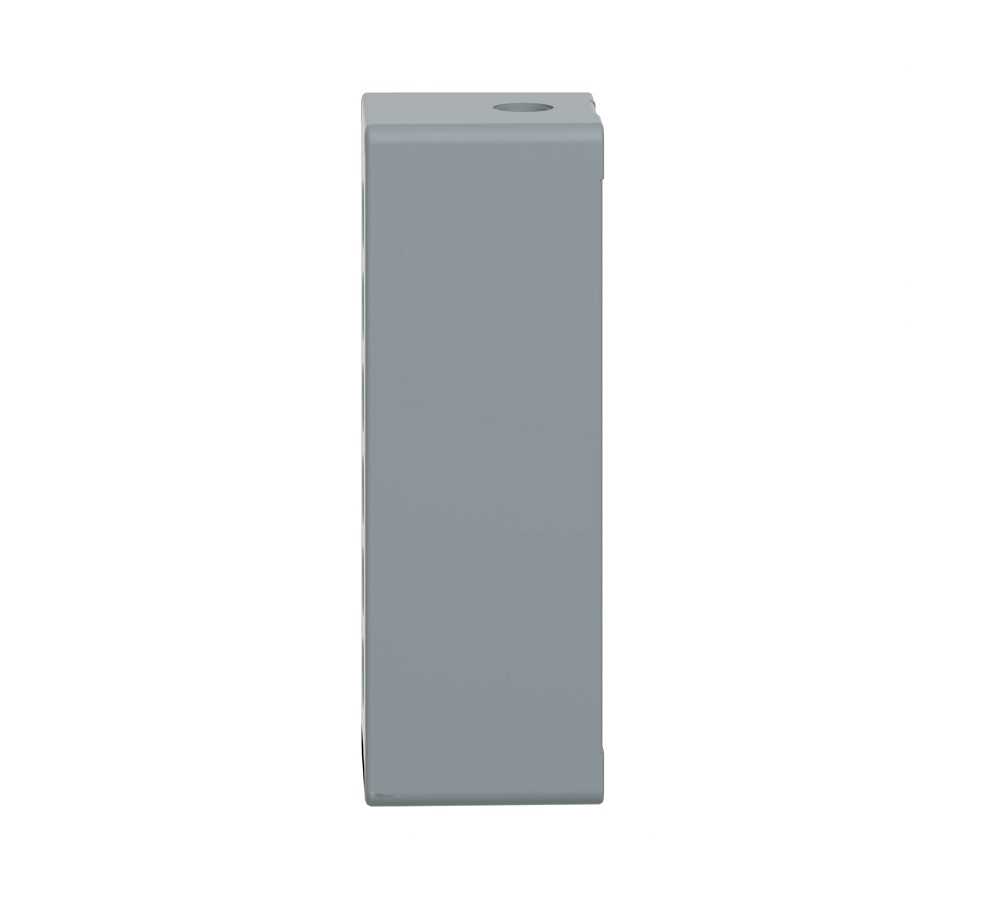

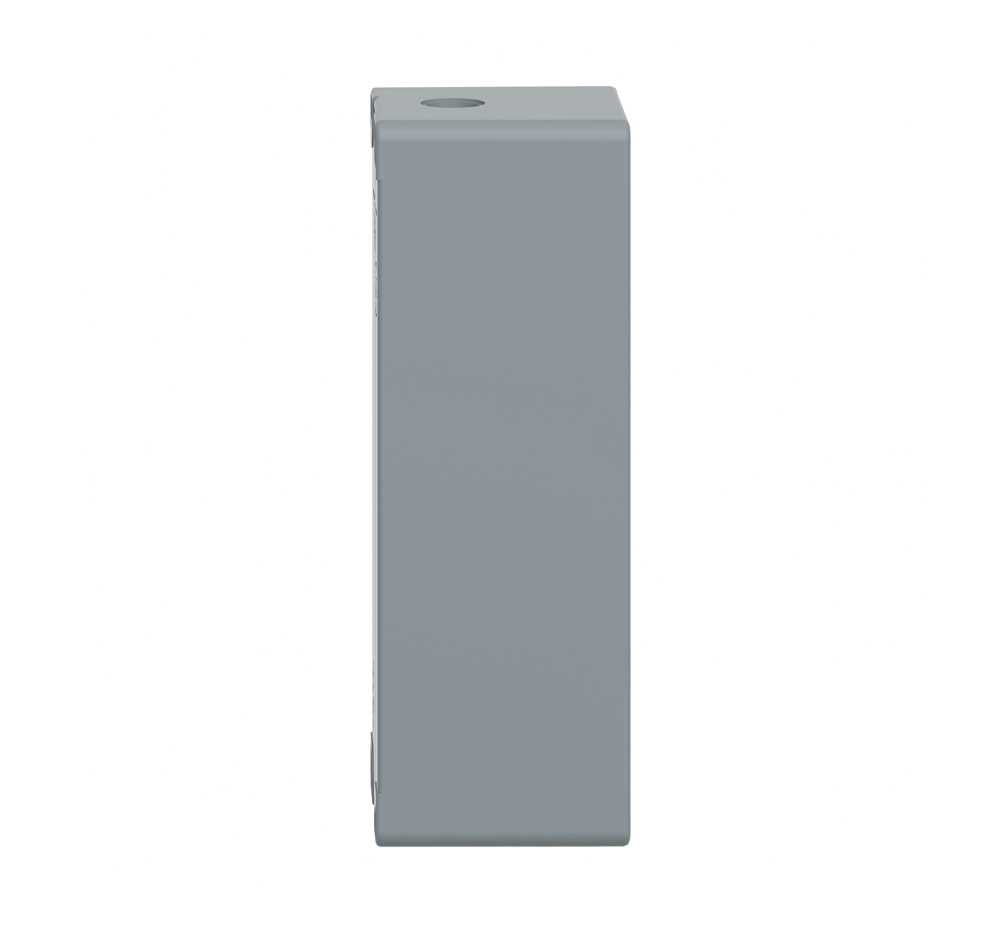

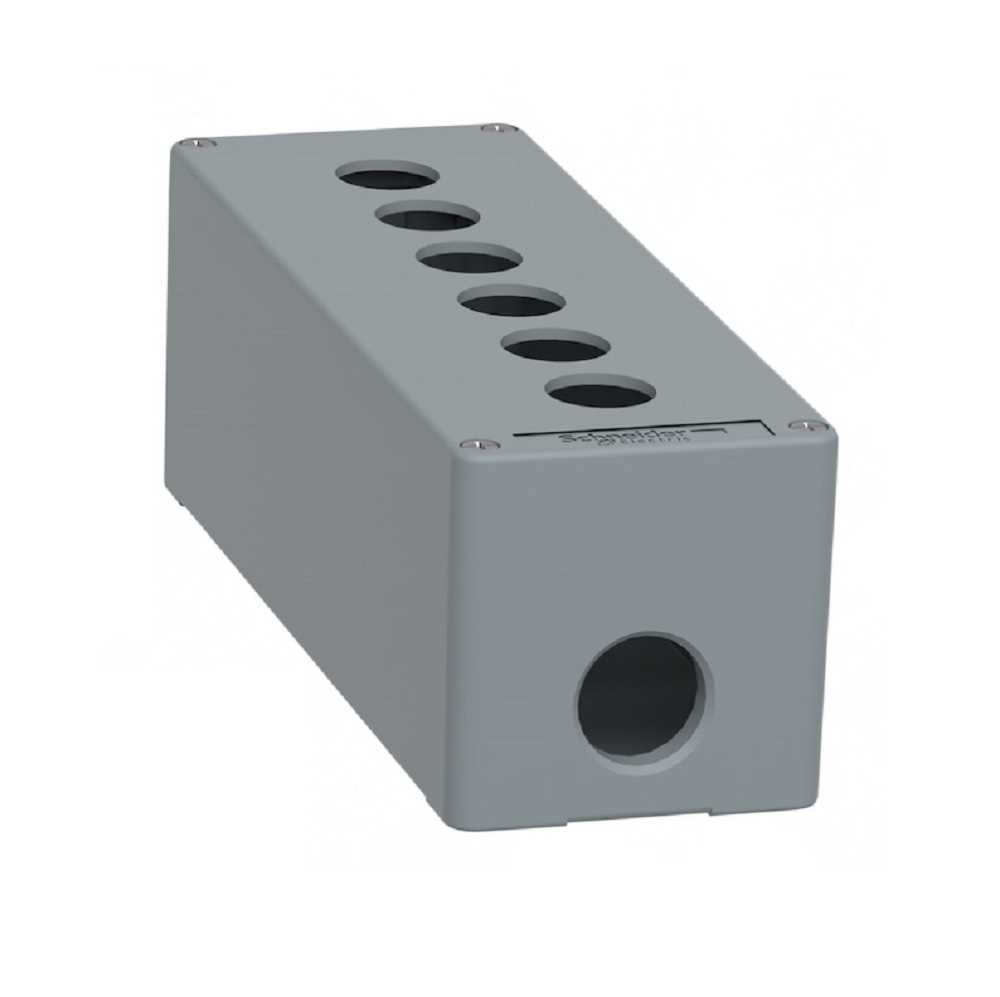

Home Networking Wireless Accessories Schneider Electric XAPM4506 | Harmony XAP/ XB2 SL Empty Control Station | Zinc alloy | 6 cut-outs | 77mm (Blue)

Schneider Electric XAPM4506 | Harmony XAP/ XB2 SL Empty Control Station | Zinc alloy | 6 cut-outs | 77mm (Blue)


Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: XAPM4506

    SPECIFICATIONS
  • Range Of Product: Harmony XAP
  • Product Or Component Type: Die-cast empty control station
  • Device Short Name: XAPM
  • For Xb5 Ø 22 Mm Control And Signalling Units: For Ø 22 mm control and signalling units
  • front plate size: 80 x 220 mm
  • usable depth: 74.5 mm
  • number of cut-out: 6 cut-outs
  • colour of base of enclosure: Blue
  • colour of cover: Blue
  • material: Zinc alloy
  • cable entry: hole without blanking plug for cable gland, clamping capacity: 18 mm
  • Device mounting: Flush
  • IP degree of protection: IP65 conforming to IEC 60529
  • Complementary
  • number of vertical rows: 1
  • weight: 1.38 kg
  • Environment
  • protective treatment: TC
  • Ambient air temperature for storage: -40…70 °C
  • Ambient air temperature for operation -40…70 °C
  • Overvoltage category:
  • Class I conforming to IEC 60536
  • Class I conforming to NF C 20-030
  • Height: 8.8cm
  • Width: 13cm
  • Length: 23.3cm
  • Weight: 1.558kg

Features

Brand:
Schneider Electric
Color:
Blue
Conditions:
New
Warranty:
1 Year
