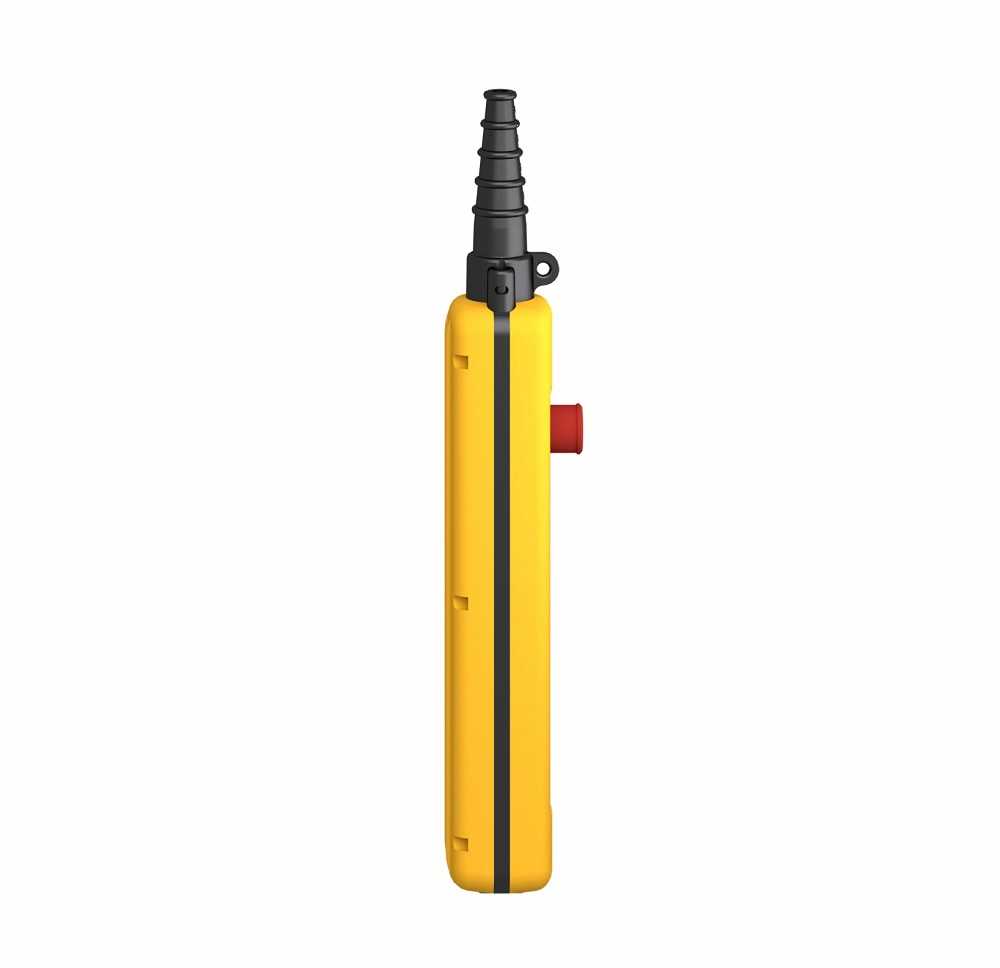

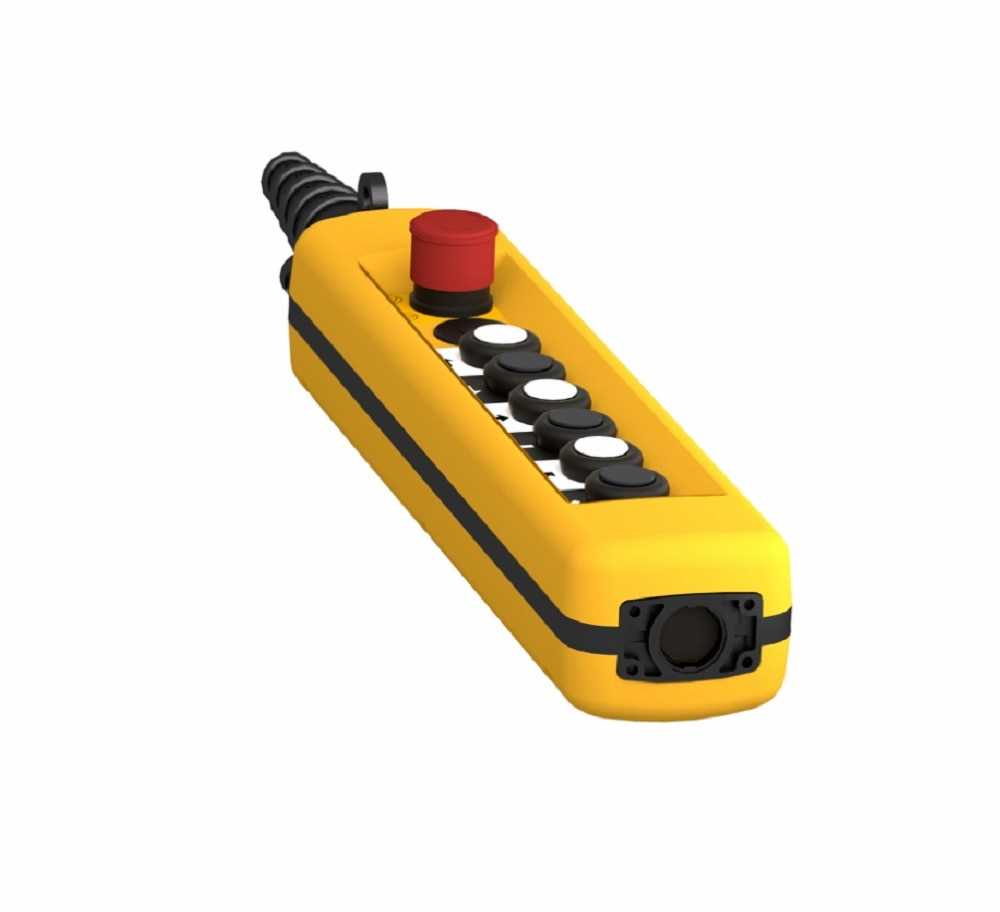

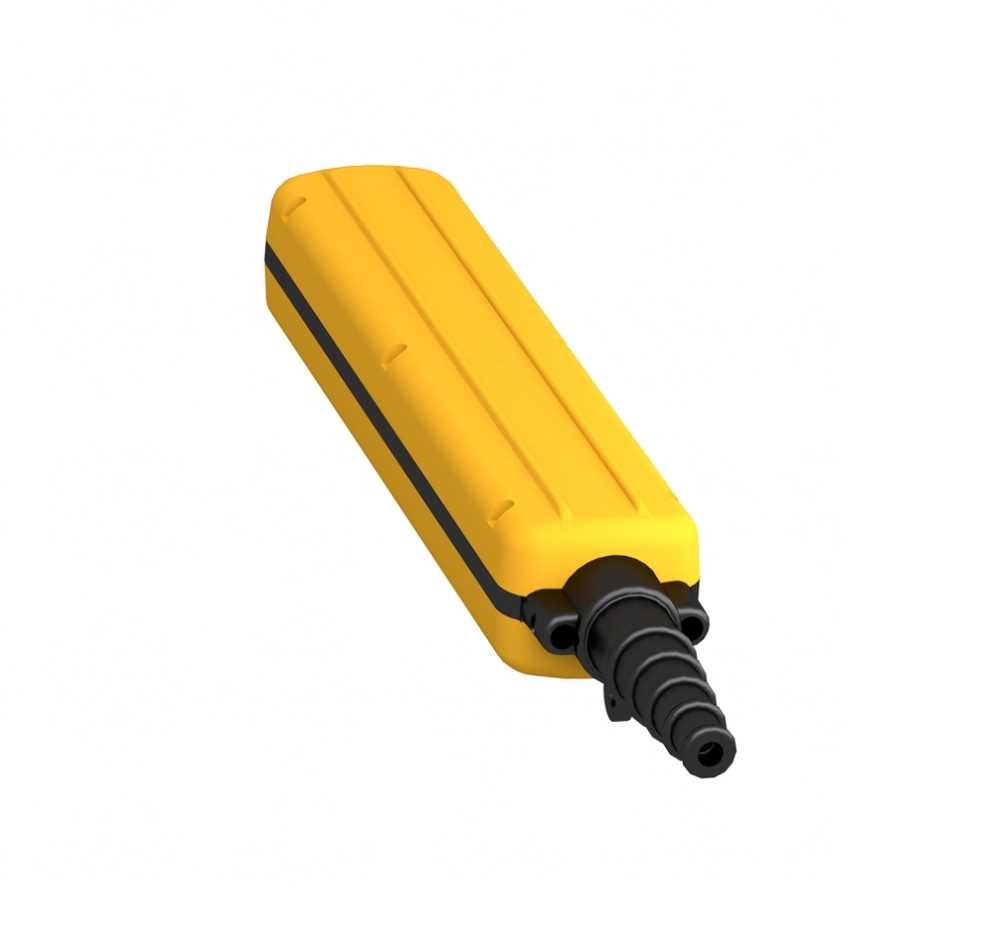

Schneider Electric XACA6913 Pendant Control Station | Harmony Xac 7 | Push Buttons 2no + 1nc | 1 Emergency Stop 40mm Trigger Blank 1nc | 2 Speeds (Yellow)


Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: XACA6913

    SPECIFICATIONS
  • Range Of Product: Harmony Xac
  • Product Or Component Type: Pendant Control Station
  • Device Short Name: Xaca

    Complementary
  • control station type: Double insulated
  • enclosure material: Polypropylene
  • electrical circuit type: Control circuit
  • Enclosure type: Complete ready for use
  • control station application: Control of 2-speed hoist motor
  • control station composition: 7 push-buttons + 1 emergency stop

    Compatibility
  • ZB2BE102 for emergency stop
  • ZB2BE102 + ZB2BE101 for each direction
  • XENG1191
  • mechanical interlocking: With mechanical interlocking between pairs
  • control station colour: Yellow

    Standards
  • EN/IEC 60947-5-1
  • EN/IEC 60204-32
  • CSA C22.2 No 14
  • UL 508
  • EN/IEC 60947-5-5
  • EN/ISO 13850: 2006
  • protective Treatment: TH
  • Ambient air temperature for operation: -25…70 °C
  • Ambient air temperature for storage: -40…70 °C
  • vibration resistance: 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
  • shock resistance: 100 gn conforming to IEC 60068-2-27
  • overvoltage category: Class II conforming to IEC 61140
  • IP degree of protection: IP65 conforming to IEC 60529
  • IK degree of protection: IK08 conforming to EN 50102
  • mechanical durability: 1000000 cycles
  • cable entry: Rubber sleeve with stepped entry 8…26 mm
  • Weight: 0.97 kg

Features

Brand:
Schneider Electric
Color:
Yellow
Conditions:
New
Warranty:
1 Year
