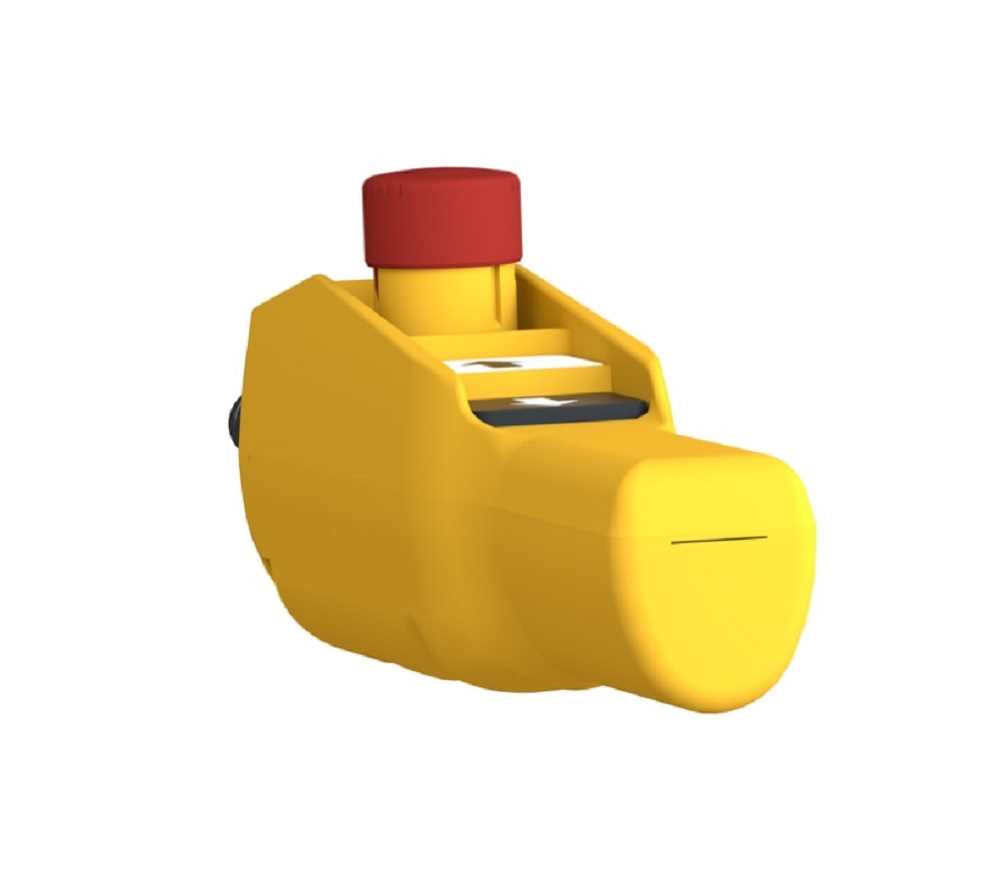

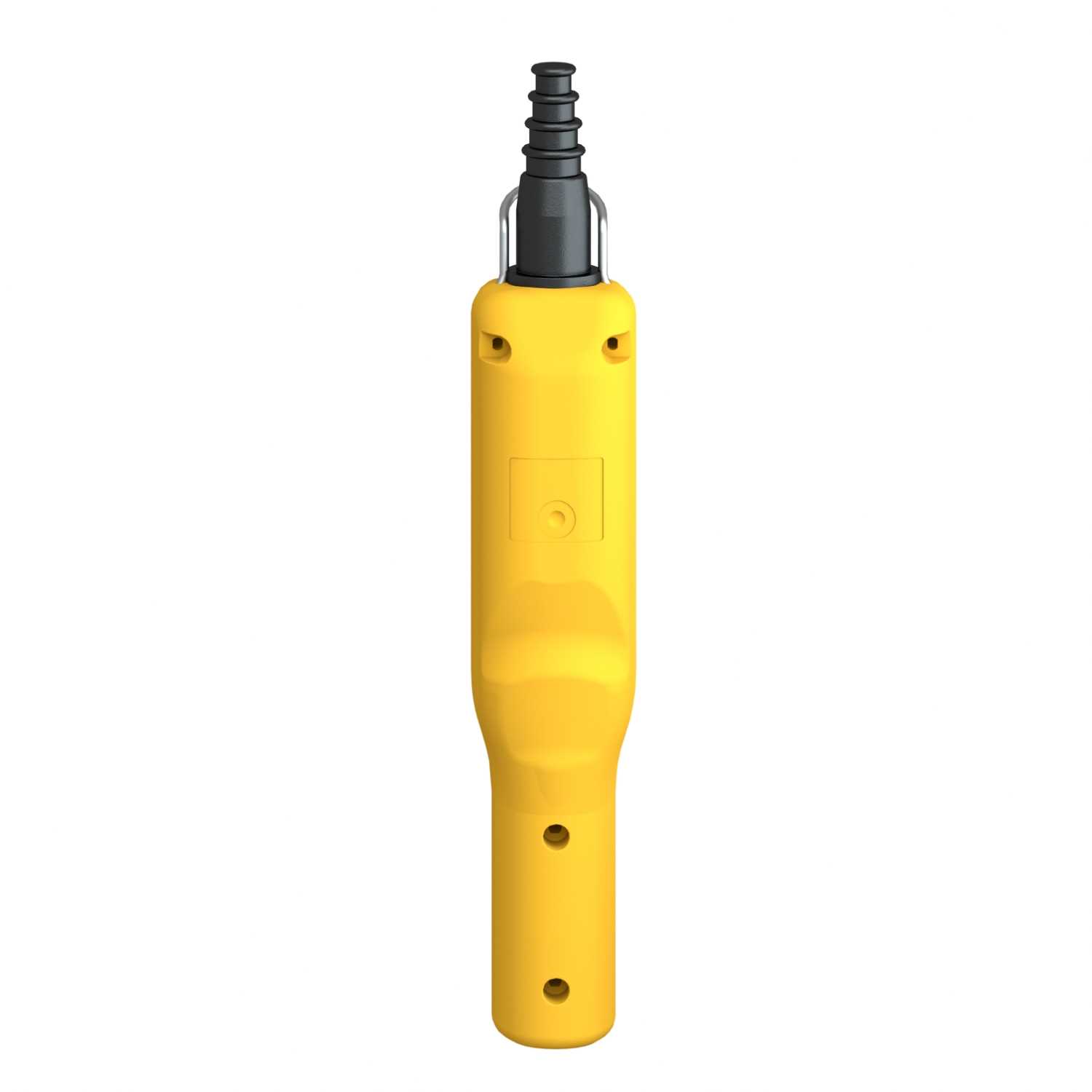

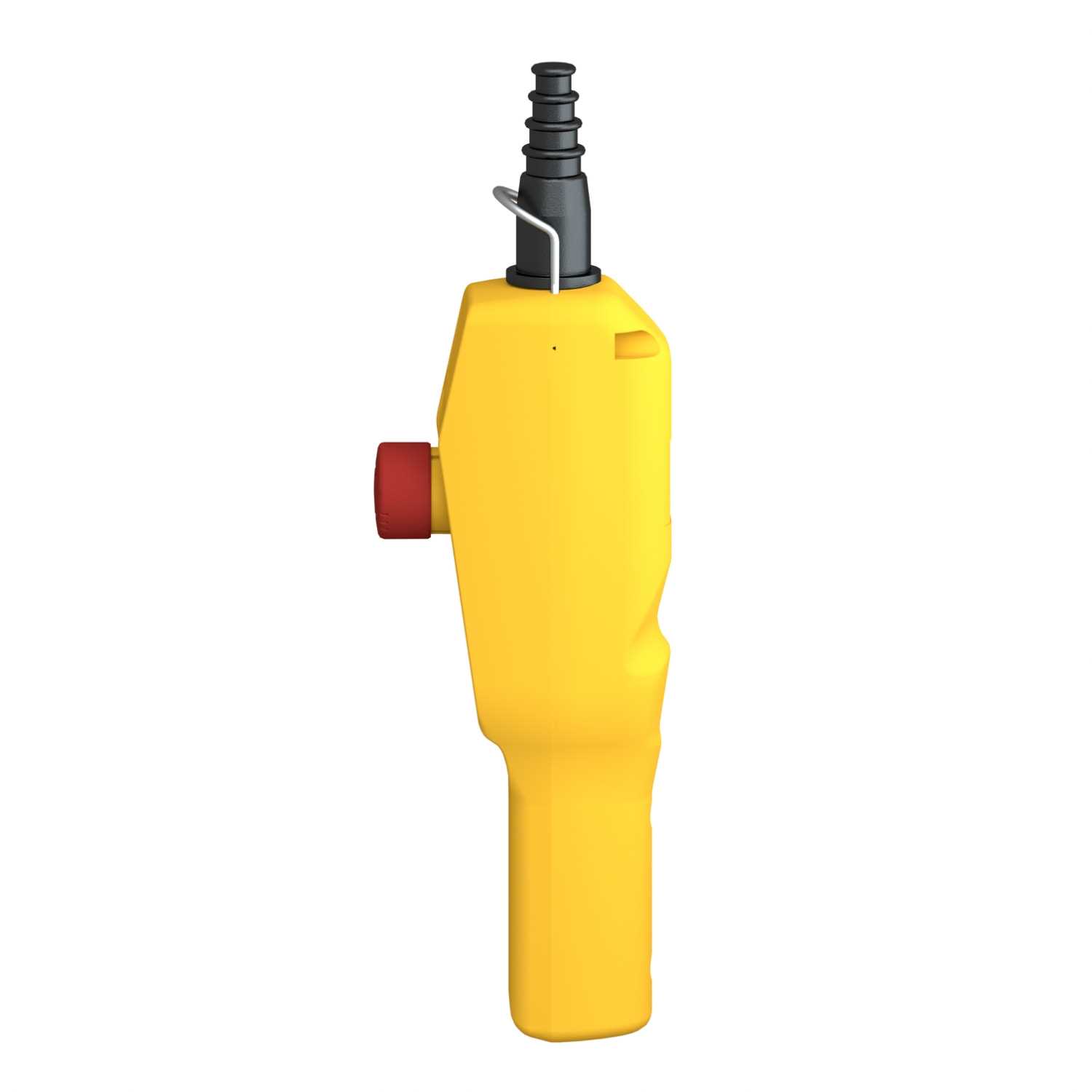

Schneider Electric XACA2013 Pendant Control Station | Harmony Xac | Pistol Grip | 2 Push Buttons With 1no | 1 Emergency Stop NC | Yellow & Black


Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: XACA2013

    SPECIFICATIONS
  • Range of Product: Harmony XAC
  • product or component type: Pendant control station
  • device short name: XACA pistol grip

    Complementary
  • control station type: Double insulated
  • enclosure material: Polypropylene
  • control Type: Intuitive
  • electrical circuit type: Control circuit
  • Enclosure type: Complete ready for use
  • control station application: Control of single speed hoist motor
  • control station composition: 2 push-buttons + 1 emergency stop
  • control button type: First push-button 1 NO raise, slow
  • Second push-button 1 NO lower, slow: Stop push-button Ø 30 mm 1 NC latching
  • compatibility: ZB2BE101 for each direction, ZB2BE102 for emergency stop
  • mechanical interlocking: With mechanical interlocking
  • control station colour: Yellow
  • Standards: CSA C22.2 No 14
  • EN/IEC 60947-5-1
  • EN/IEC 60204-32
  • UL 508
  • product certifications: CSA, UL
  • protective treatment, TH
  • Ambient air temperature for operation: -25…70 °C
  • Ambient air temperature for storage: -40…70 °C
  • vibration resistance: 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
  • shock resistance: 100 gn conforming to IEC 60068-2-27
  • overvoltage category: Class II conforming to IEC 61140
  • IP degree of protection: IP65 conforming to IEC 60529
  • IK degree of protection: IK08 conforming to EN 50102
  • mechanical durability: 1000000 cycles
  • Height: 5.5cm
  • Width: 9.0cm
  • Length: 30.0cm
  • Weight: 335.0g

Features

Brand:
Schneider Electric
Color:
Yellow
Conditions:
New
Warranty:
1 Year
