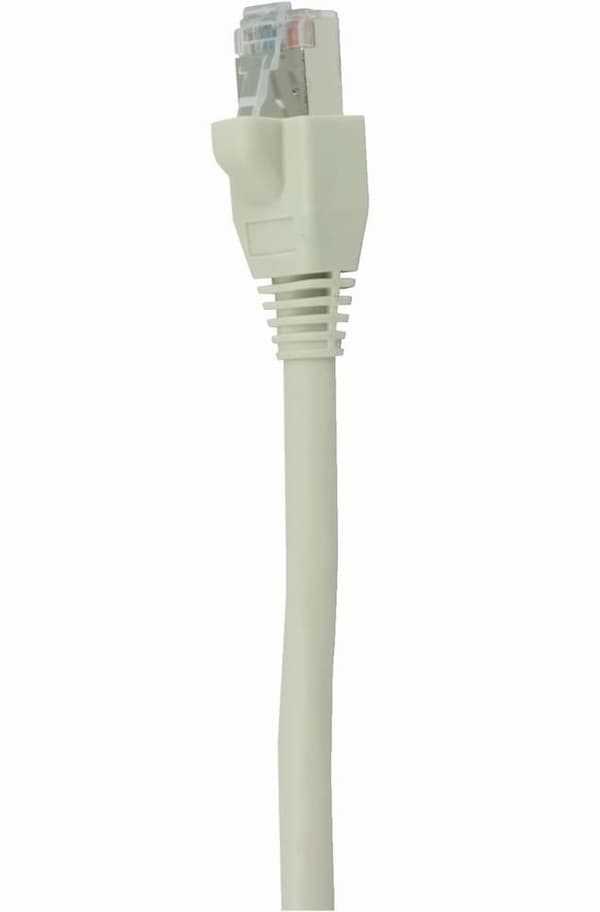

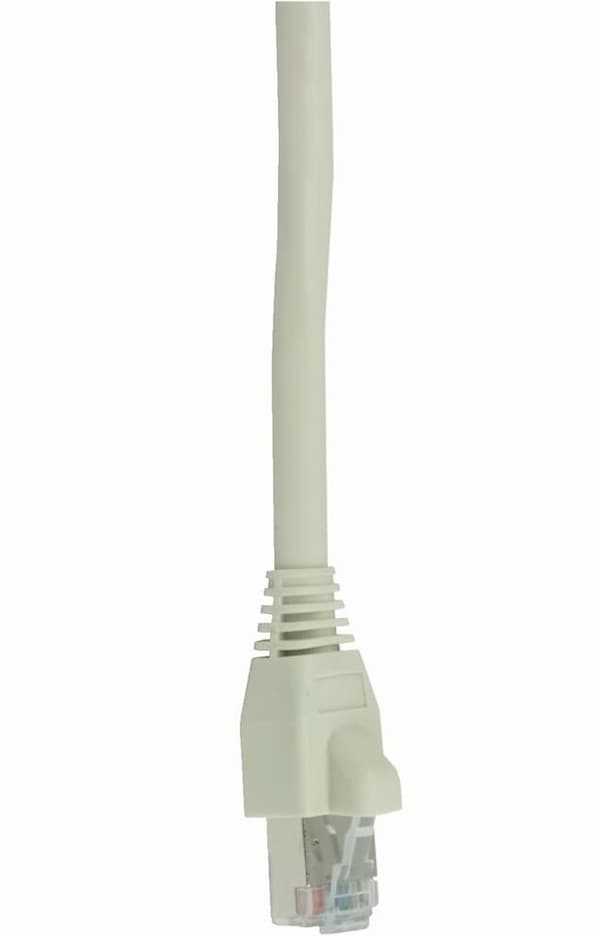

Schneider Electric SE-ACTPTG6ASBLS100BU Cat6A Patch Cord, LSZH Cable (10 Meter)


Specifications

   Product details:
  • 18 Months Warranty
  • Brand: Schneider Electric
  • Model: SE-ACTPTG6ASBLS100BU
  • Length: 10 Meter
   Specifcation:
   Complementary:
  • Type of cable: 4 pair cables
  • [In] Rated current: 2.1 A
  • Insulation resistance: 500 MOhm
  • Length (customizable value in configurator): 0…10 m
  • Communication network category: 6A
  • Contacts material: Nickel with 50µ gold-plated
  • Contact resistance: 20 mOhm
  • AWG gauge: AWG 26
  • Minimum number of matings: 750 cycles
  • Targeted region: Asia Pacific.
   Environment:
  • Flame Retardance: LSZH
  • Standards: TIA/EIA-568-B
  • ISO/IEC 11801 Ea
   Packing Units:
  • Package 1 Weight: 1.000 g
  • Package 1 Height: 1.000 mm
  • Package 1 width: 1.000 mm
  • Package 1 Length: 1.000 mm



Features

Brand:
Schneider Electric
Conditions:
New
Warranty:
18 Months
