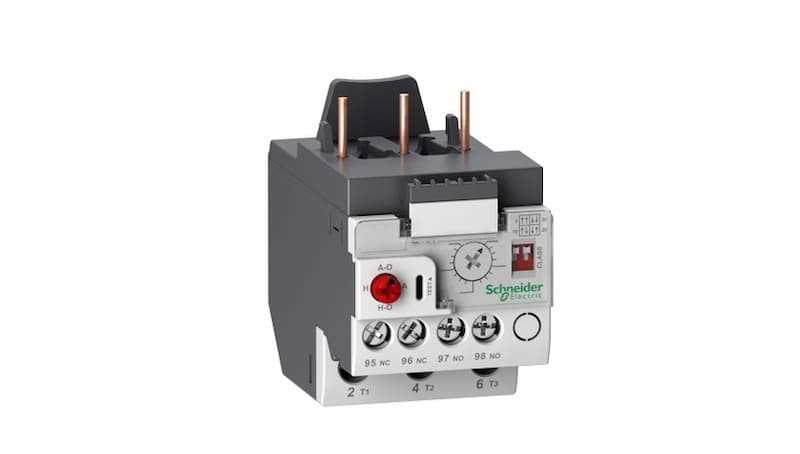

Schneider Electric LR9D01 Overload Relay TeSys LRD Motor Protection 0.1A To 0.5A 3 Phase Electronic Thermal (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: LR9D01
  • Color: White
      Specification:
      Main:
  • Range: TeSys
  • Product name: TeSys LRD
  • device short name: LR9D
  • Thermal overload class: Class 5…30
  • Thermal protection adjustment range: 0.1…0.5 A
  • maximum power consumption in W: 300 mW
  • Mounting support: Under contactor Plate, with specific accessories Rail, with specific accessories
      Complementary:
      [Ue] rated operational voltage:
  • 690 V for power circuit
  • 660 V for signalling circuit
      [Ui] rated insulation voltage:
  • Power circuit: 1000 V
  • Signalling circuit: 690 V
  • Tripping threshold: 1.25 In conforming to IEC 60947-4-1
      Tightening torque:
  • Control circuit: 0.8 N.m on screw clamp terminals
  • Power circuit: 3.1 N.m on screw clamp terminals
  • Height: 72.5 mm
  • Width: 45 mm
  • Depth: 79.9 mm
  • Weight: 180 g
      Environment:
  • IP degree of protection: IP20 front face conforming to IEC 60529
  • Ambient air temperature for operation: -25…70 °C conforming to IEC 60255-8
  • Ambient air temperature for storage: -55…80 °C
  • Operating altitude: 2000 m without derating
       Mechanical robustness:
  • Vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6
  • Shocks 11 ms: 15 gn conforming to IEC 60068-2-7:
  • Dielectric strength: 6 kV 50 Hz conforming to IEC 60255-5

Features

Brand:
Schneider Electric
Color:
White
Conditions:
New
Warranty:
1 Year
