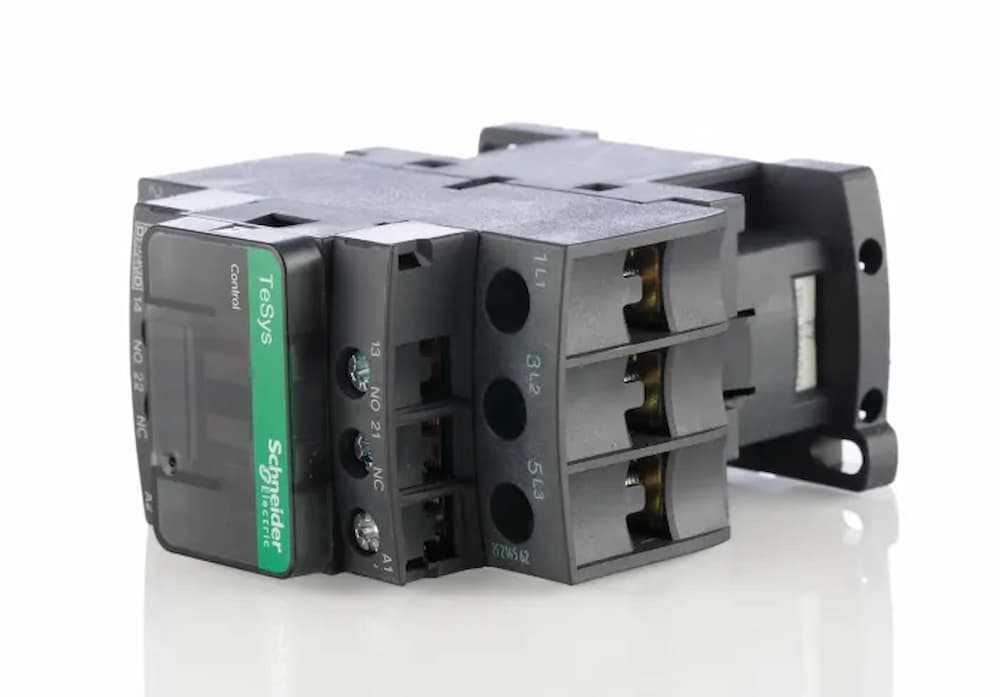

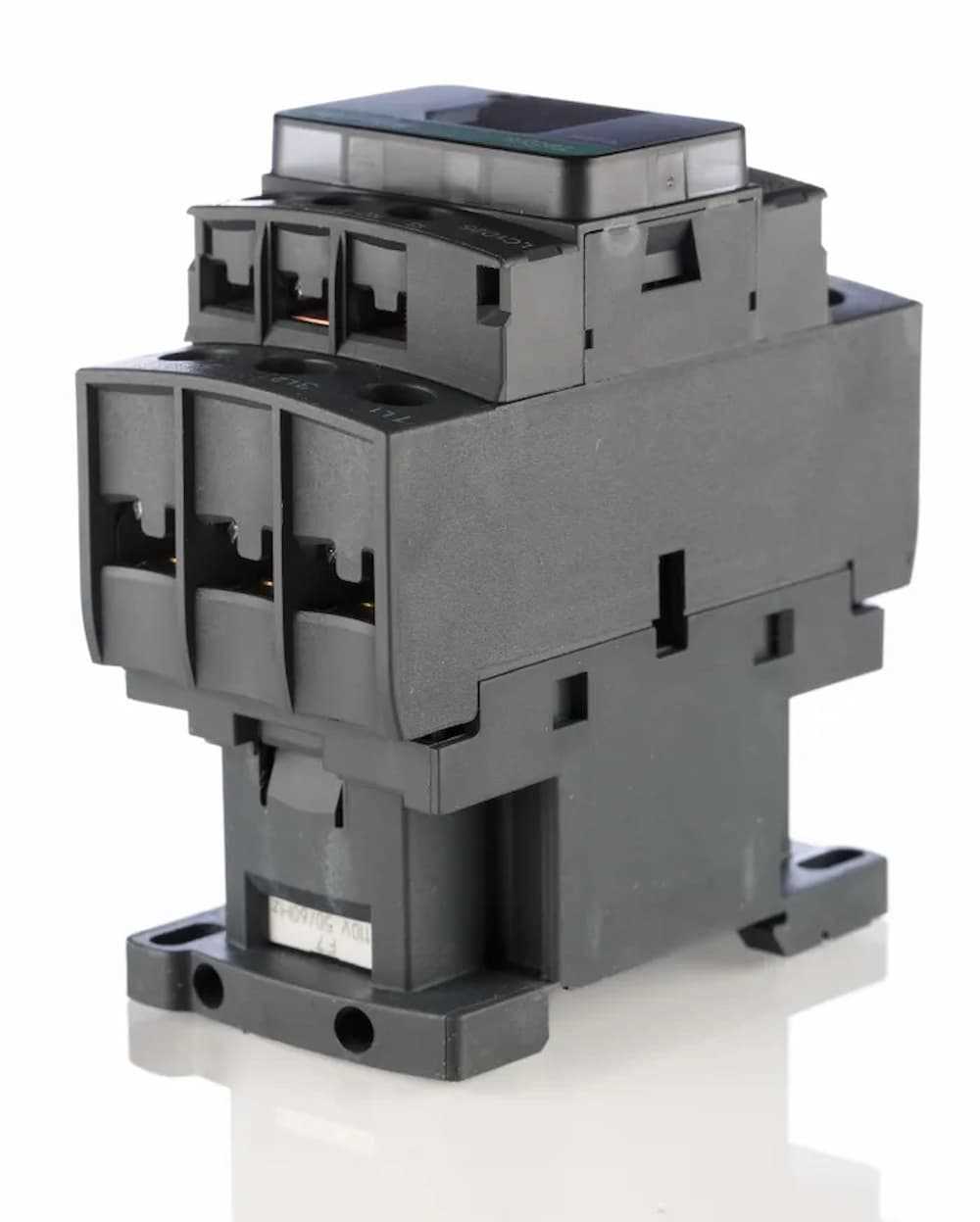

Schneider Electric LC1D09P7 TeSys D Contactor (Black)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: LC1D09P7
  • Color: Black
      Specifications:
      Main:
  • Range of product: TeSys Deca
  • Product or component type: Contactor
  • Device short name: LC1D
  • Contactor application: Resistive load,Motor control
  • Poles description: 3P
      Rated operational voltage:
  • Power circuit: <= 690 V AC 25...400 Hz
  • Power circuit: <= 300 V DC
      Rated operational current:
  • 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
  • Compatibility code: LC1D
  • Pole contact composition: 3 NO
  • Contact compatibility: M2
      Conventional free air thermal current:
  • 25 A (at 60 °C) for power circuit
  • 10 A (at 60 °C) for signalling circuit
  • Rated breaking capacity: 250 A at 440 V for power circuit conforming to IEC 60947
      Associated fuse rating:
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 25 A gG at <= 690 V coordination type 1 for power circuit
  • 20 A gG at <= 690 V coordination type 2 for power circuit
      Operating time:
  • 12...22 ms closing
  • 4...19 ms opening
  • Maximum operating rate: 3600 cyc/h 60 °C
      Auxiliary contacts type:
  • Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
  • type mirror contact 1 NC conforming to IEC 60947-4-1
  • Signalling circuit frequency: 25...400 Hz
  • Minimum switching voltage: 17 V for signalling circuit
  • Minimum switching current: 5 mA for signalling circuit
  • Insulation resistance: > 10 MOhm for signalling circuit







Features

Brand:
Schneider Electric
Color:
Black
Conditions:
New
Warranty:
1 Year
