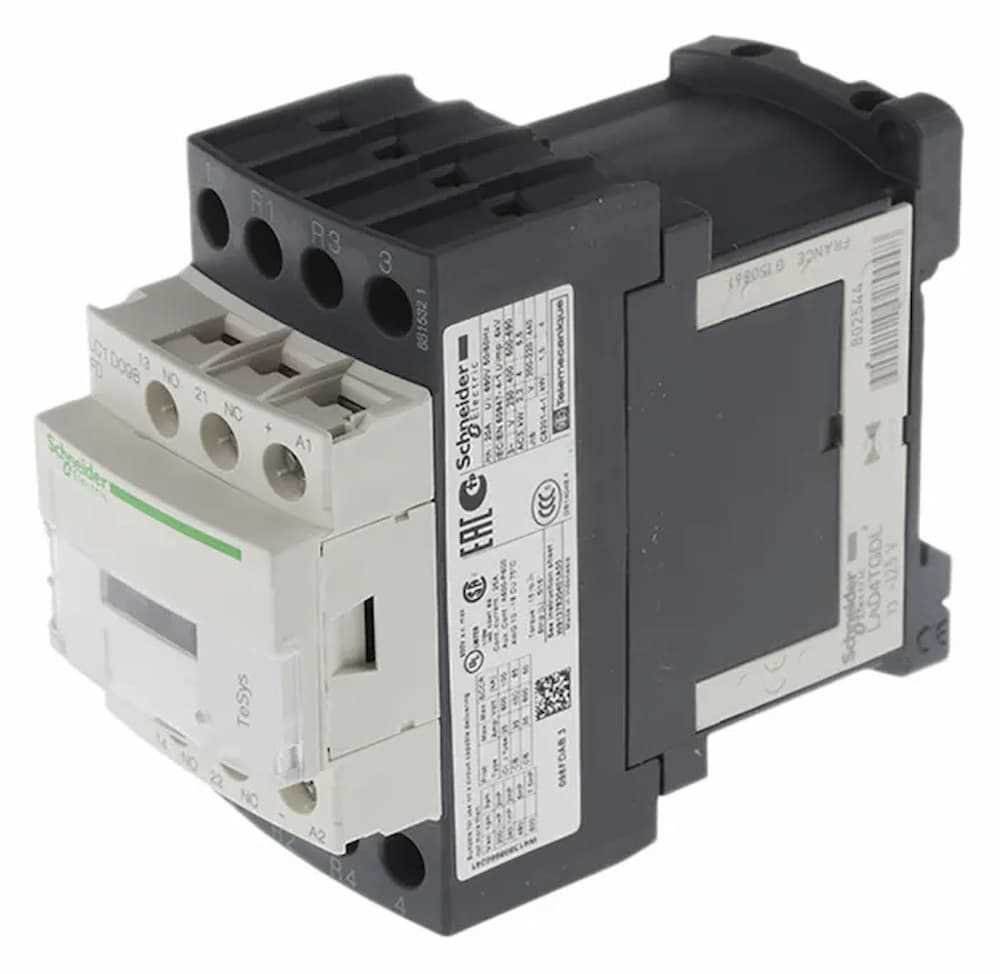

Schneider Electric LC1D098FD TeSys D Contactor (Black)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: LC1D098FD
  • Color: Black
      Specifications:
      Main:
  • Range of product: TeSys Deca
  • Product or component type: Contactor
  • Device short name: LC1D
  • Contactor application: Resistive load,Motor control
  • Poles description: 4P
      Rated operational voltage:
  • Power circuit: <= 690 V AC 25...400 Hz
  • Power circuit: <= 250 V DC
  • Rated operational current: 20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • Control circuit voltage: 110 V DC
  • Compatibility code: LC1D
  • Pole contact composition: 2 NO + 2 NC
  • Contact compatibility: M7
  • Protective cover: With
      Conventional free air thermal current:
  • 20 A (at 60 °C) for power circuit
  • 10 A (at 60 °C) for signalling circuit
      Irms rated making capacity:
  • 250 A at 440 V for power circuit conforming to IEC 60947
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • Rated breaking capacity: 250 A at 440 V for power circuit conforming to IEC 60947
      Associated fuse rating:
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 25 A gG at <= 690 V coordination type 1 for power circuit
  • 20 A gG at <= 690 V coordination type 2 for power circuit
  • Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit
  • Power dissipation per pole: 1.56 W AC-1
  • Rated impulse withstand voltage: 6 kV conforming to IEC 60947




Features

Brand:
Schneider Electric
Color:
Black
Conditions:
New
Warranty:
1 Year
