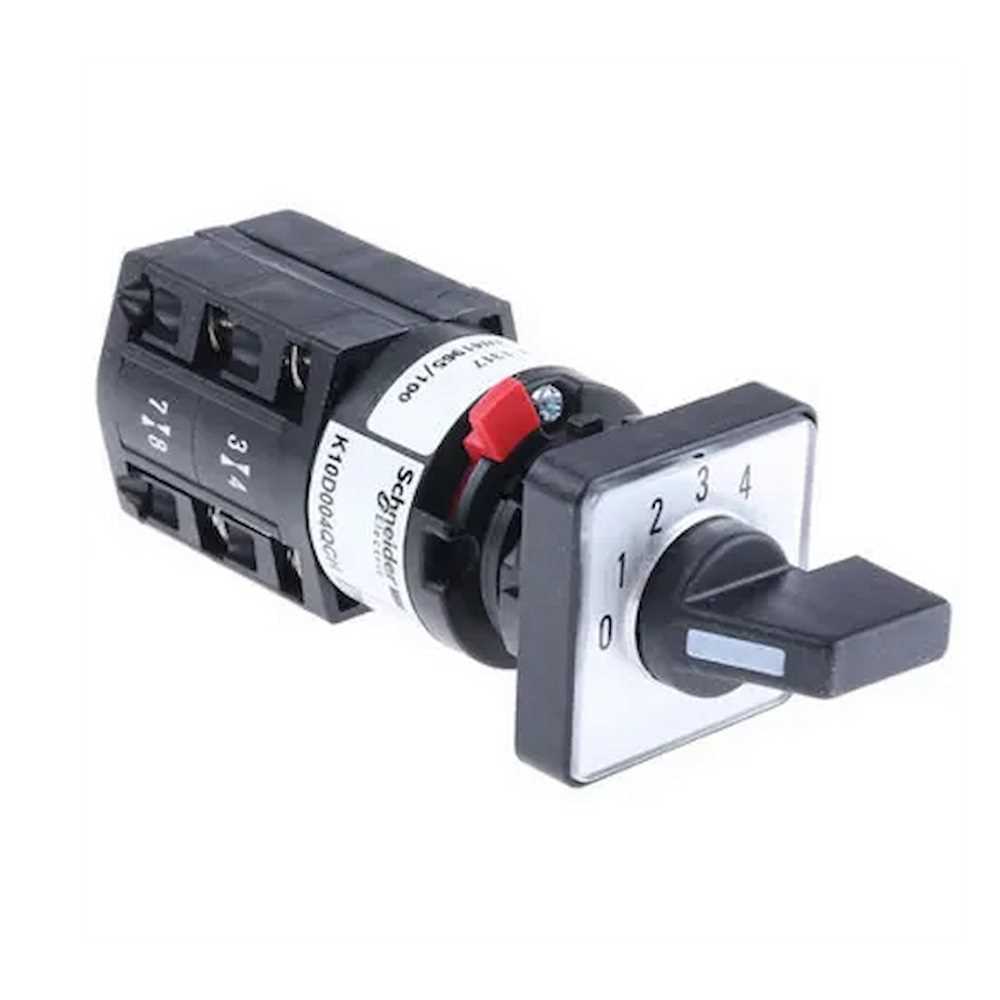

Schneider Electric K10D004QCH Complete Cam Switch | Harmony K | Stepping Switch | 30 X 30mm | 1P With Off Position | 30 Degree Angle | 10a/ Black Marked 0-1-2-3-4 For 16 Or 22mm | Black & Silver


Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • BrandSchneider Electric
  • Model: K10D004QCH

    SPECIFICATIONS
  • Range Of Product: Harmony K
  • Product Or Component Type: Complete Cam Switch
  • Component Name: K10
  • [ith] Conventional Free Air Thermal Current: 10 A
  • Product Mounting: Front Mounting
  • Fixing Mode: Ø 16 Or 22 Mm Hole
  • Cam Switch Head Type: With Front Plate 30 X 30 Mm
  • Type Of Operator: Black Handle
  • Rotary Handle Padlocking: Without
  • Presentation Of Legend: With metallic legend, 0 - 1 - 2 - 3 - 4 black marking
  • Cam Switch Function: Changeover Switch
  • Return: Without
  • Off Position: With Off Position
  • Poles Description: 1p
  • Switching Positions: Right: 270 Degree - 300 Degree - 330 Degree - 0 Degree - 30 Degree
  • Ip Degree Of Protection:
  • Contact Block: IP20
  • Operating Head: Ip65 Conforming To Iec 60529

    COMPLEMENTARY
  • Number Of Steps: 4
  • Switching Angle: 30 Degree
  • [ui] Rated Insulation Voltage: 440 V (Pollution Degree 3) Conforming To Iec 60947-1
  • Rated operational power in W:
  • 370 W AC-23A, 110/120 V 1 phase
  • 750 W AC-23A, 220/240 V 1 phase
  • rated power in hp
  • 0.33 hp at 110/120 V AC, 1 phase
  • 0.75 hp at 220/240 V AC, 1 phase
  • [Ie] rated operational current AC:
  • 10 A at 400 V AC-1
  • 10 A at 400 V AC-21A
  • 3 A at 240 V AC-15
  • 6 A at 120 V AC-15
  • [Ie] rated operational current DC:
  • 10 A at 24 V resistive load
  • 0.3 A at 220 V resistive load
  • 0.7 A at 110 V resistive load
  • Electrical durability: 100000000 cycles
  • Ahort-circuit protection: 10 A cartridge fuse, type gG
  • [Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
  • Contact operation: Slow-break
  • Electrical connection: Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
  • Mechanical durability: 1000000 cycles
  • CAD overall width: 30 mm
  • CAD overall height: 30 mm
  • CAD overall depth: 88 mm
  • Weight: 0.045kg

Features

Brand:
Schneider Electric
Color:
Black & Silver
Conditions:
New
Warranty:
1 Year
