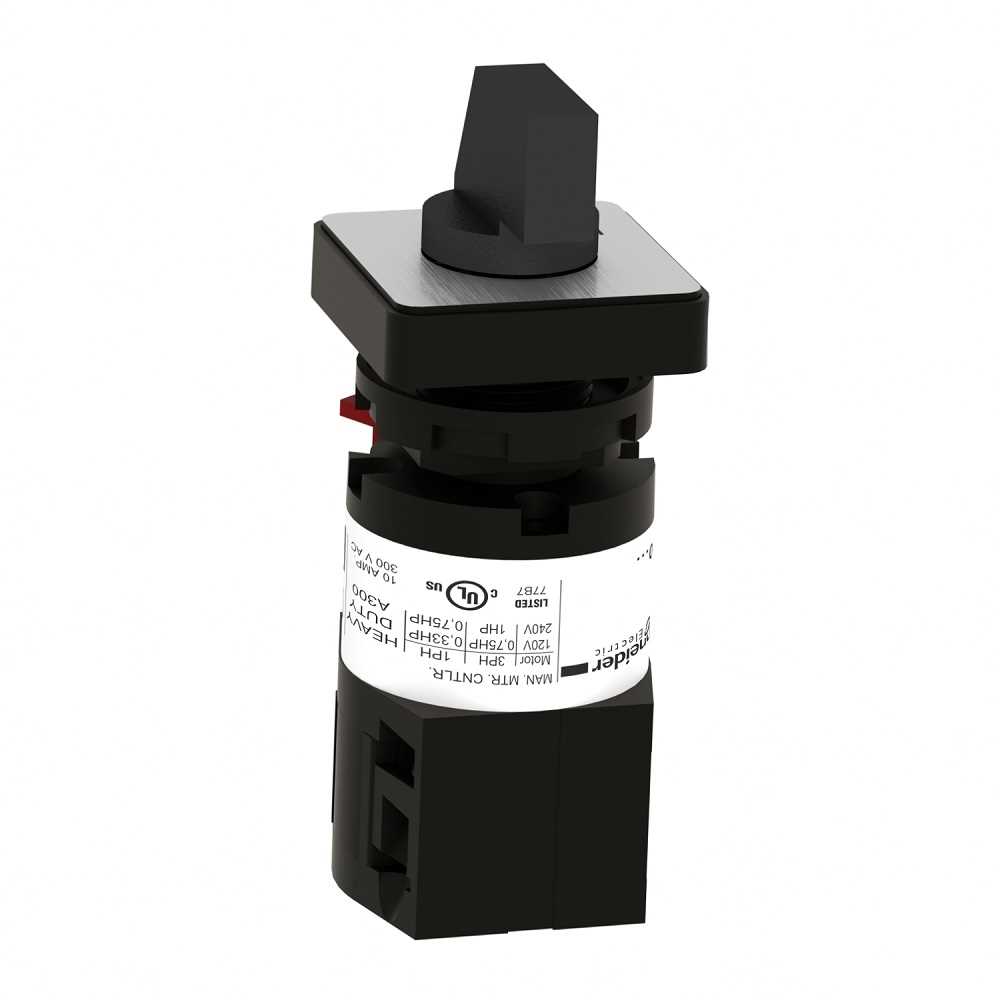

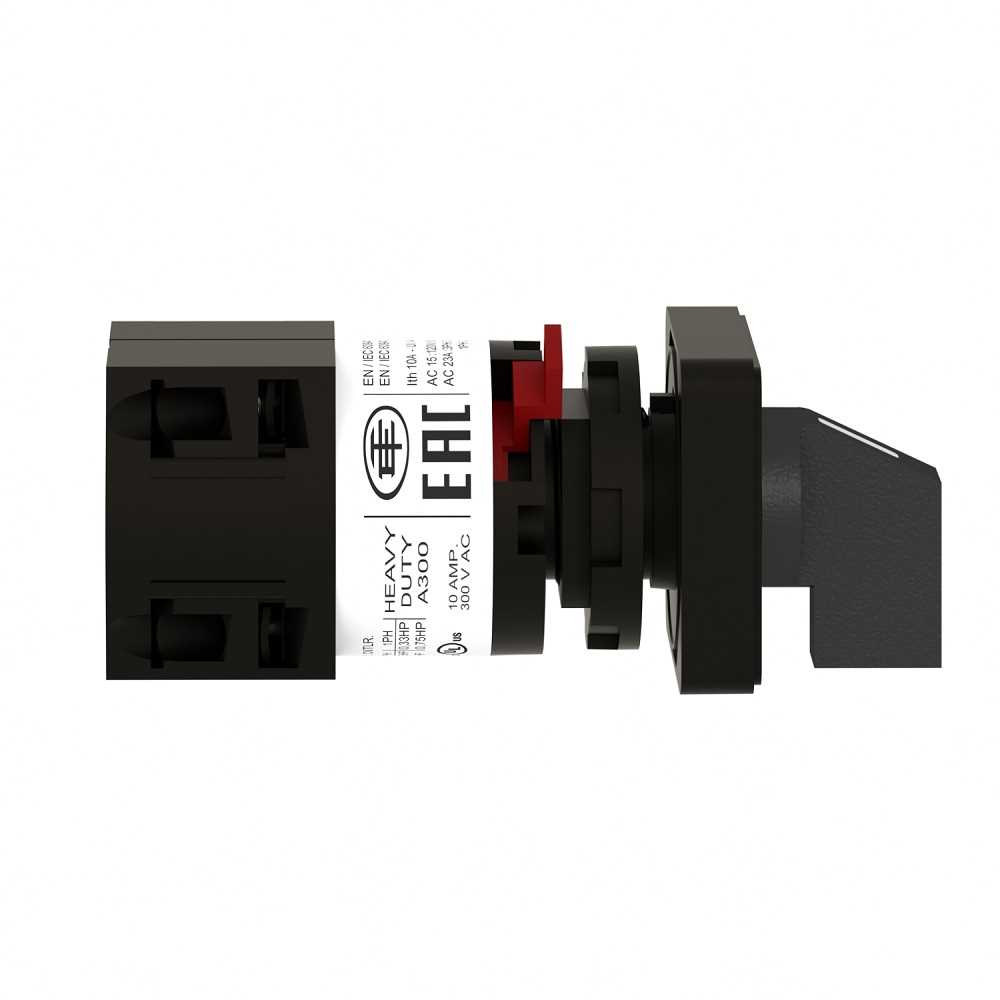

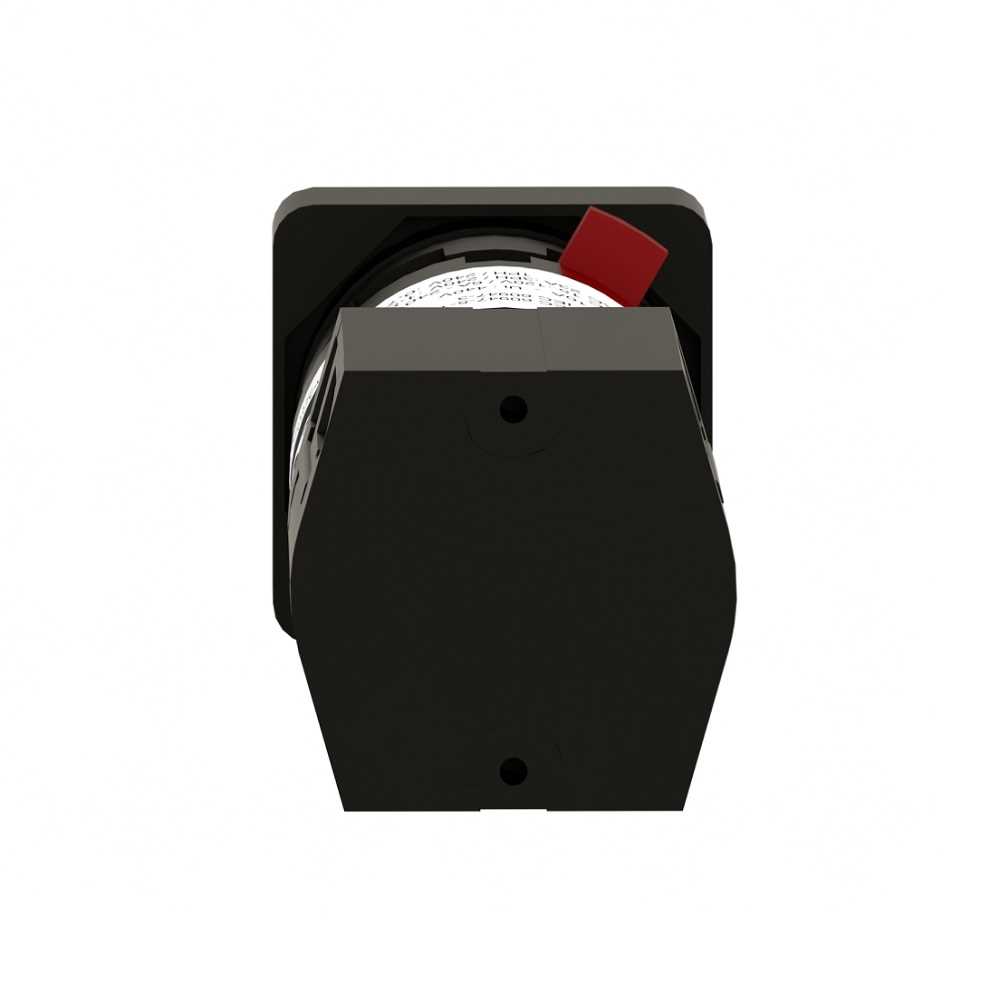

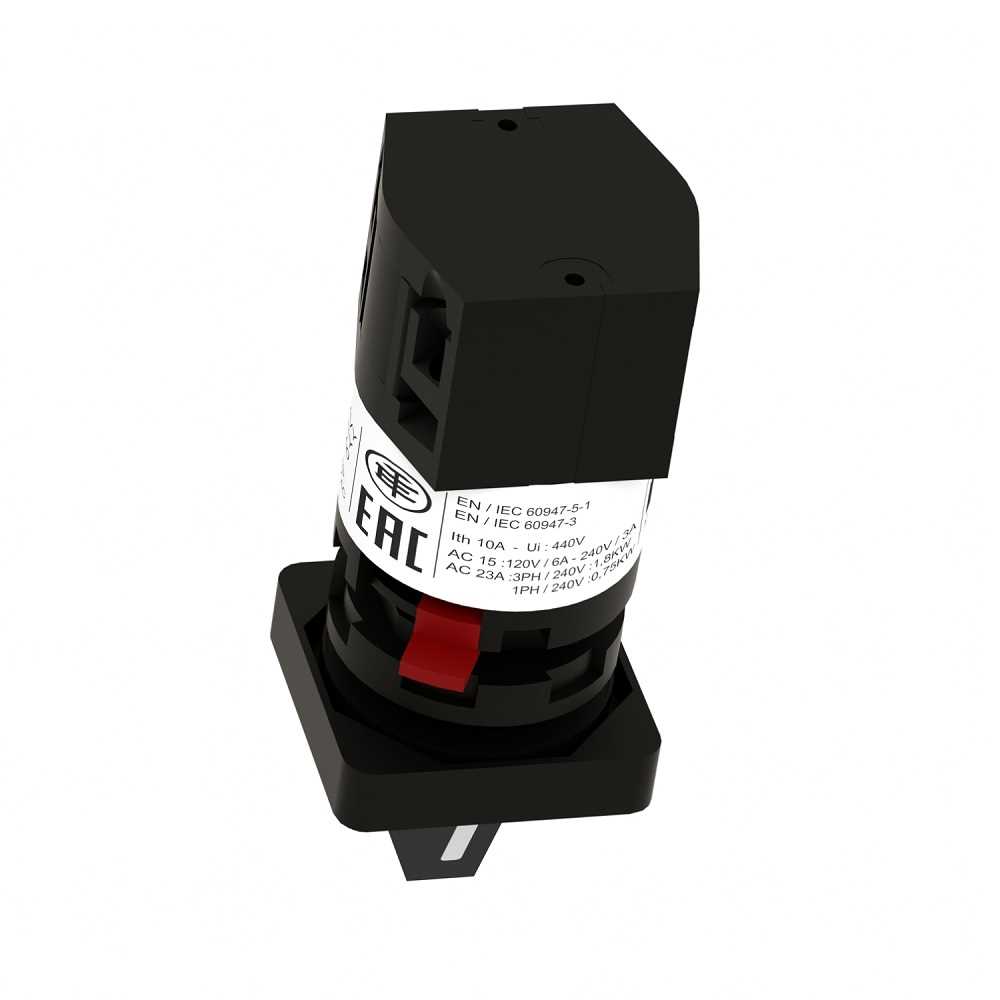

Schneider Electric K10A001ACH Harmony K1/ K2 Cam Switch | 1 Pole with Off Position | 60 Degree Switching Angle | 10 A For 0 16 or 22mm | Black & Silver

Brand:
Schneider Electric

Specifications

     Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: K10A001ACH

    DESCRIPTION
  • This Harmony K10 cam switch/selector switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking.

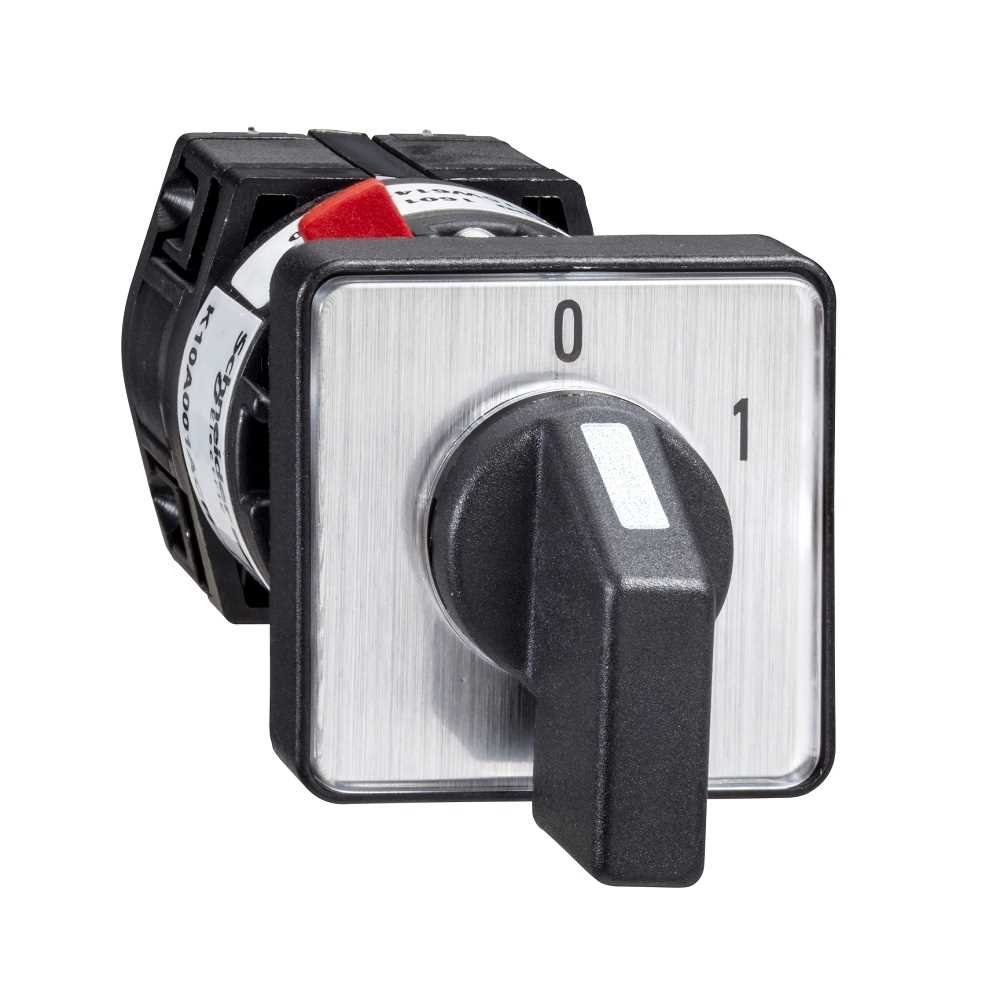

  • It has 0-1 Inches marking to indicate the position of the switch. This metal head cam switch/ selector switch is designed to meet most
  • industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions.
  • It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

    SPECIFICATIONS
  • Range Of Product: Harmony K
  • Fixing Mode: Ø 16 or 22 mm hole
  • Presentation Of Legend: with metallic, 1 - 0 - 2 black
  • Ip Degree Of Protection: contact block IP20 || operating head IP65 IEC 60529
  • Product Or Component Type: complete cam switch
  • [Ith] Conventional Free Air Thermal Current: 10 A
  • Cam Switch Function: changeover switch
  • Component Name: K10
  • Type Of Operator: Black handle
  • Switching Positions: right: 0° - 60° || left: 0° - 300°
  • Cam Switch Head Type: with front plate 30 x 30 mm
  • Product Mounting: front mounting
  • Poles Description: 3P
  • Rotary Handle Padlocking: without
  • Return: without
  • Off Position: with Off position

    Complementary
  • Short-Circuit Protection: 10 A cartridge fuse gG
  • Net Weight: 0.055 kg
  • [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1
  • Cad Overall Height: 30 mm
  • Switching Angle: 60 °
  • Electrical Connection: captive screw clamp terminals 2 x 1.5 mm²
  • Electrical Durability: 100000000 cycles
  • [Ui] Rated Insulation Voltage: 440 V 3)IEC 60947-1
  • Contact Operation: slow-break
  • Mechanical Durability: 1000000 cycles
  • Rated Power In Hp: 1 hp 220/240 V AC, 3 phase || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phase || 0.75 hp 220/240 V AC, 1 phase
  • [Ie] Rated Operational Current Dc: 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
  • Cad Overall Width: 30 mm
  • Cad Overall Depth: 100 mm
  • Rated Operational Power In W: 1800 W AC-23A, 220/240 V 3 phase || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
  • [Ie] Rated Operational Current Ac: 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15

    Offer Sustainability
  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Toxic Heavy Metal Free: Yes
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Reach Free Of Svhc: Yes
  • Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • China Rohs Regulation: X
  • Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

    Environment
  • Ambient Air Temperature For Operation: -20-55 °C
  • Product Certifications: cULus
  • Standards: CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
  • Ambient Air Temperature For Storage: -40-70 °C
  • Electrical Shock Protection Class: class II IEC 60536
  • Protective Treatment: TC

Features

Brand:
Schneider Electric
Color:
Black & Silver
Conditions:
New
Warranty:
1 Year
