Home Networking Network Switches Schneider Electric E8731L1F_DG_G11 | Switch with Fluorescent Locator | AvatarOn C | 1 Way | 1 Gang | 16AX/ 250V | Wine Gold

Schneider Electric E8731L1F_DG_G11 | Switch with Fluorescent Locator | AvatarOn C | 1 Way | 1 Gang | 16AX/ 250V | Wine Gold


Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Schneider Electric
  • Model: E8731L1F_DG_G11
   SPECIFICATIONS
   Main:
  • Range of Product: AvatarOn C
  • Product or component type: Switch
  • device application: Control
  • Colour tint: Wine Gold
   Complementary:
  • device presentation: Complete product
  • Rated current: 16 AX at 250 V AC 50/60 Hz
  • Switch function: 1-way
  • Number of gangs: 1 gang
  • Number of rocker: 1

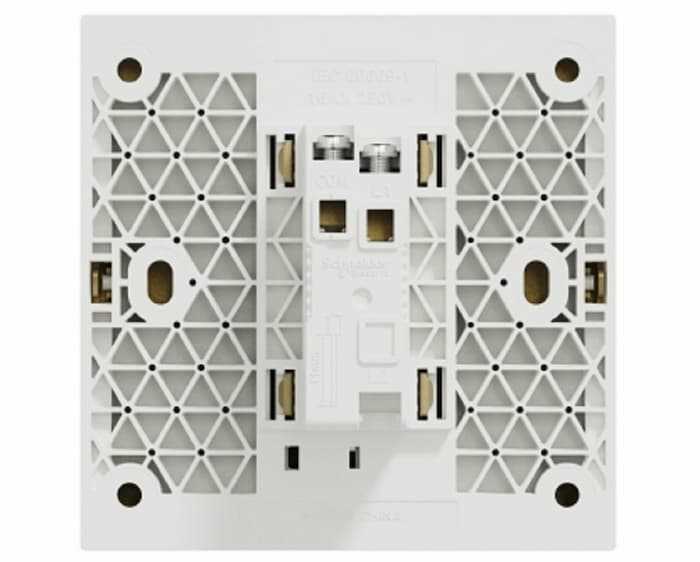

  • Connections - terminals: Screw terminal
  • Local signalling: With light indicator, fluorescent
  • Material: PC (polycarbonate)
  • device mounting: Surface, Flush
   Weight:
  • Width: 86 mm
  • Height: 86 mm
  • Depth: 36.8 mm
  • Embedding depth: 23.5 mm
  • Weight: 65.0 g



Features

Brand:
Schneider Electric
Warranty:
1 Year
