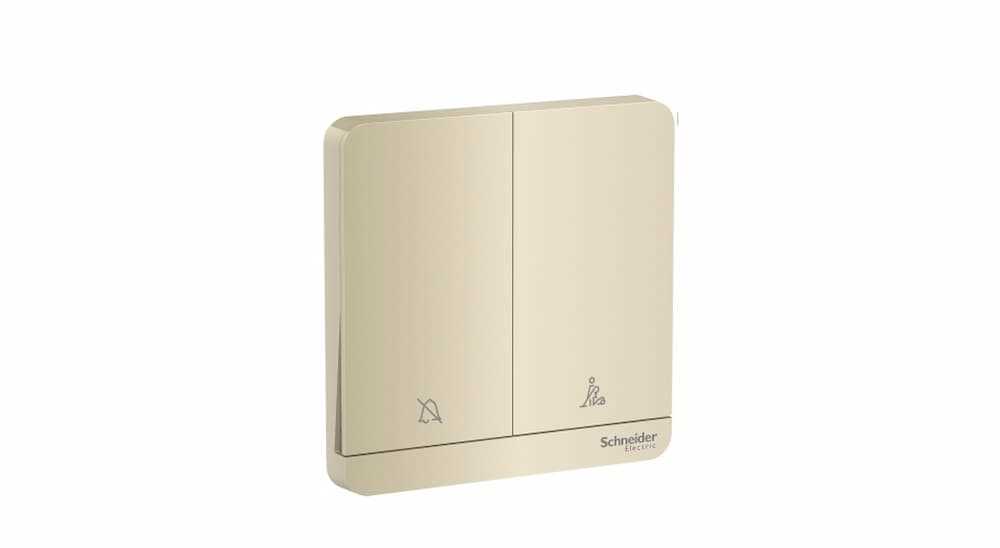

Schneider Electric E8332DMS_WG 2 Switch, 1-pole 1-way, LED, brass terminal, IP20 AvatarOn (Wine gold)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 18 Months Warranty
  • Brand: Schneider Electric
  • Model: E8332DMS_WG
  • Color: Wine gold
      Specifications:
  • Product or component type: Switch
  • Device application: Control
  • Device presentation: Complete product
  • Rated current: 16 AX at 250 V AC 50/60 Hz
  • Switch function: 2-pole 1-way
  • Number of gangs: 2 gang
  • Number of rocker: 2
  • IP degree of protection: IP20
  • maximum ambient air temperature for operation: 45 °C
  • Operating altitude: 2000 m
  • Relative humidity: 0…95 %
  • Environmental characteristic: UV resistant
      Load Type:
  • Resistive
  • Inductive
  • Incandescent lamp
  • Fluorescent lamp
      Material:
  • Polycarbonate: grid plate
  • Polycarbonate: base
  • Polycarbonate: dolly
  • Polycarbonate: frame
  • Polycarbonate + GF 20 %: actuator
      Standards:
  • SS 227-1
  • MS IEC 60669-1
  • BS EN 60669-1
  • IEC 60669-1
      Clamping connection capacity:
  • 3 x 2.5 mm² for solid cable(s)
  • 3 x 2.5 mm² for stranded cable(s)
  • 4 x 1.5 mm² for solid cable(s)
  • 4 x 1.5 mm² for stranded cable(s)
      Dimensions:
  • Size: 3.4 × 8.6 × 8.6 cm
  • Weight: 113 g




Features

Brand:
Schneider Electric
Color:
Wine gold
Conditions:
New
Warranty:
18 Months
