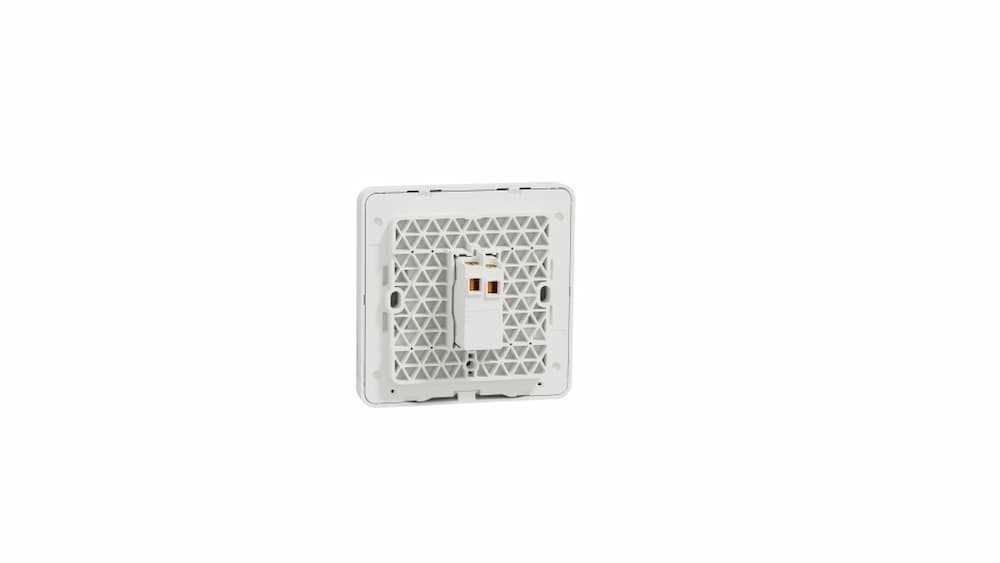

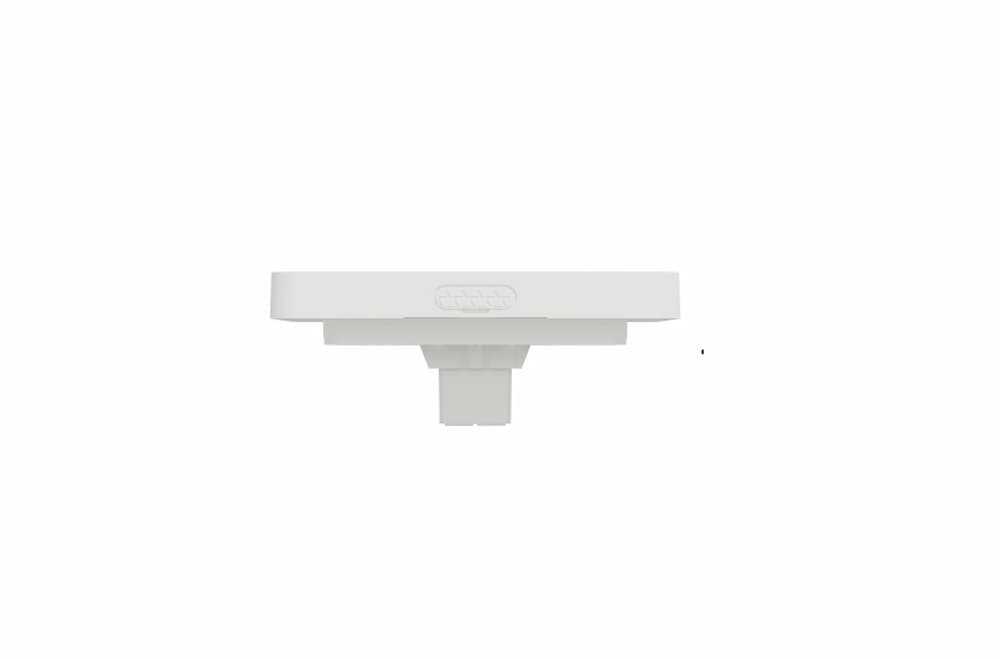

Schneider Electric E8331BPL1_AWE Push Putton for Doorbell, 10A, 250V, Antibacterial AvatarOn (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 18 Months Warranty
  • Brand: Schneider Electric
  • Model: E8331BPL1_AWE
  • Color: White
      Specifications:
  • Product or component type: Push-button
  • Device application: Doorbell
  • Colour tint: White
  • Device presentation: Complete product
  • Rated current: 10 A at 250 V AC 50/60 Hz
  • Number of gangs: 1 gang
  • Number of rocker: 1
  • Clamping connection capacity: 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s)
  • Connections - terminals: Brass terminal
  • Local signalling On: LED indicator, LED (amber)
  • IP degree of protection: IP20
  • Maximum ambient air temperature for operation: 45 °C
  • Operating altitude: 2000 m
  • Relative humidity: 0…95 %
  • Environmental characteristic: UV resistant
      Material:
  • Polycarbonate: grid plate
  • Polycarbonate: base
  • Polycarbonate: dolly
  • Polycarbonate: frame
  • Polycarbonate + GF 20 %: actuator
      Standards:
  • MS IEC 60669-1
  • BS EN 60669-1
  • IEC 60669-1
  • SS 227-1
      Dimensions:
  • Size: 3.4 × 8.6 × 8.6 cm
  • Weight: 83 g






Features

Brand:
Schneider Electric
Color:
White
Conditions:
New
Warranty:
18 Months
