Home Networking Wireless Accessories Schneider Electric CCT56P001 ARGUS Standard Indoor, False Ceiling 360 deg - Carton (White)

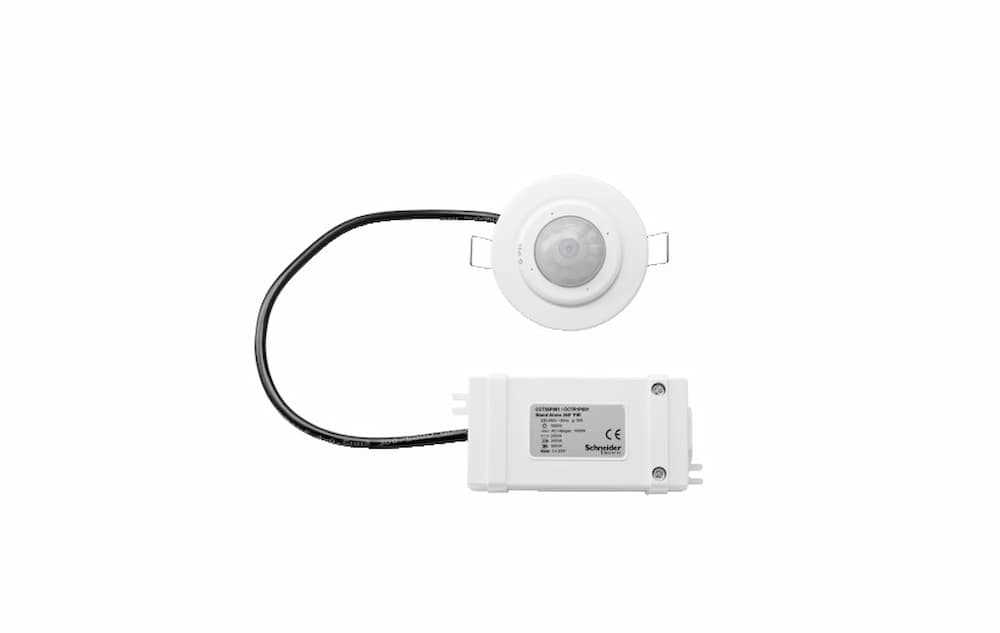

Schneider Electric CCT56P001 ARGUS Standard Indoor, False Ceiling 360 deg - Carton (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1.5 Year Warranty
  • Brand: Schneider Electric
  • Model: CCT56P001
  • Color: White
      Specifications:
  • Range of product: ARGUS standard movement detector
  • Product or component type: Movement detector
  • Output voltage: 220...240 V
  • Control type: Movement sensor
  • Network frequency: 50 Hz
  • Output current: 10 A
  • Type of setting: Light sensitivity adjustable, Time adjustment
  • Time delay: 5 s...10 min
  • Light intensity adjustment: 5…2000 lux
  • Horizontal detection angle: 0…360 °
  • Detection range: Radius: 3.9 m
  • Material: ABS + PC matt
  • Device mounting: Ceiling
  • Mounting height: 3 m
  • Condition of use: Indoor use only
  • IP degree of protection: IP20
      Load Type:
  • Incandescent lamp: 1000 W, AC
  • Halogen lamp: 1000 W, AC
  • Low voltage halogen lamp with wire-wound transformer: 500 VA
  • Low voltage halogen lamp with electronic transformer: 250 VA
  • Fluorescent tube: 200 VA, AC
  • Compact fluorescent lamp: 3 x 23 W, AC
  • Capacitive: 6 A, 21 µF, AC
  • Capacitive: 10 A, 14 µF, AC
      Dimensions:
  • Size: 6.5 × 13.1 × 12.5 cm
  • Weight: 281 g




Features

Brand:
Schneider Electric
Color:
White
Conditions:
New
Warranty:
18 Months
