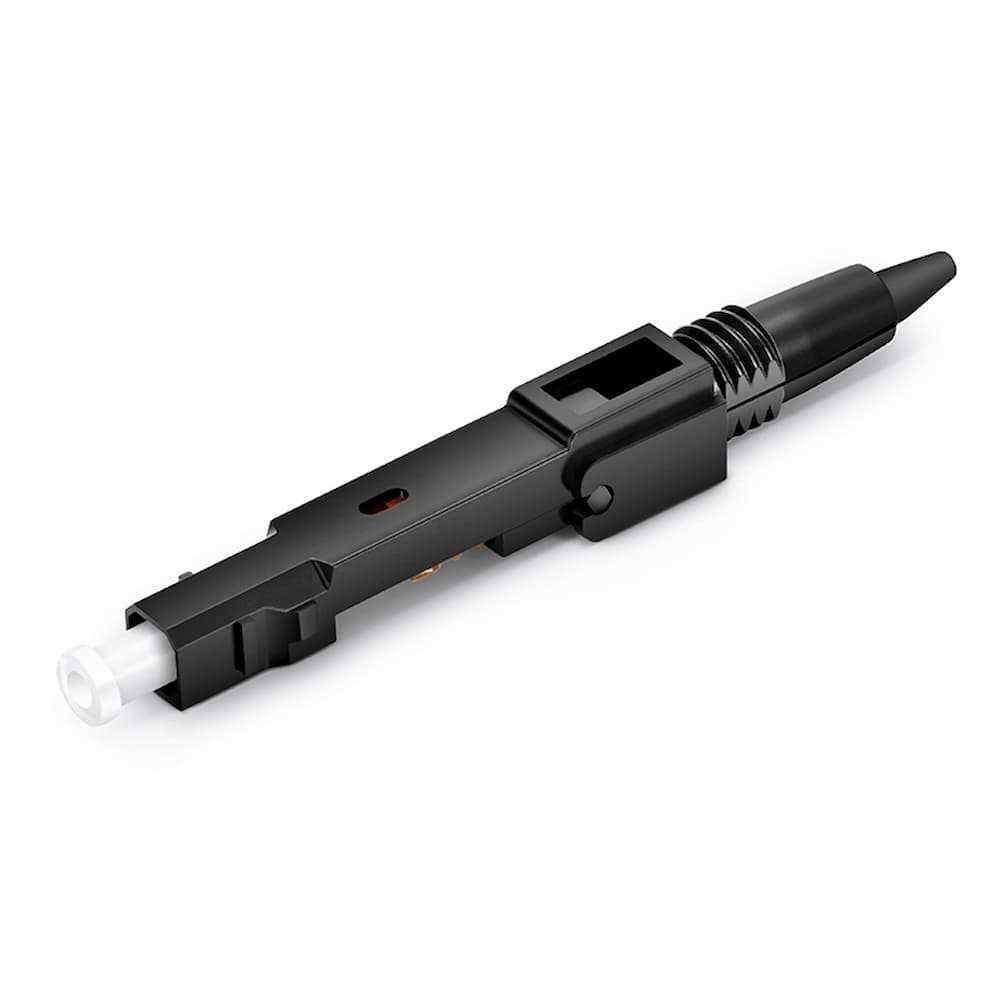

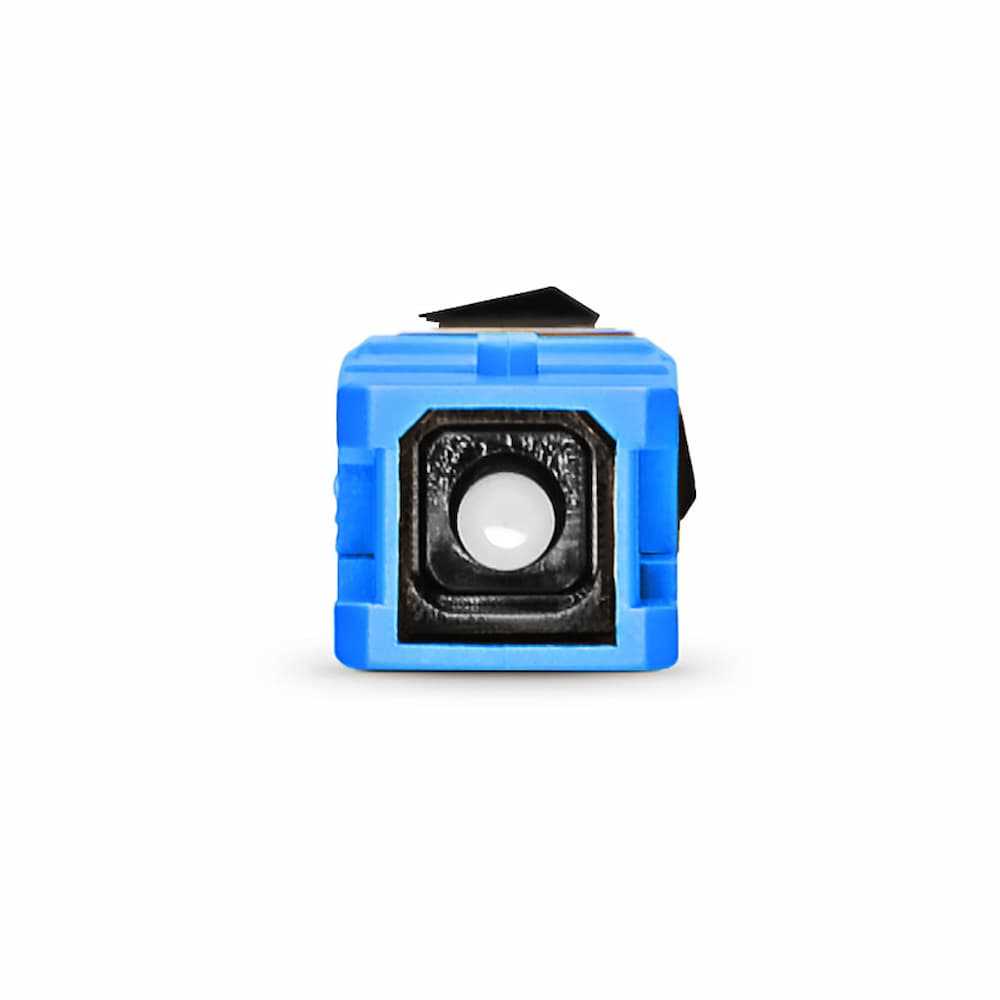

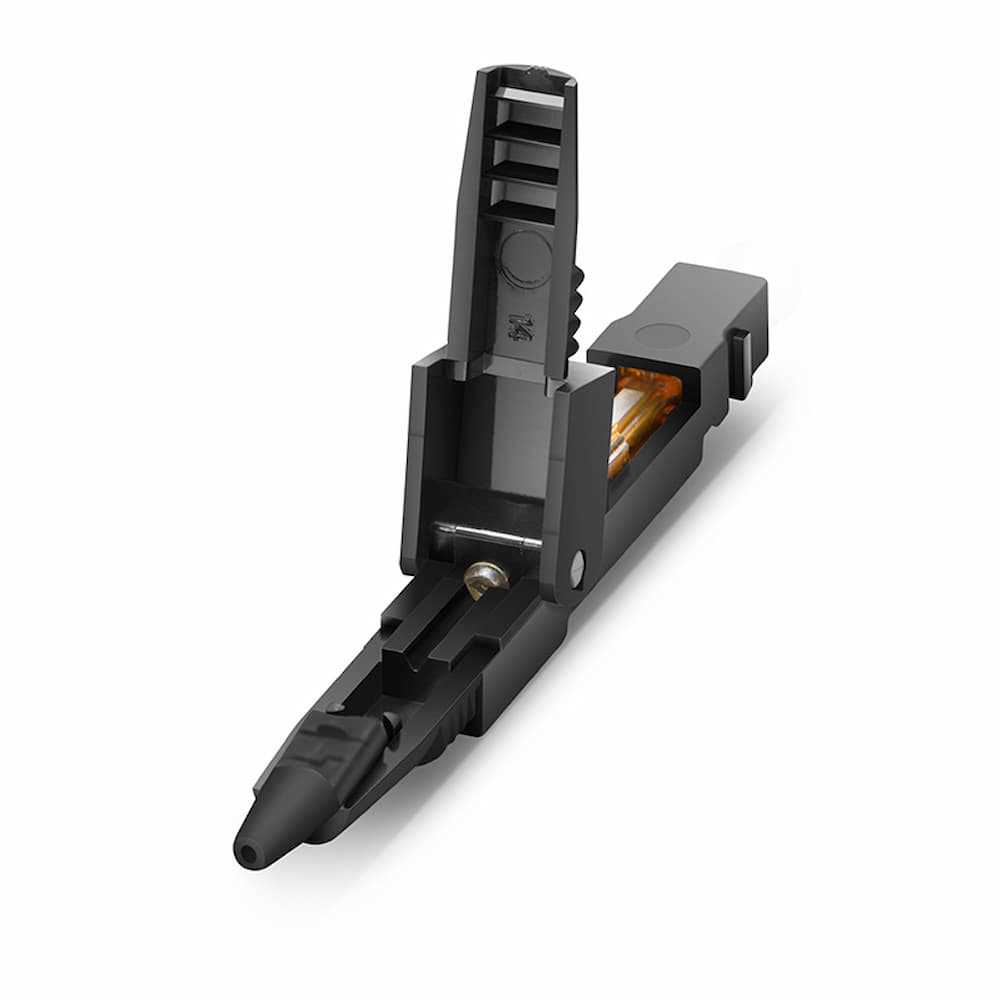

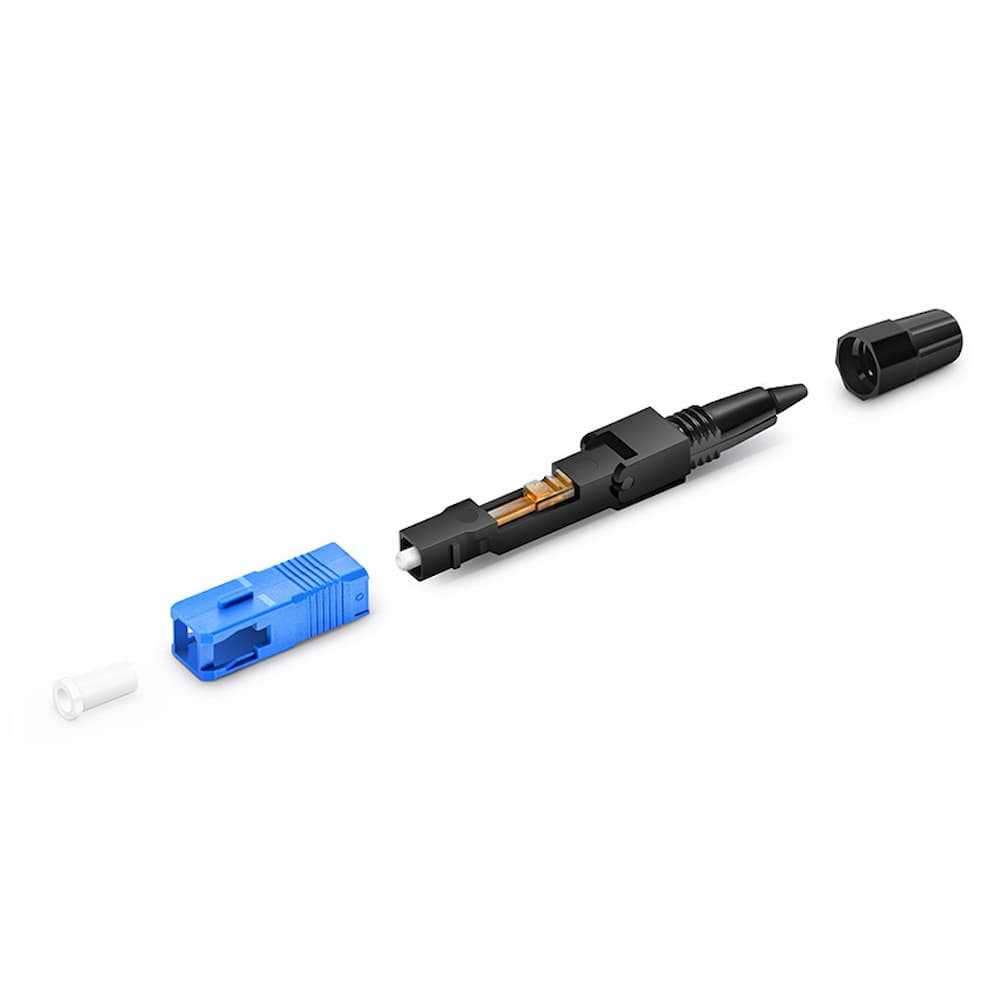

SC/UPC Type A Single Mode Pre-Polished Ferrule Field Assembly Fast & Quick Connector


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: No Brand
  • Model: SC/UPC
       Specifications:
  • Connector Type: SC
  • Polishing: UPC
  • Ferrule: Ceramic
  • Fiber Mode: 9/125µm Singlemode
  • Cable Diameters: 0.9/2.0/3.0mm
  • Insertion Loss: =0.35dB
  • Return Loss: =45dB

    Tension Test:
  • 900µm 10N, 2.0mm 20N
  • 3.0mm 50N

    Temperature:
  • Storage -40 to 85°C
  • Operating -20 to 75°C
  • Dimension: 50mm









Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
