Home Networking Wireless Accessories SC APC Simplex OS2 Single Mode Fiber Optic Pigtail With FBT Connector, 1Meter - Yellow

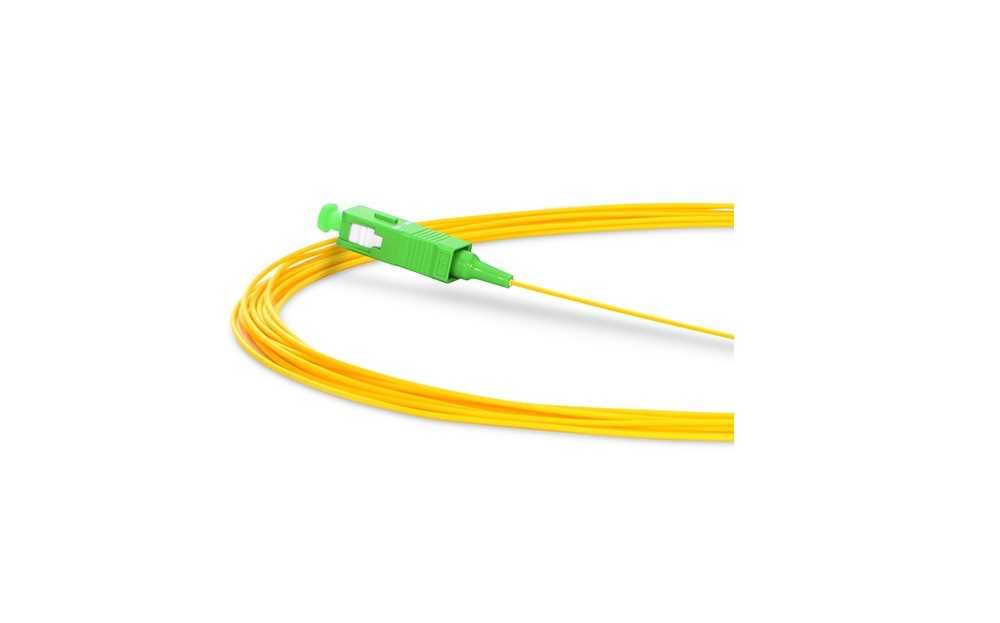

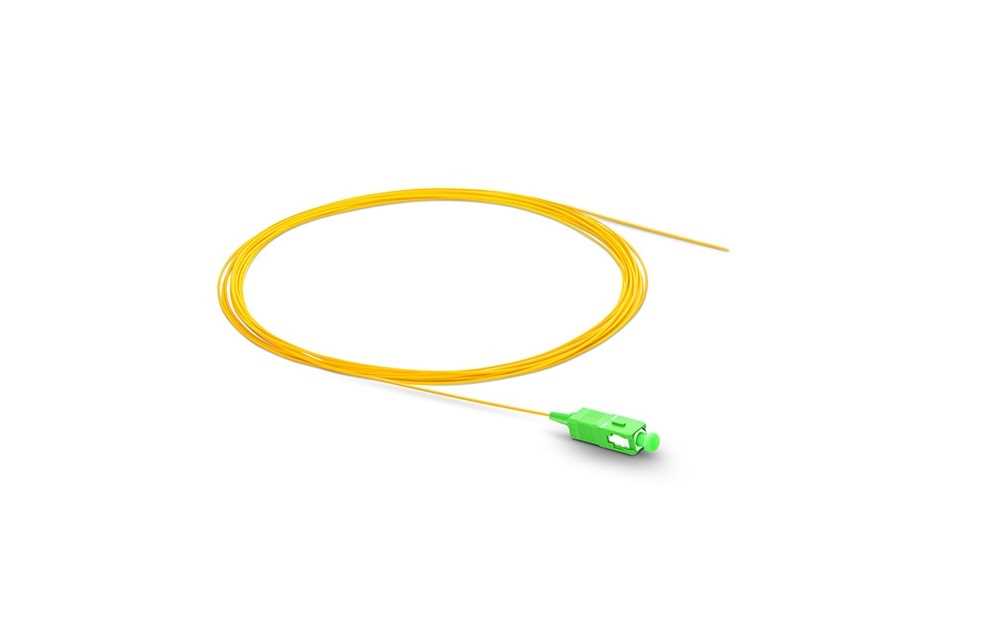

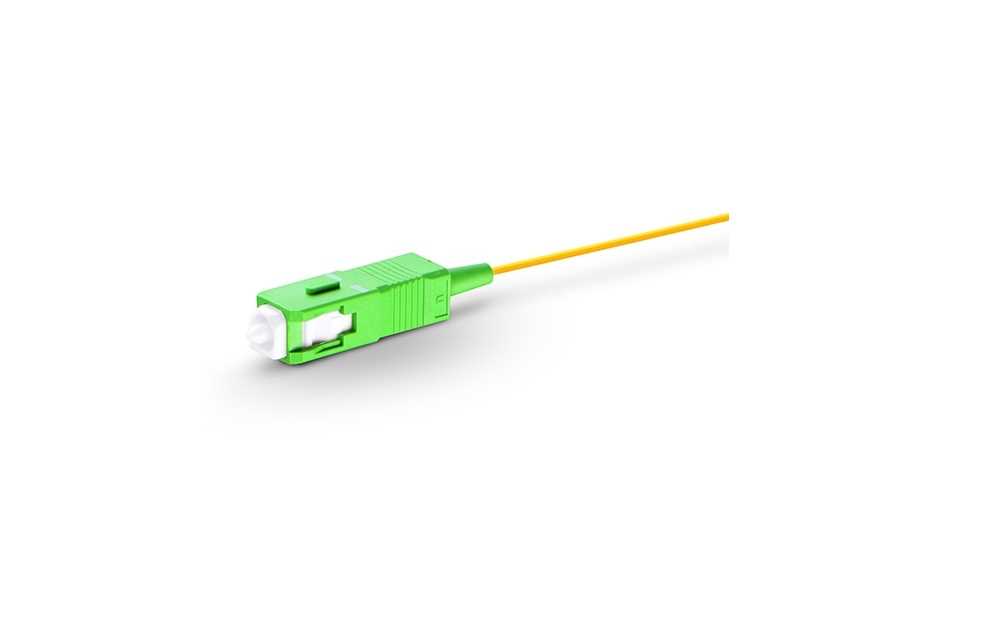

SC APC Simplex OS2 Single Mode Fiber Optic Pigtail With FBT Connector, 1Meter - Yellow


Brand:
No Brand

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • No Warranty
  • Brand: No Brand
  • Color: Yellow
      Overview:
  • Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
      Features:
  • FBT Connector
  • PVC (OFNR) Jacket
  • Nano-Zirconia Ceramic Ferrules
  • PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber
  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
      Specifications:
  • Connector A: SC
  • Connector B: Unterminated
  • Fiber Mode: 9/125 µm
  • Fiber Count: Simplex
  • Fiber Grade: G.657.A1
  • Minimum Bend Radius: 10 mm
  • Polish Type: APC
  • Cable Diameter: 0.9 mm
  • Cable Jacket: PVC
  • Wavelength: 1310 nm/1550 nm
  • Durability: 500 Times
  • Insertion Loss: <0.3 dB
  • Interchangeability: <0.2 dB
  • Return Loss: >60 dB
  • Vibration: <0.2 dB
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C







Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
