Sanwa Electric Instrument Pocket Type Digital Multimeter (White & Red)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Sanwa

    Features
  • Operation Environment: 0-40 ? 80% RH or less No condensation
  • Duty Ratio: 0.1-99 Percent
  • Height (mm): 108
  • Length (mm): 11.5
  • Temperature / Humidity Range that Tolerance Guaranteed: 23 ± 5  80% RH or less No condensation
  • Trusco Part No.: 284-8546
  • AC Voltage (V): 4/40/400/500
  • Resistance (O): 00/4k/40k/400k/4M/40M
  • DC Voltage (V): 400m/4/40/400/500
  • Width (mm): 56

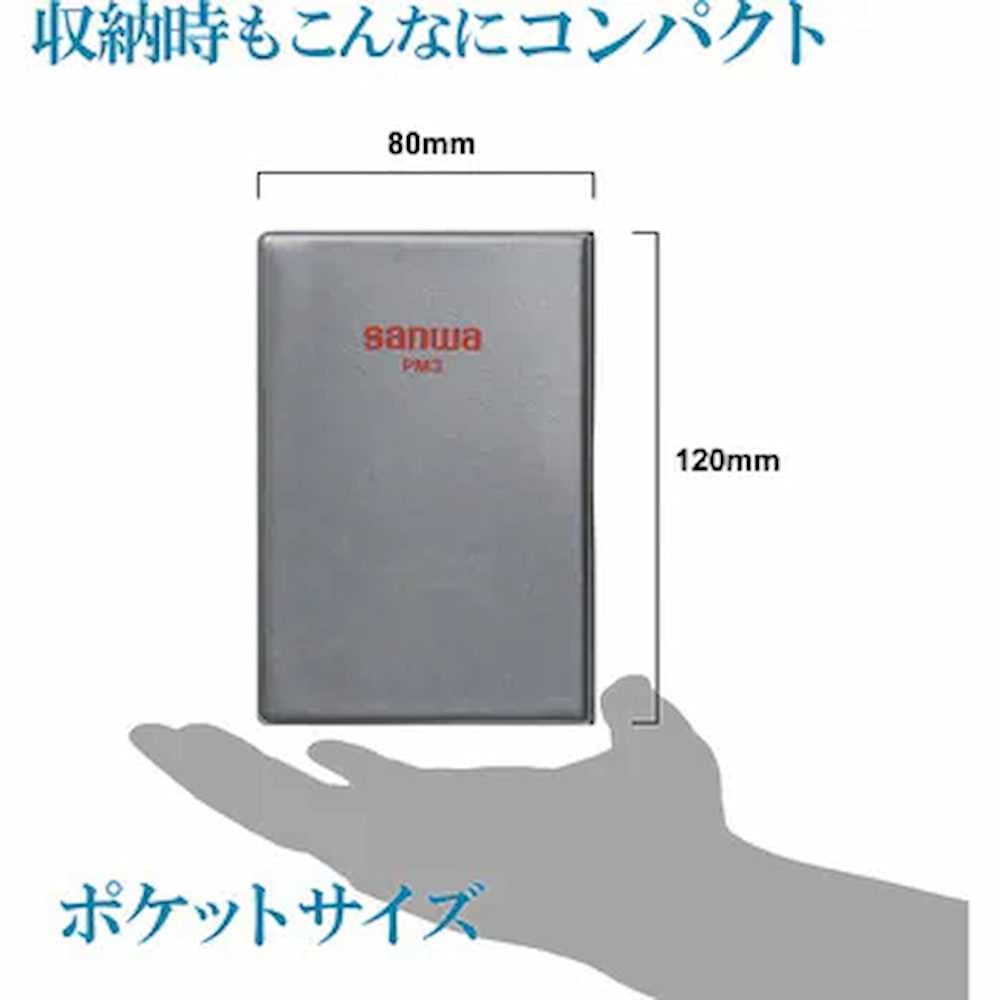

  • Dimensions, Width W x Height H x Depth D (mm): 56×108×11.5
  • Capacitor Capacitance (F): 5n/50n/500n/5µ/50µ/200µ
  • Frequency (Hz): 9.999/99.99/999.9/9.999k/60.00k
  • Mass (g)>: About 50

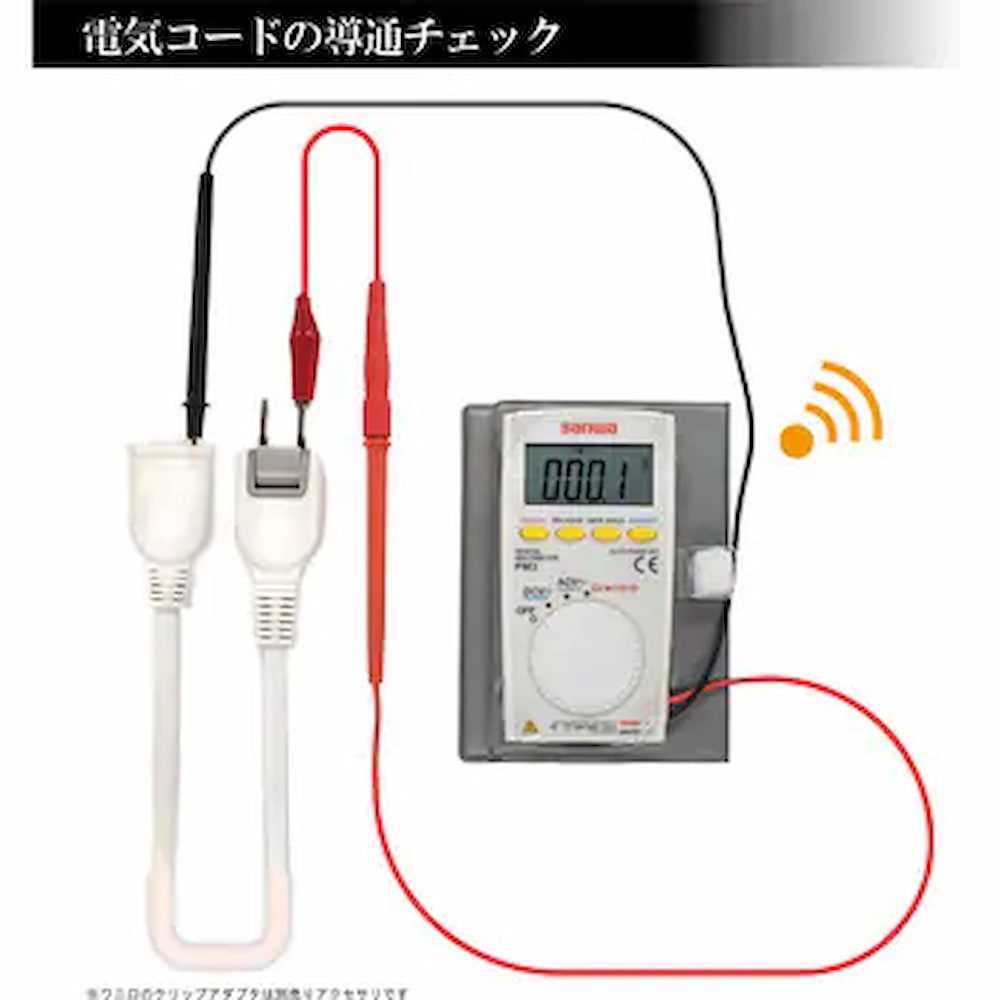

  • Continuity Check: Buzzer sound at 10 to 120O or less Open voltage: Approximately 0.4V
  • Power Supply: CR2032 (lithium battery) 3Vx1
  • Type: Digital Multimeters
  • Safety Standard: IEC61010 CAT. 500V

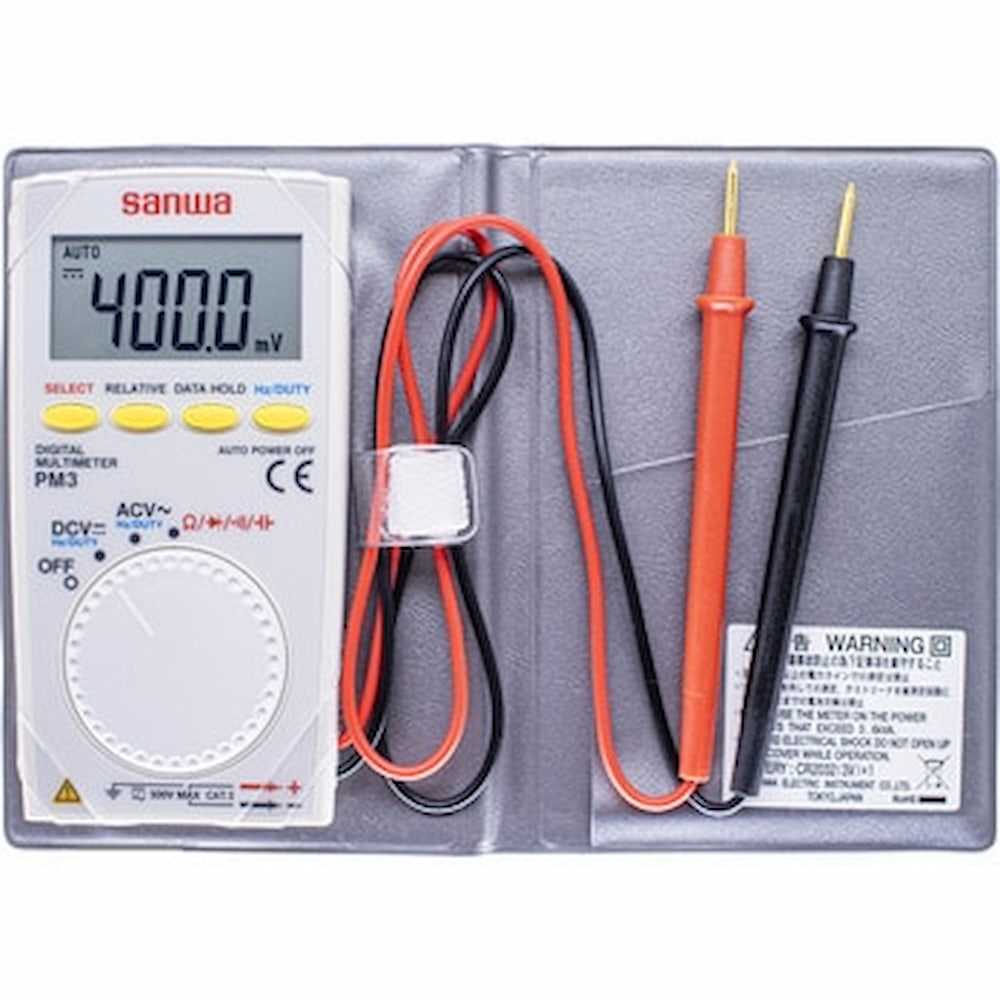

  • Included Accessories: Notebook type case (C-PM3), instruction manual
  • Diode Test: Open circuit voltage: Approximately 1.5V

Features

Brand:
Sanwa
Color:
White & Red
Conditions:
New
Warranty:
No Warranty
