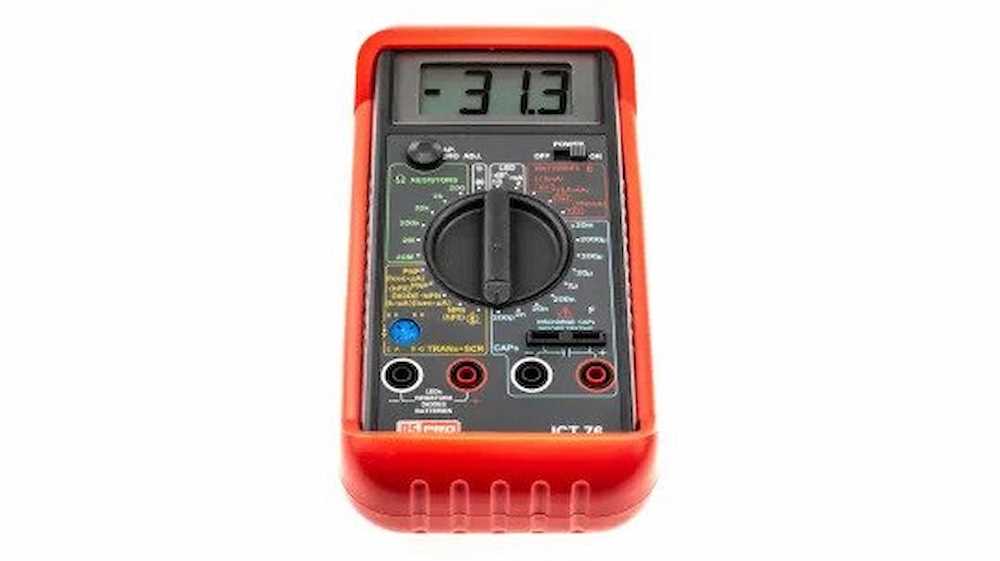

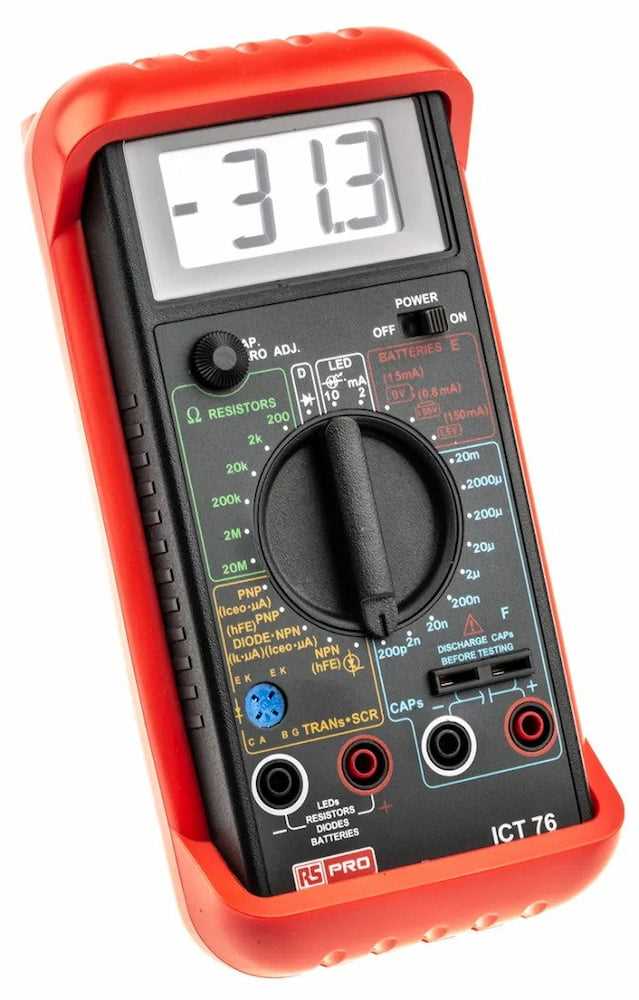

RS PRO ICT76 LCD Component Tester, Resistance Measurement Resolution - 9V


Brand:

Specifications

      Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • No Warranty
  • Brand: RS PRO
  • Model: ICT76
      Features and Benefits:
  • Measures resistance and capacitance up to 20mF
  • Transistor hFE measurement
  • Transistor leakage current measurement
  • SCRs/thyristors test
  • Diode Test
  • LED test
  • Silicon controlled rectifier test - good/bad test result
  • Battery test
  • 2000 count digital display
  • Low battery indication and overload protection

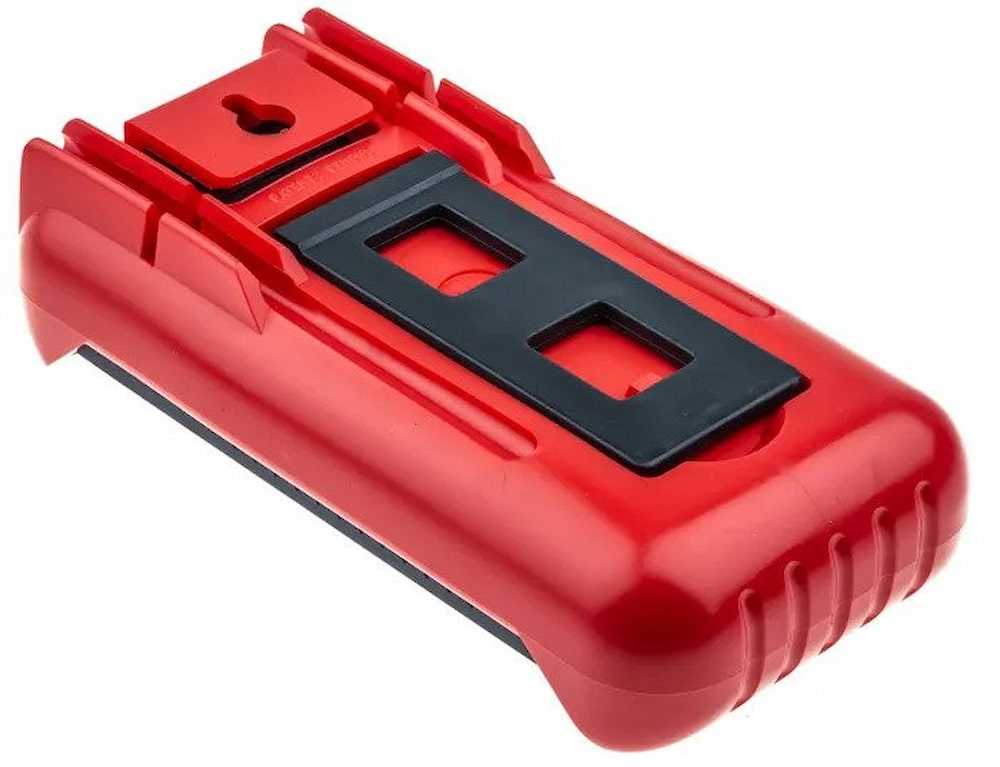

  • Tilt stand for easier reading
     Specification:
  • Resistance Measurement Resolution: 100mO
  • Capacitance Measurement Resolution: 0.1pF
  • Tester Type: Component, IC
  • Display Type: LCD
  • Battery Life: 200 h
  • Battery Type: 9V
  • Power Source: Battery
  • Weight: 330 (with Battery)g
  • Height: 175mm
  • Length: 84mm
  • Maximum Capacitance Measurement: 20mF
  • Maximum Operating Temperature: +50°C
  • Maximum Resistance Measurement: 20 MO
  • Minimum Operating Temperature: 0°C
  • Width: 31mm
  • Minimum Resistance Measurement: 200O
  • Minimum Capacitance Measurement: 20pF











Features

Brand:
RS PRO
Conditions:
New
Warranty:
No Warranty
