Home Networking Network Switches Raritan PX3TS-1469R PDU Rack Transfer Switch - Black

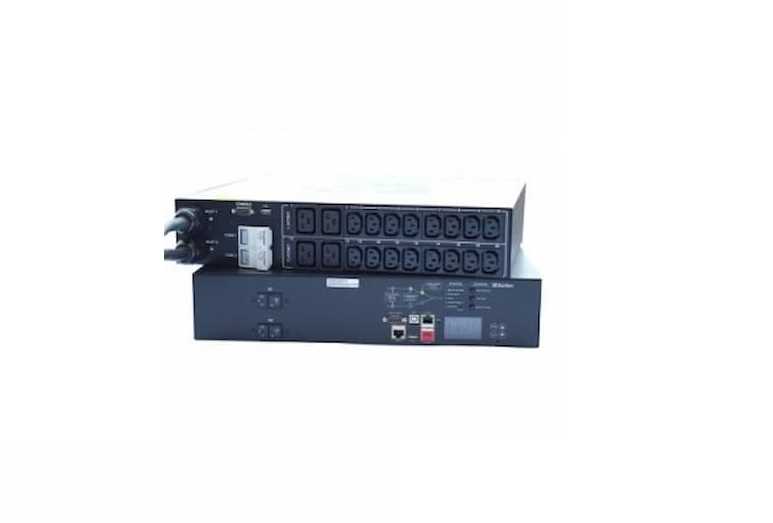

Raritan PX3TS-1469R PDU Rack Transfer Switch - Black


Brand:

Specifications

         Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Raritan
  • Model: PX3TS-1469R PDU
  • Color: Black
        Features:
  • Load transfer times 4–8ms
  • Reliable transfer between sources regardless of phase.
  • Over-sized relays (rated 48A) and SCRs (rated 70A)
  • Eliminates electrical arcing that leads to transfer relay failure
  • 3.3mm vs. typical 0.6mm contact air gap to prevent arcing due to surges.
  • Inlet surge protection and field replaceable, fast-blow fuses for short circuit protection.
  • Inlet or outlet-level metering and switching, with power quality monitoring.
  • User configurable thresholds for power quality.
  • Ethernet, Modbus, and SNMP networking.
  • USB ports for Wi-Fi, camera, tablet, and cascading.
  • Alarm and status updates via GSM text, email and syslog.
  • Supports Raritan plug-and-play environment sensors.
  • Runs in up to 60º C (UL), 50º C (CE) environment at 85% RH.
  • Energy efficient and produces less heat.
  • 20W power consumption.
  • SecureLock™ ready to prevent accidental disconnects.
        Specification:
  • Phase: Single phase
  • Maximum Input Current: 32A
  • Input type: 2 x IEC 60309 32A
  • Plug: IEC60309 32A
  • Power Capacity: 7.4-7.7kVA
  • Form Factors: Two U



Features

Brand:
Raritan
Color:
Black
Conditions:
New
Warranty:
1 Year
