Home Networking Power Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)

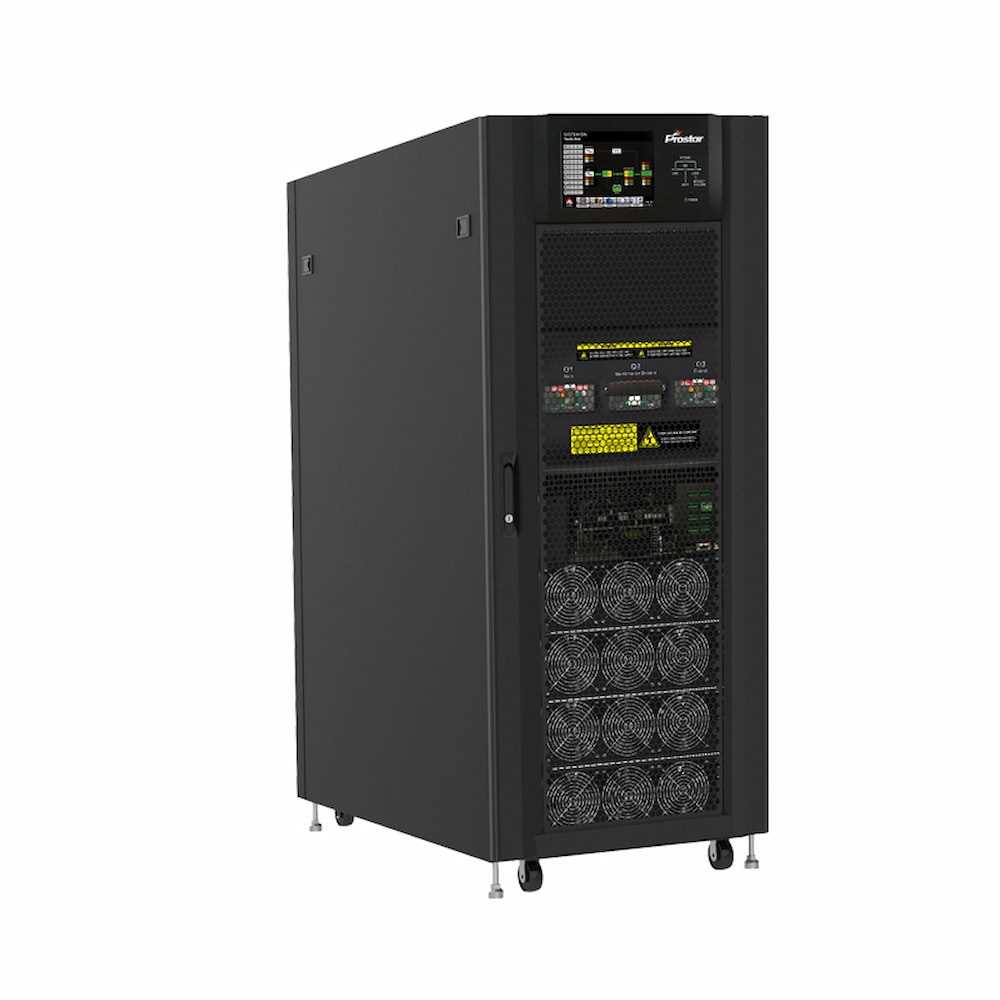

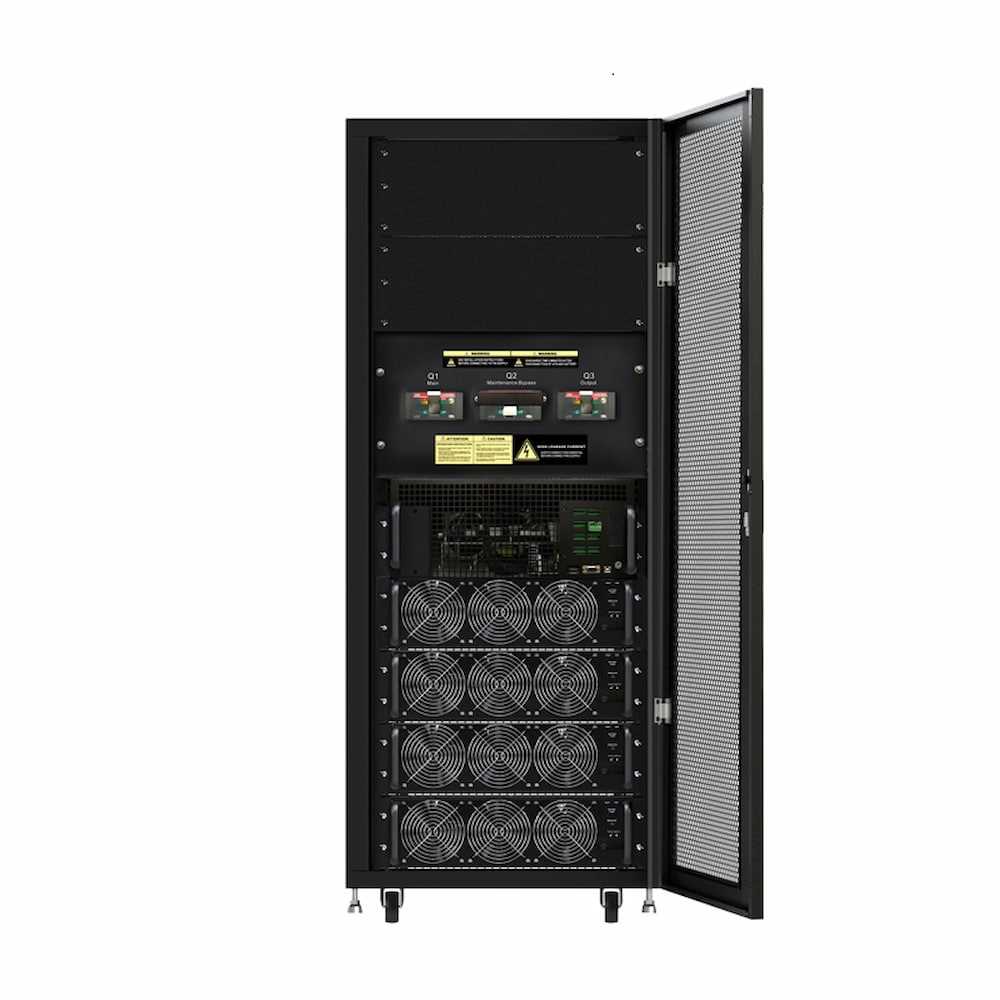

Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
Previous
  1. Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
  2. Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
  3. Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
  4. Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)
Next

Prostar MPS80k-30U 80KVA 3 Phase Online Modular UPS Power Supply (Black)

Brand:
Prostar

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Prostar
  • Model: MPS80k-30U

    FEATURES
    High scalability
  • DSP control provides an improved solution with high performance. Integrated with modular design and parallel technology, simplifies future power expansion.

    High efficiency online double conversion technology
  • Mars series modular UPS is applied online double conversion technology with high performance over 94.5% at 50% load. It significantly reduces overall Total Cost of Ownership(TCO).

    Modular design lowers MTTR
  • Mars series modular design is applied in power module, STS module and battery module. It will simplify maintenance and replacement with low MTTR(Mean Time To Repair).

    Unity output power factor
  • Mars series delivers unity output power (kVA=kW) providing the maximum power capacity to mission critical loads. It satisfies the requirements of the latest servers and optimizes IT investment with every penny.

    Online ECO Mode
  • When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

    LCD Touch Panel
  • The LCD touch panel is designed with user-friendly and intuitive interface, allowing users to monitor power system and configure settings by simply touching the screen.

    N+1 or N+X parallel redundancy for power guarantee
  • The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures.

    Generator Compatible
  • Power continuity can be achieved with generators during a power outage. When UPS is running on generator’s power, the UPS can stabilize generator’s unstable voltages, providing reliable power.

    Ease of installation and maintenance
  • Built-in maintenance bypass assures continuous power to critical loads during UPS maintenance. Besides, to facilitate installation and maintenance, all panel control and connectors are front accessibility.

    Flexible battery configuration adapts different applications
  • Battery numbers can be adjusted flexibly. It will adapt different power demands and shorten system downtime. Battery voltage can be set from 32 to 40 pieces per string.

    Adjustable charging current
  • Provides maximum 6A charging current for every power module and it’s adjustable based on requirement.

    Vertical Scalability
  • The number of power modules installed in the UPS can be customized based on power demands, without taking any extra floor space. The power modules are also hot-swappable, ensuring seamless operation.

    Maintenance Bypass Switch
  • The operators can use the switch to seamlessly transfer to utility power via bypass mode, performing quick and safe maintenance without having to shut down power system and connected equipment.

    Remote Management Capability
  • Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks such as scheduled shutdowns and reboots.

    SPECIFICATIONS
  • Maximum Capacity: 80KW
  • Phase: 3-phase in / 3-phase out
  • Battery Voltage: 240V Default, 192V/240V Selectable
  • Power Module Capacity: 20KW
  • Number of Power Modules4:  Pcs
  • Number of Power Slots: 4 Pcs

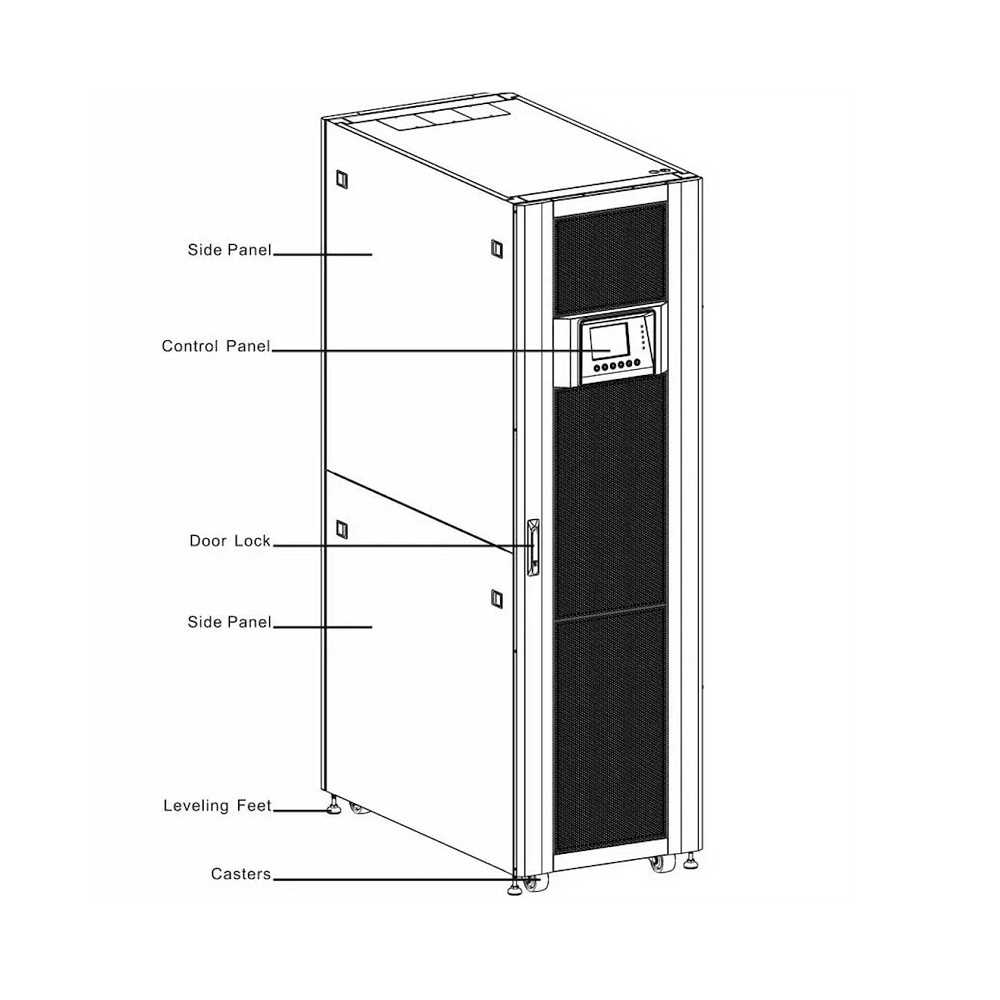

  • Size, D X W X H (mm): 1100X600X1475
  • Cabinet Net Weight (Kgs): 332

    INPUT
  • Input Voltage: 380VAC/400VAC/415VAC (3Ph+N)
  • Voltage Range: 305~477VAC at 100% Load; 208~304VAC at <70% Load
  • Nominal Frequency: 50/60Hz(Auto Sensing)
  • Frequency Range: 40Hz~70Hz
  • Power Factor: >0.99 @ 100% Load, >0.98 @ 50% Load
  • Harmonic Distortion (THDi): < 3% @ 100% Load

    OUTPUT
  • Nominal Voltage: 380VAC/400VAC/415VAC (3Ph+N)
  • Voltage Regulation(Steady state): ±1%Typical(Balanced Load); ±2% Typical (Unbalanced Load)
  • Voltage Regulation(Transient): ±5% Typical
  • Nominal Frequency: 50/60Hz
  • Frequency Range(Synchronized): 46Hz~54Hz or 56Hz~64Hz
  • Power Factor: 1 (kVA=kW)
  • Overload Capability: 1 hour for 110%,10 min for 120%,1 min for 150%,200ms for >150%
  • Harmonic Distortion: 1.5% THD(Linear Load); 4% THD( Non-linear Load )

    EFFICIENCY
  • Online Mode: Up to 94.5%
  • Eco Mode: 98%

    BATTERY/CHARGER
  • Nominal Voltage: +/- 216V (12V x 36Pcs)
  • Maximum Voltage: +/- 240V (12V x 40Pcs)
  • Minimum Voltage: +/- 192V (12V x 32Pcs)
  • Float Charging Voltage: 2.25V/Cell
  • Boost Charging Voltage: 2.35V/Cell
  • Temperature Compensation: Yes
  • Maximum Charging Current: 6A for each power module (User adjustable)

    STANDARDS
  • Safety: IEC/EN 60950-1; IEC/EN 62040-1
  • EMC: IEC/EN 62040-2 Category C3

    ENVIRONMENT
  • Operation Temperature: 0~40°C
  • Relative Humidity: 0~95% Non-condensing
  • Altitude: <1000m for Nominal power
  • IP Class: IP20

    MANAGEMENT
  • Communication Interface: Dry Contact, RS-232, USB, SNMP Slot
  • Smart RS-232 or USB: Windows® 2000/2003/XP/Vista/2008 Windows® 7/8 Linux Unix MAC
  • Optional SNMP: Power management from SNMP manager and web browser

Features

Brand:
Prostar
Color:
Black
Conditions:
New
Warranty:
1 Year
