Home Networking Network Switches Prolink PSG2402 24-Port Ethernet Switch Desktop Rack Mountable 10/100/1000Mbps Gigabit - Black

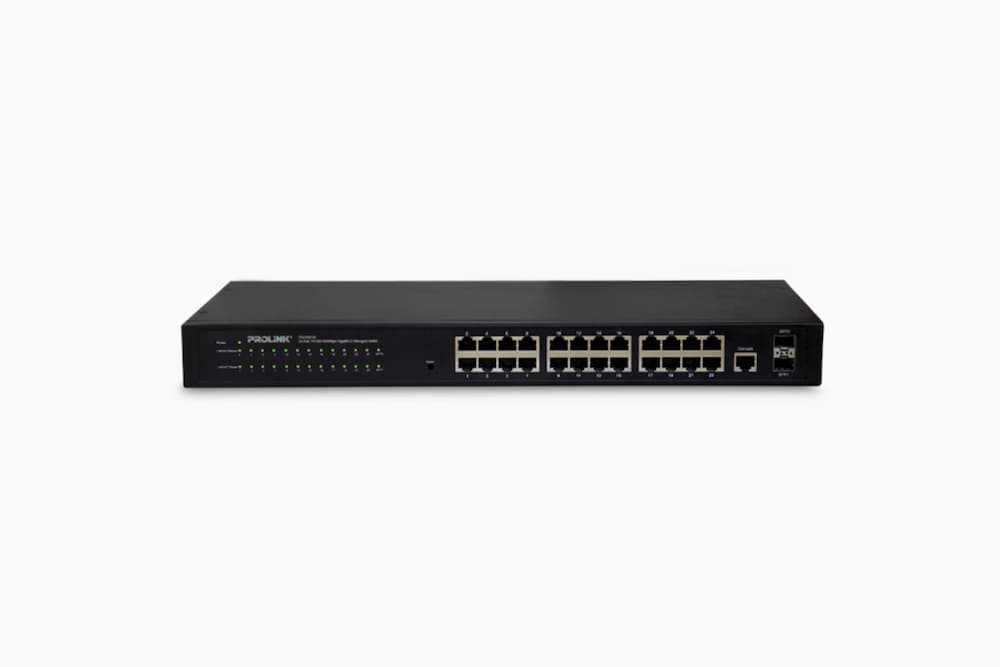

Prolink PSG2402 24-Port Ethernet Switch Desktop Rack Mountable 10/100/1000Mbps Gigabit - Black


Brand:

Prolink PSG2402 Specifications

       Product details:
  • 100% brand new from the factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy Exchange)
  • 1 Year Warranty
  • Brand: Prolink
  • Model: PSG2402

    Features:
  • 24 x 10/100/1000Mbps Auto-Negotiation RJ45 ports, supports Auto MDI/mdix
  • Supports Full/Half duplex transfer mode for 10/100Mbps; Full duplex for 1000Mbps
  • Complies with IEEE 802.3, 802.3u, 802.3ab,  802.3x, 802.3az
  • Supports broadcast storm control
  • Store-and-Forward switching method
  • Supports up to 8K MAC addresses auto-learning and auto-aging
  • Supports loop protection function
  • Dynamic LED Indicators for easy status monitoring and hassle-free problem diagnosis
  • The robust metal frame, can be placed on a desktop or mounted on a 19” rack
  • Green Ethernet technology reduces energy consumption and extends product life
  • Universal Power Supply

    Specification:
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
  • Number of Ports: 24 x 10/100/1000Mbps Auto-Negotiation ports

    Cable Type:
  • 10Base-T: UTP category 3,4,5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)
  • 100Base-T: UTP category 5,5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)
  • 1000Base-T: UTP category 5e,6 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)

    LED Indicator:
  • Link/Act: Green; 1000M: Green
  • Power (Green)
  • Switching Capacity: Up to 48G
  • MAC Address List: Automatically learning, automatically update 8K table
  • Frame Filtering & Forward Rate: 10Mbps: 14880pps; 100Mbps: 148800ppd; 1000Mbps: 1488000pps
  • Power Supply Input: 100-240VAC 50-60Hz
  • Power Consumption: 15W (Max)

    Weight & Dimension:
  • Dimension: 440 x 220 x 44mm
  • Weight 2.1KG

    Package Contains:
  • 1 x PROLiNK PSG2402
  • 1 x Power Cord
  • 2 x Rack-mount Bracket
  • 8 x Screw
  • 4 x Rubber Feet
  • 1 x Quick Installation Guide (QIG)



Features

Brand:
Prolink
Color:
Black
Conditions:
New
Model:
PSG2402
Warranty:
1 Year
