Prolink PRO910-WRL Professional II Series (1P/1P)- Rack/Tower Smart UPS (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Prolink
  • Model: PRO910-WRL

    SPECIFICATIONS
  • UPS Type: Rack / Tower
  • Phase: Single phase with ground
  • Rating (VA): 10000
  • Nominal Power (W): 8000
  • Battery Pack: 51
  • Dimension (mm): 530 x 438 x 133 [3U] (W x D x H)
  • Weight (kg): 18

    INPUT
  • Connection Type: Terminal
  • Nominal Voltage: 208/220/230/240 VAC
  • Voltage Range: 110-300 VAC ± 3% at 50% Load
  • 176-300 VAC ± 3% at 100% Load
  • Frequency Range: 46Hz ~ 54 Hz or 56Hz ~ 64 Hz
  • Power Factor: = 0.99

    OUTPUT
  • Connection Type: Terminal
  • Nominal Voltage: 208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronized Range): 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
  • Current Crest Ratio: 3:1
  • Harmonic Distortion: =3% THD (Linear load)
  • =5% THD (Non-linear load)

    ALARM & INDICATORS
  • Battery Mode: Sounding every 4 seconds
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
  • LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault

    CONNECTIVITY, CONTROL & MONITORING
  • Front panel: Status LED, Function keys, LCD display
  • Communication: Smart RS232*
  • USB Port
  • Emergency Power Off (EPO)

    BATTERY
  • Standard Model
  • Type: 12V/ 9Ah
  • Numbers: 16
  • Typical Recharge Time : 9 hours recover to 90% capacity
  • Long-run Model
  • Type
  • Depending on the capacity of external batteries
  • Number: 16-20 pcs (Adjustable)
  • Charging Current (max): 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)

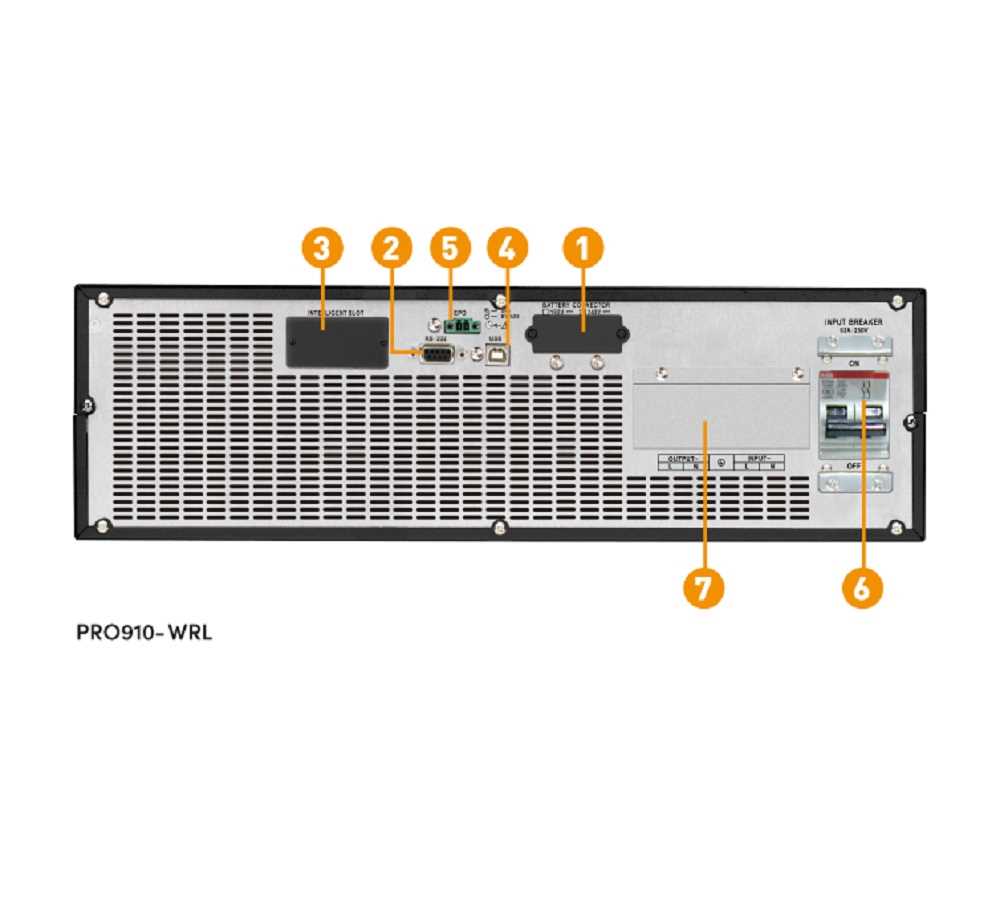

    REAR PANEL
  • External battery connector
  • RS-232 communication port
  • Intelligent slow
  • USB Communication port
  • Emergency power off function connector (EPO connector)
  • Input circuit breaker
  • Input/output terminal

Features

Brand:
Prolink
Color:
Black
Conditions:
New
Warranty:
1 Year
