Prolink PRO901-EL 1KVA Professional II Series (1P/1P)- Tower Smart UPS (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Prolink
  • Model: PRO901-EL

    SPECIFICATIONS
  • UPS Type: Tower
  • Phase: Single phase with ground
  • Rating (VA): 1000
  • Nominal Power (W): 900
  • Dimension (mm): 282 x 145 x 220 (D x W x H)
  • Weight (kg): 9.8

    INPUT
  • Connection Type: IEC 320-C14
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range: 110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)
  • Frequency Range: 45 ~ 70 Hz
  • Power Factor :>= 0.99

    OUTPUT
  • Connection Type: 3 x Universal socket (PRO901ES) 2 x Universal socket (PRO901EL)
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1 Percent
  • Frequency Range (Synchronized Range): 47-53 Hz or 57-63 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
  • Current Crest Ratio: 3:1
  • Harmonic Distortion: =3 Percent THD (Linear load) =6% THD (Non-linear load)

    ALARM & INDICATORS
  • Battery Mode: Sounding every 4 seconds
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
  • LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault

    CONNECTIVITY, CONTROL & MONITORING
  • Front panel Status LED, Function keys, LCD display
  • Communication Smart RS232*
  • USB Port

    BATTERY
  • Standard Model
  • Type: 12V / 9Ah
  • Numbers: 2
  • Typical Recharge Time: 4 hours recover to 90% capacity
  • Charging Current (max): 1A / 2A / 4A / 6A Adjustable

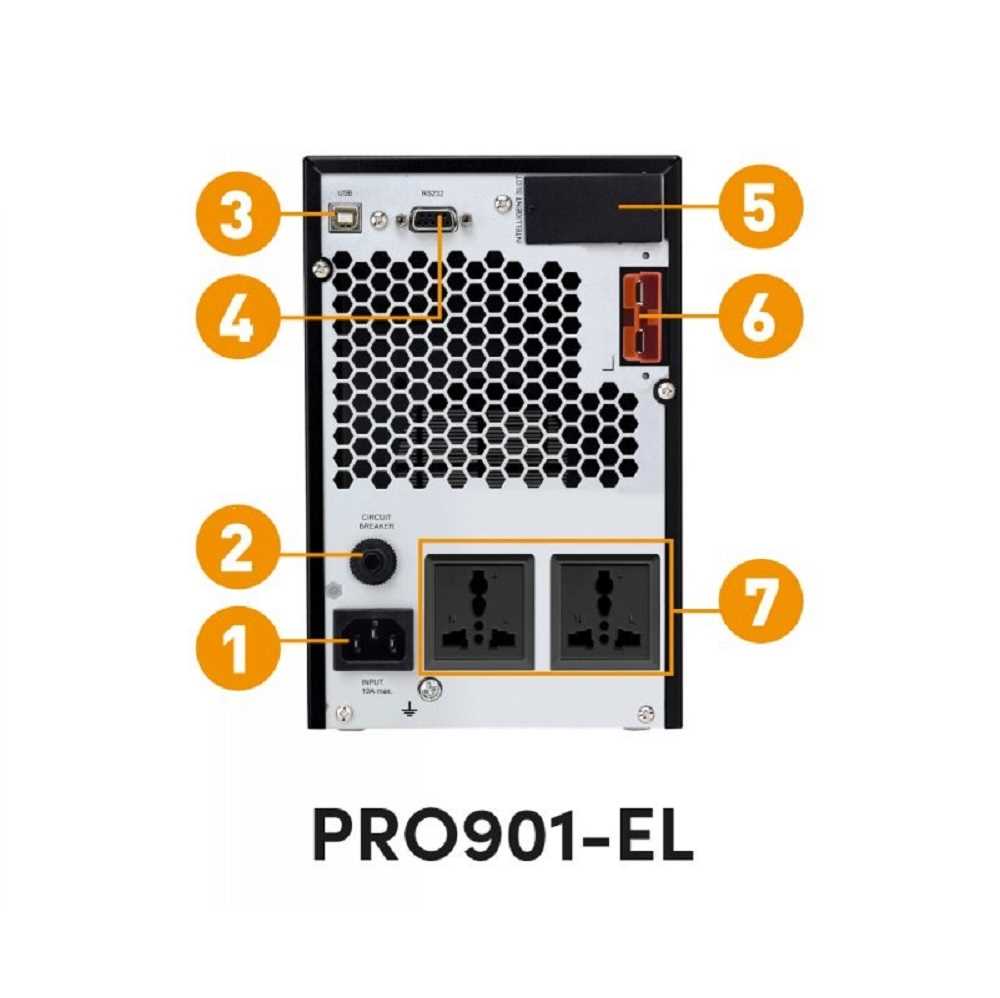

    REAR PANEL
  • AC Input
  • Input circuit breaker
  • USB Communication port
  • RS-232 communication port
  • Intelligent slot
  • External Battery connection (Only available for L model)
  • Output Receptacles

Features

Brand:
Prolink
Color:
Black
Conditions:
New
Warranty:
1 Year
