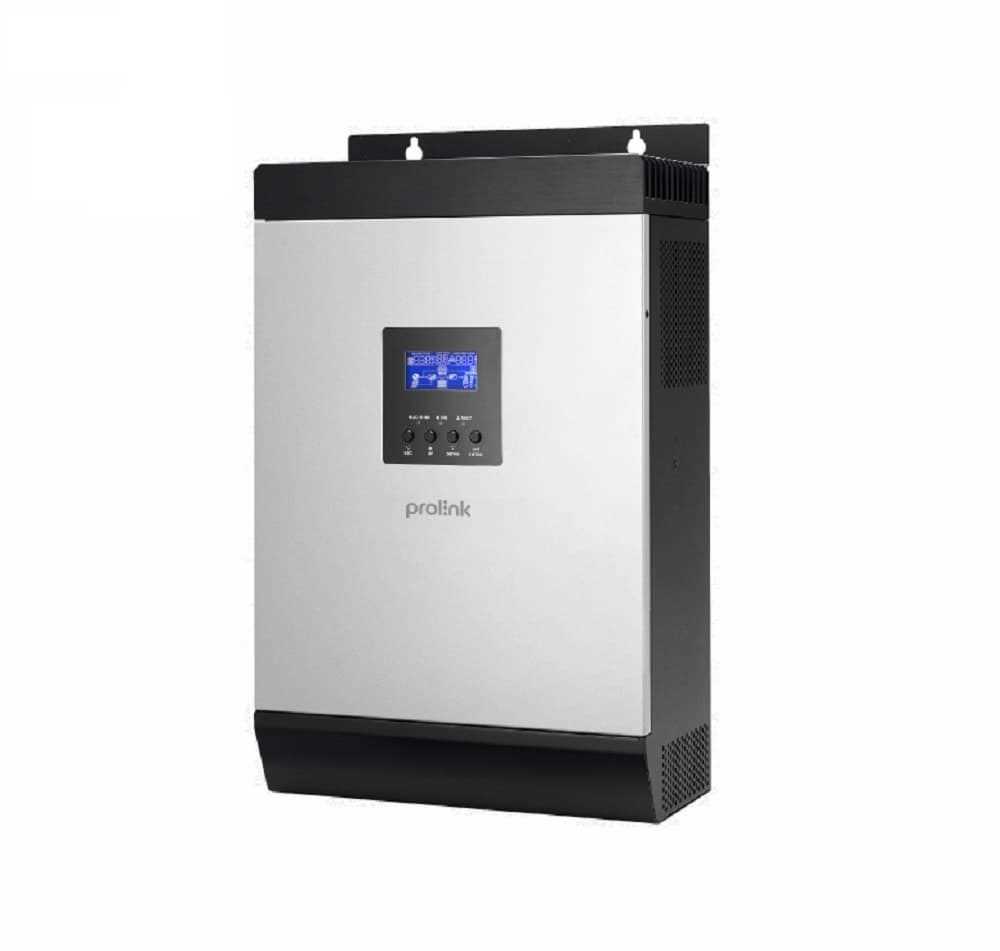

Prolink Haus 5KM-48 Off-Grid Solar Inverter Power Supply - Grey / Black


Brand:

Specifications

       Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Prolink
  • Model: Haus 5KM-48

    Specification:
    GENERAL:
  • Rated Power: 5000VA / 5000W
  • Parallel Capability: Yes, 9 units
  • Dimension: 120 x 295 x 468mm (D x W x H)
  • Net Weight: 13.5 Kgs

    INPUT:
  • Voltage: 230VAC
  • Selectable Voltage Range:
  • 170 ~ 280 VAC (For Personal Computers)
  • 90 ~ 280 VAC (For Home Appliances)
  • Frequency Range: 50Hz / 60Hz (Auto sensing)

    OUTPUT:
  • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
  • Surge Power: 10000VA
  • Efficiency (Peak): 90%
  • Transfer Time:
  • 10 ms (For Personal Computers)
  • 20 ms (For Home Appliances)
  • Waveform: Pure sine wave

    BATTERY:
  • Battery Voltage: 48 VDC
  • Floating Charge Voltage: 54 VDC Max: 58VDC (optional 64VDC, please check with sales)
  • Overcharge Protection: 60 VDC (optional 66VDC, please check with sales)

    SOLAR & AC CHARGER:
  • Maximum PV Array Power: 4000W
  • MPPT Range @ Operating Voltage: 60 VDC~115 VDC
  • Maximum PV Array Open Circuit Voltage: 145VDC
  • Maximum Solar Charge Current: 80A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 140A
  • Maximum Efficiency: 98%
  • Standby Power Consumption: 2W



Features

Brand:
Prolink
Color:
Grey & Black
Conditions:
New
Warranty:
1 Year
