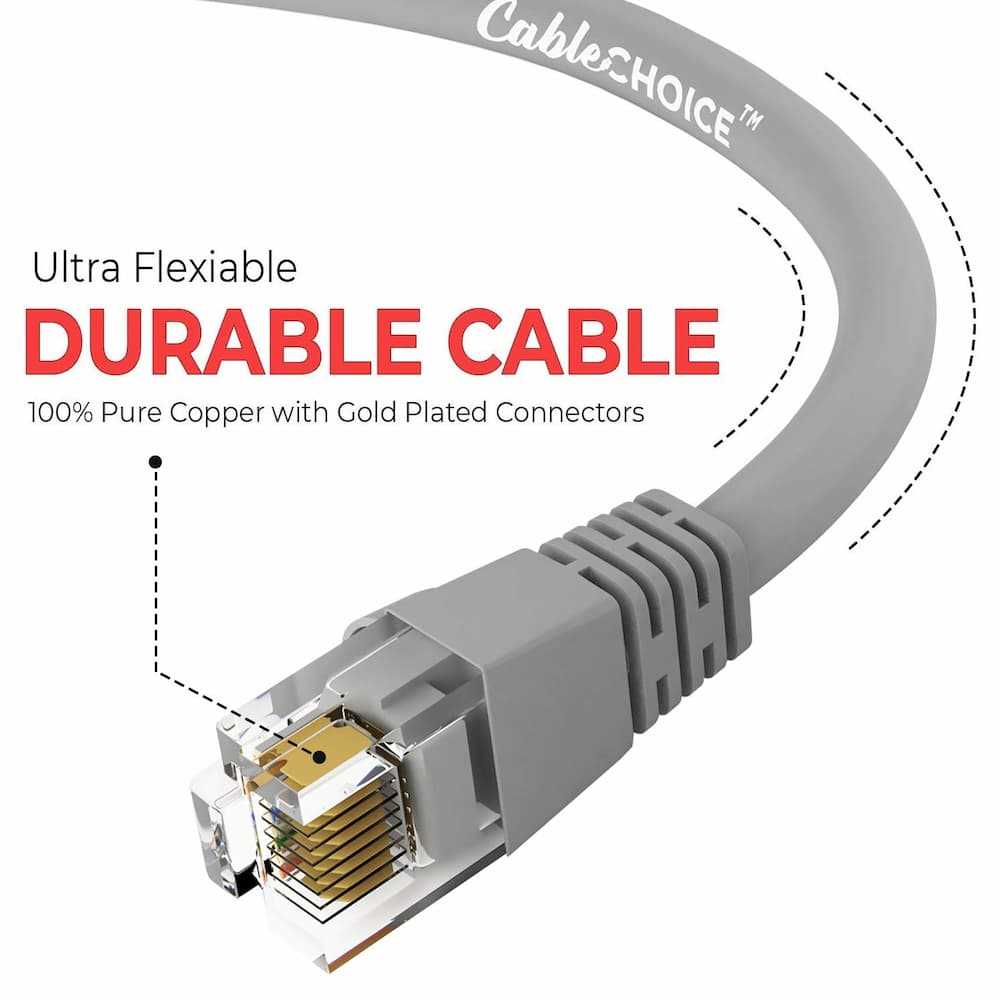

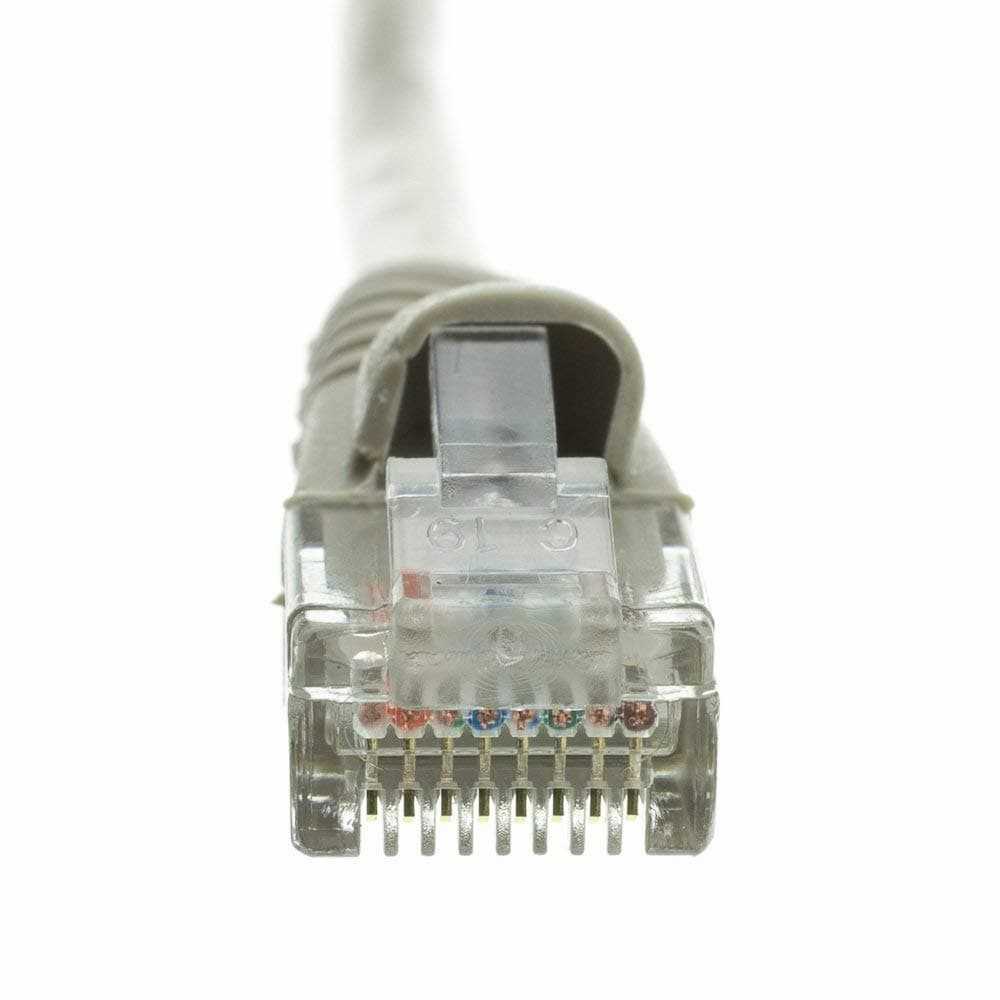

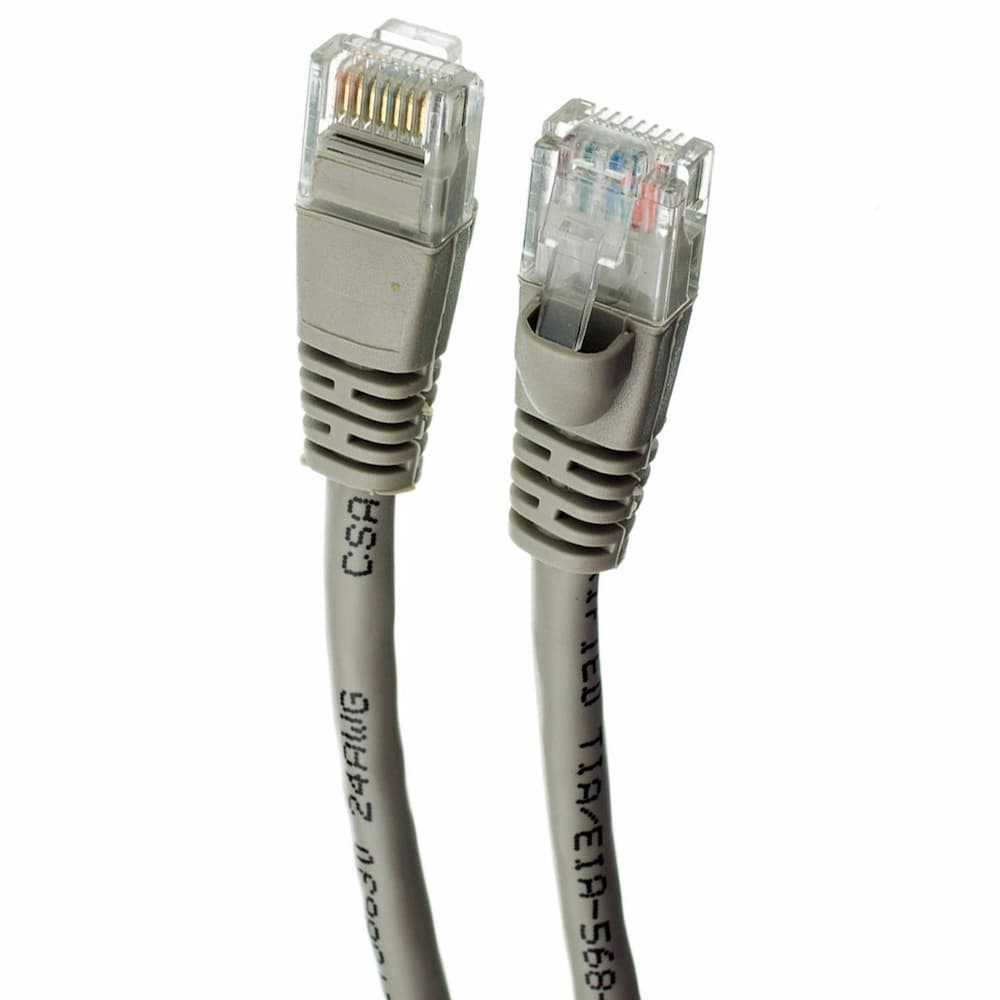

Prolink CAT5E Network Cable - Gray


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Warranty: 1 Year
  • Brand: Prolink
  • Model: CAT5E
  • UPC Code: 846568010064
      Specification
  • Conductor: 24 AWG (4 pair)
  • Conductor Diameter: 0.51±0.01mm
  • Insulation: High Density Polyethylene
  • Insulation Diameter: 0.93±0.02mm
  • Pairs: 2 Insulated conductors twisted together
  • Cable Diameter: 5.1±0.15mm
  • Printing: Each meter printed with sequential length counter
  • Jacket Nominal Wall Thickness: 0.7±0.01mm
  • Insulation Nominal Wall Thickness: 0.2mm
  • ELECTRICAL PROPERTIES
  • Characteristic Impedance: 64kHz: 125?±20% 1~250MHz: 100?±15%
  • Conductor Resistance: MAX 18?/100m at 20°C
  • Insulation Resistance: MIN 150M?/KM
  • Mutual Capacitance: MAX 5600pf/100M
  • Resistance Unbalance: MAX 5%
  • Resistance Unbalance: MAX 300pf/100M
  • Dimension & Weight
  • Dimension: 360 x 360 x 220mm (L x W x H)
  • Weight: 7.56kg/roll (Cable Only)


Features

Brand:
Prolink
Color:
Gray
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
846568010064
Warranty:
1 Year
