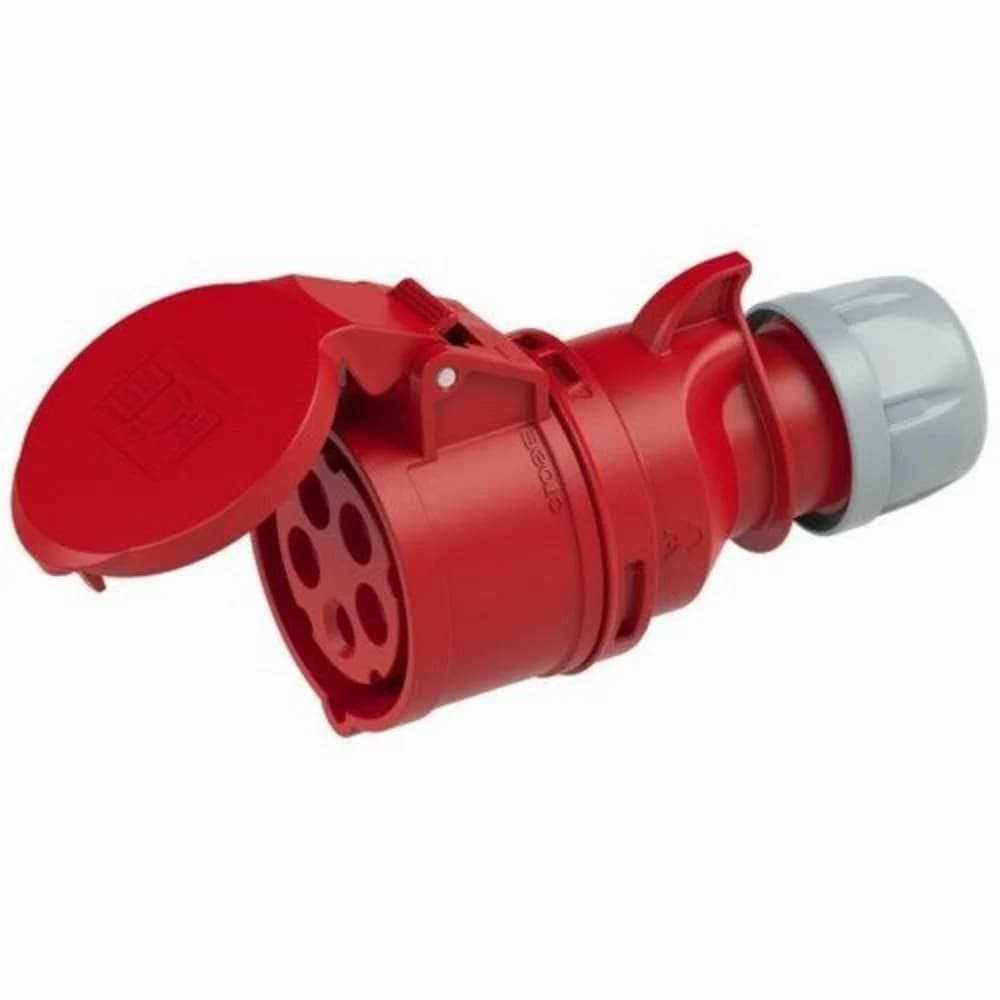

PCE Electric 224-6 CEE Industrial Mobile Connector


Brand:
PCE

Specifications

      Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: PCE
  • Model: 224-6
  • Color: Red
     Specification:
  • Applicable Standard: IEC 60309
  • Voltage Rating: 380-415V
  • Rated Current: 32A
  • Frequency Rating: 50/60HZ
  • Construction: 3P + E
  • Earth Position: 6h
  • Gland Entry: Ø 20mm
  • IP Rating: IP 44
      Details:
  • PCE has a dynamic range of CEE Connectors ranging from 16A to 125A, 3 to 5 Pole and available in IP44 or IP67 versions.
  • A robust design that can challenge harsh environments.
  • Quick and easy assembly that saves time and energy.
  • High Thermal Stability (self-extinguishing).
  • High weathering resistance
  • UV-resistance according ISO 4892-2
  • Very good chemical resistance to various chemicals
  • Free from cadmium and halogen
  • Brass Contacts – Nickel Plated contacts available on request

Features

Brand:
PCE
Color:
Red
Conditions:
New
Warranty:
1 Year
