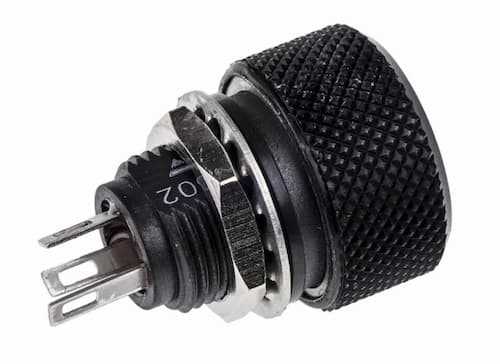

P16NM103MAB15 Rotary Potentiometer, Cermet, 10 kohm, 1 Turns, Linear, 1 W, 20 Percent P16 Electronic Components (Black)


Brand:
No Brand

Specifications

   Product details:
  • Brand: No Brand
  • Warranty: No Warranty
   Features
  • Test according to CECC 41000 or IEC 60393-1
  • P16: Version for professional and industrial applications (cermet) 1 W at 40 °C
  • PA16: Version for professional audio applications (conductive plastic) 0.5 W at 40 °C
  • Compact (integrated)
  • High dielectric strength: 2500 VRMS
  • Fully sealed and panel sealed
  • Metallic or plastic knob options
  • Custom knob on request
   Specifications
  • Lead Finish: Tin
  • Max Processing Temp: 260 °C
  • Mounting: Panel Mount
  • MSL Level: MSL 1 Unlimited
  • Operating Temperature: -40 to 125 °C
  • Package Type: Panel Mount/Solder Lug
  • Power Rating: 1 W
  • Product Diameter: 16mm
  • Product Dimensions: 24.5 mm
  • Resistance Value: 10 kOhm
  • Shaft Diameter: 16 mm
  • Technology: Cermet
  • Temperature Coefficient: 150 ppm/°C
  • Termination Method: Solder Lug
  • Tolerance: 20%
  • Type: Rotary
