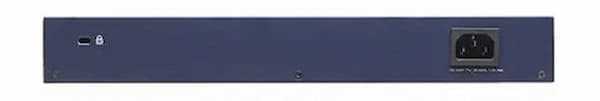

Netgear JGS524-200EUS ProSafe 24-Ports Unmanaged Gigabit Ethernet Switch


Brand:

Specifications

   Product details:
  • Lifetime Warranty
  • BrandNetgear
  • Model: JGS524-200EUS
   Specifications:
   Network Ports:

  • 10/100/1000 Mbps twisted-pair RJ-45 ports
   Performance:
  • Switching bandwidth: 48 Gbps
  • Forward rate (1000 Mbps port): 1,480,000 packets per sec
  • Forward rate (100 Mbps port): 148,000 packets per sec
  • Forward rate (10 Mbps port): 14,800 packets per sec
  • Jumbo frames latency (1000 to 1000 Mbps): 20 ¥ìs max
  • Packet buffer memory: 2 Mb
  • MAC address database: 8,000
  • Mean time between failures (MTBF):
  • JGS524: 230,000 hours (~ 26 years
  • Acoustic noise: 40 dB
   Power Consumption:
  • 100-240V; 50-60 Hz; plug is localized to country of sale
  • JGS524: 16max
  • JGS516: 11max
   Standards Compliance:
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x flow control
   Status LEDs:
  • Unit: power
  • Per network port: Link, activity, speed
   Physical Specifications:
  • Dimensions (h x w x d): 43 x 330x 207 mm (1.7 x 13 x 8.2 in)
  • Weight: 1.62 kg (3.57 lb); JGS524: 1.72 kg (3.79 lb)
   Environmental Specifications:
  • Operating temperature: 0C to 50C (32F to 122F)
  • Operating humidity: 90% maximum relative humidity, non-condensing
  • Storage temperature: -20C to 70C (-4F to 158F)
  • Storage humidity: 10 to 95% relative humidity
   Electromagnetic Compliance:
  • CE mark, commercial
  • FCC Part 15 Class A
  • VCCI Class A
  • EN 55022 (CISPR 22), Class A, EN 50082-1,
  • EN 55024
  • C-Tick
   Package Contents:
  • 24-port Gigabit Ethernet Switch JGS524
  • Power cord
  • Installation guide
  • Rack-mount kit
  • Warranty/ Support Information Card


Features

Brand:
Netgear
GTIN, UPC, EAN, JAN or ISBN:
606449064261
Warranty:
Lifetime
