Home Networking Power MTP UPC Female to 4 MDC Duplex 8 Type-B Plenum OS2 9/125 Single Mode Elite Breakout Cable with Fibers Optic (Yellow)

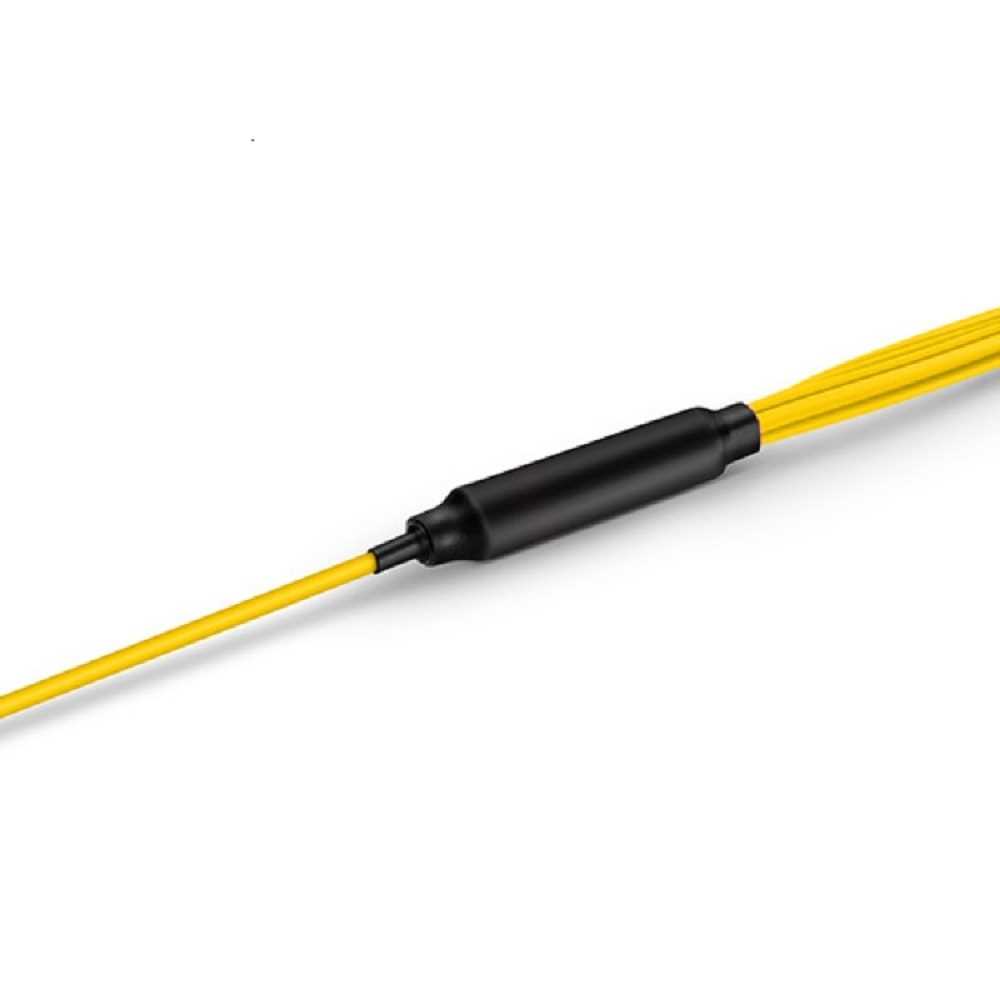

MTP UPC Female to 4 MDC Duplex 8 Type-B Plenum OS2 9/125 Single Mode Elite Breakout Cable with Fibers Optic (Yellow)


Brand:
No Brand

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)

    KEY FEATURES
  • Corning SMF-28 Ultra Fiber with 10mm Min. Bend Radius
  • 3x Fiber Cabling Density over LC Connectors
  • Directconec™ Push-pull Boot for Effortless Connector Insertion and Extraction
  • A/B Polarity Easy and Secure, Toolless Changeable
  • Telcordia GR-326 and TIA-568 Compliant

    SPECIFICATIONS
  • Connector A: US Conec MTP® Female (Pinless)
  • Connector B: US Conec MDC UPC
  • Fiber Mode: OS2 SMF 9/125µm
  • Wavelength: 1310nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • MTP Connector IL: 0.35dB Max (0.15dB Typ.)
  • MDC Connector IL: =0.3dB
  • MTP Connector RL: =60dB
  • MDC Connector RL: =50dB
  • Cable Jacket: Plenum (OFNP)
  • Fiber Count: 8 Fibers
  • Jacket OD: 3.0mm
  • Fan-Out Diameter: 2.0mm
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Storage Temperature: -40 to +85°C (-40 to 185)
  • Operating Temperature: -10 to +70°C (14 to 158)

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
