MTP (Female) To MTP (Female) LC UPC Duplex OS2 9/125 Single Mode Breakout Cable, With 24 Fibers , Type A, Elite, LSZH - Yellow


Brand:

Specifications

         Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
        Specification:

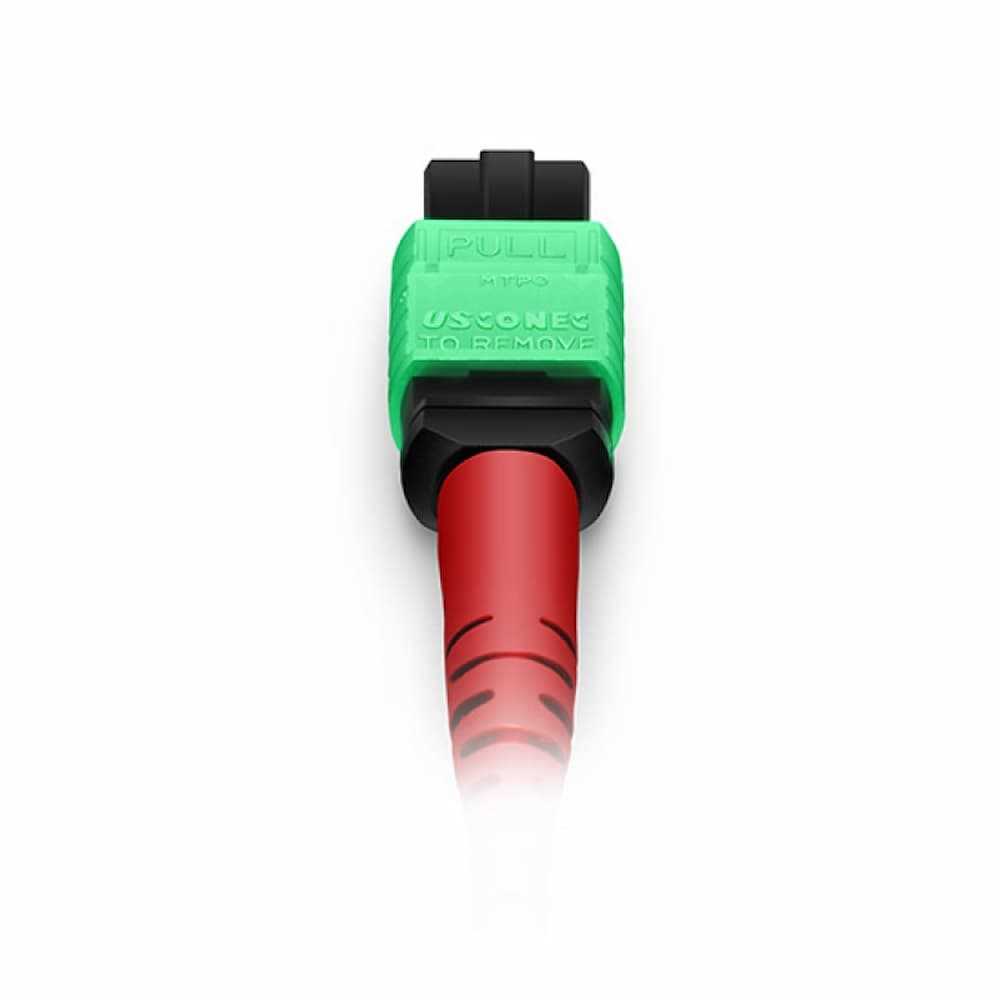

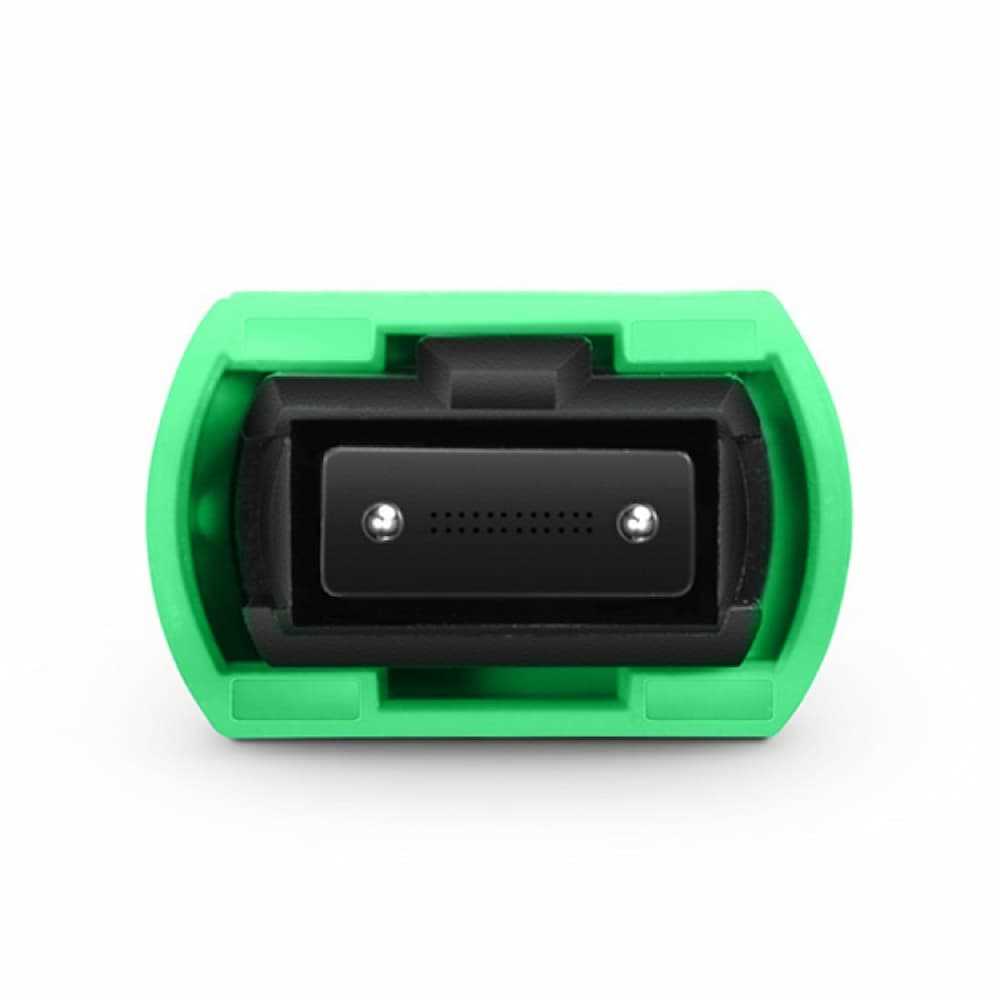

  • Connector A: US Conec MTP® APC Female (Pinless)
  • Connector B: LC UPC Duplex
  • Fiber Mode: OS2 SMF 9/125µm
  • Wavelength: 1310/1550nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • MTP Connector IL: 0.35dB Max (0.15dB Typ.)
  • Cable Jacket: LSZH
  • Fiber Count: 24 Fibers
  • Jacket OD: 3.0mm

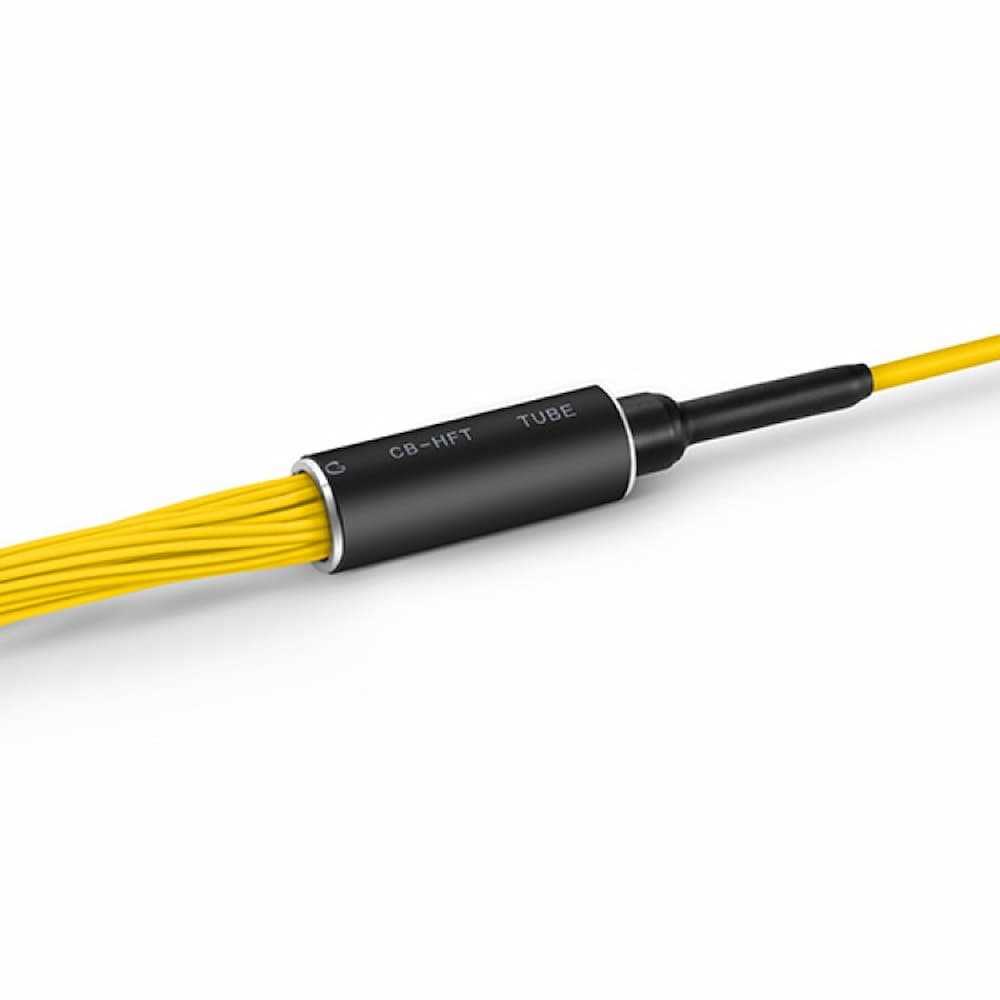

  • Fan-Out Diameter: 2.0mm
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80N/240N
  • Storage Temperature: -40 to +85°C
  • Operating Temperature: -10 to +70°C







Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
