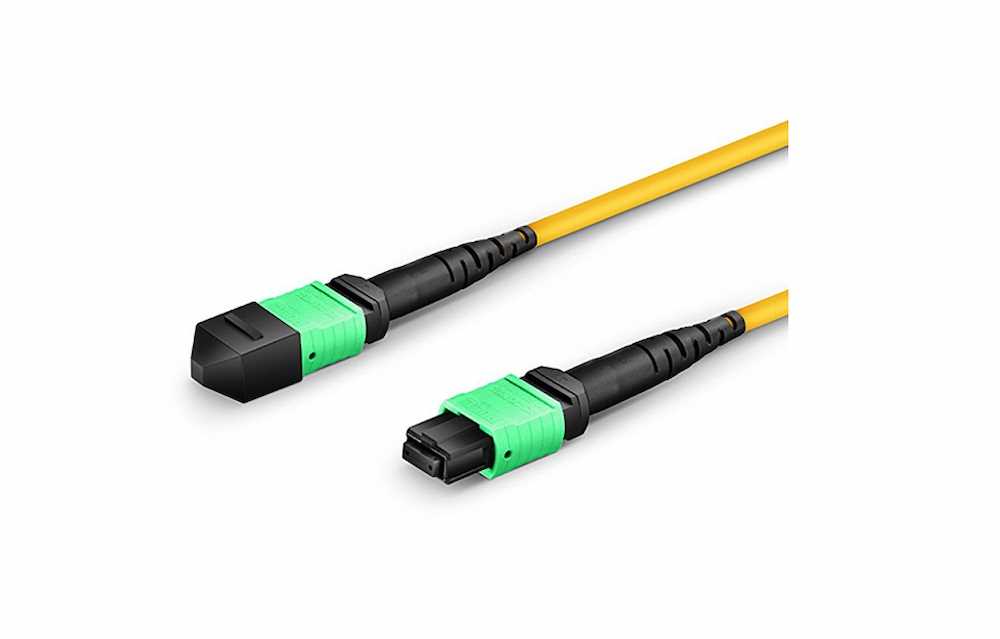

MTP Female to Female OS2 9/125 Single Mode Trunk Cable, Type A, Elite, LSZH - Yellow


Brand:

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Color: Yellow
      Specification:

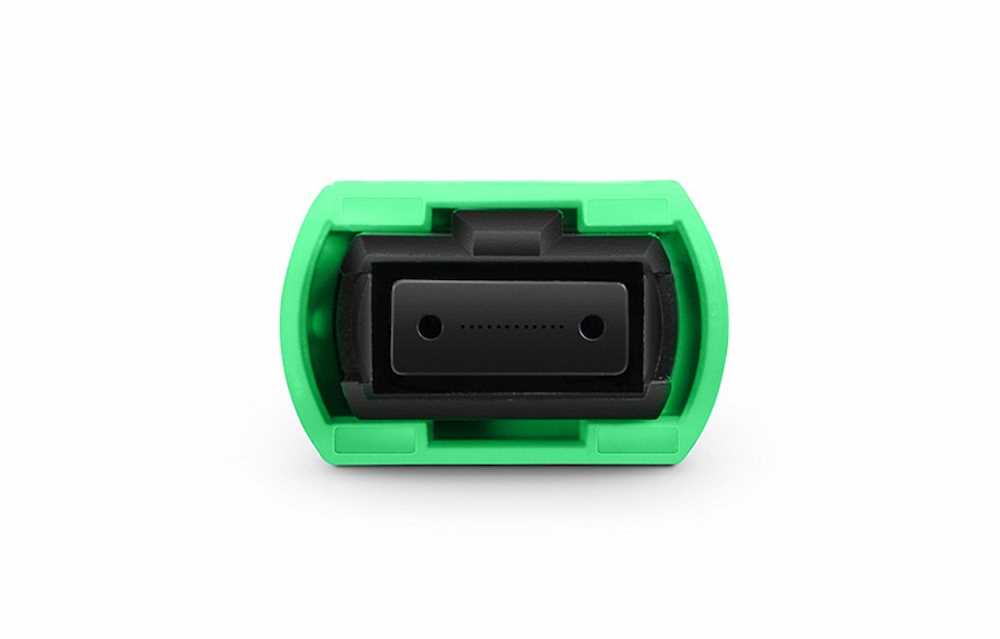

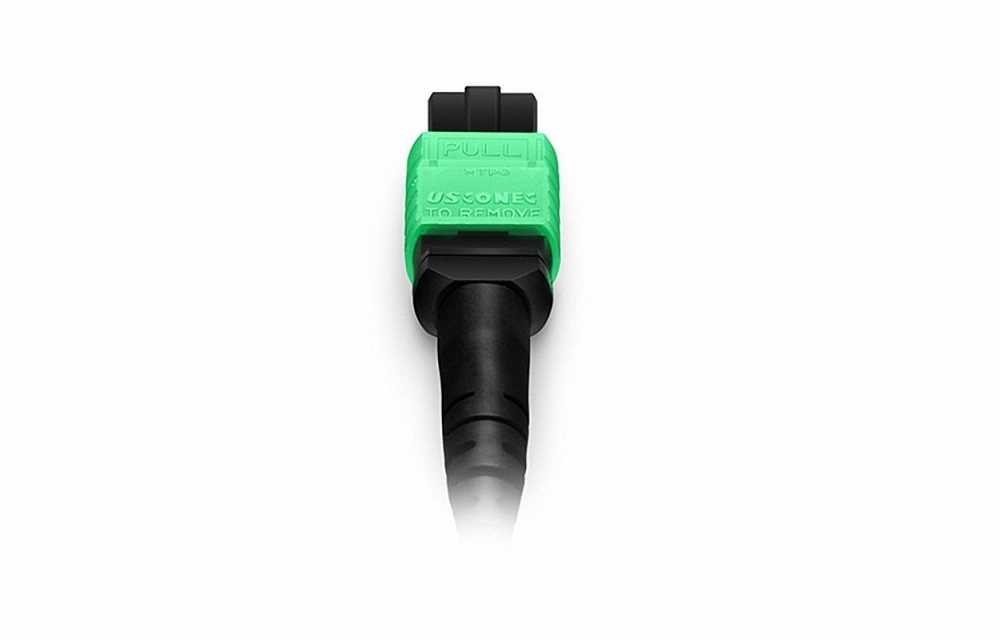

  • Connector A: US Conec MTP Female
  • Connector B: US Conec MTP Female
  • Fiber Mode: OS2 9/125µm SM
  • Wavelength: 1310/1550nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1
  • Polish Type: APC to APC
  • Mini Bend Radius: 10mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =60dB
  • Jacket OD: 3.0mm
  • Cable Jacket: LSZH
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to +70°C
  • Storage Temperature: -40 to +85°C







Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
