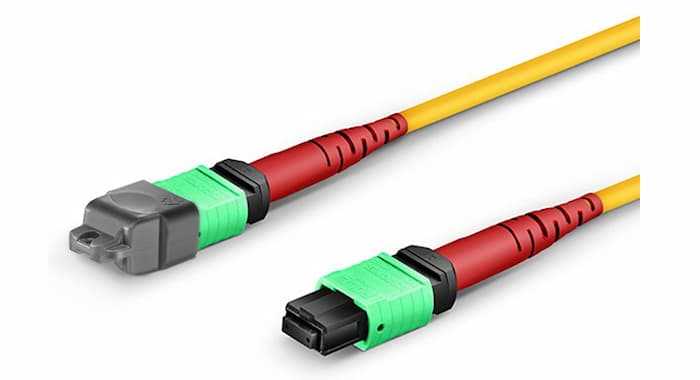

Home Networking Wireless Accessories MTP- 24 (Female) to MTP- 24 (Female) OS2 Single Mode Elite Trunk Cable with 24 Fibers, Type A, Plenum (OFNP) | Yellow

MTP- 24 (Female) to MTP- 24 (Female) OS2 Single Mode Elite Trunk Cable with 24 Fibers, Type A, Plenum (OFNP) | Yellow


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • BrandNo Brand
   Specifications:

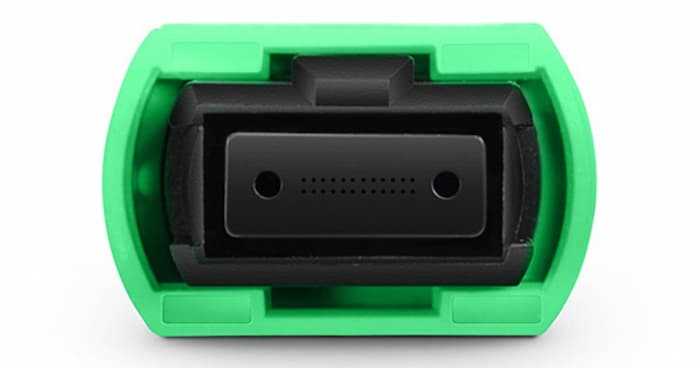

  • Connector A: US Conec MTP® Female (Pinless)
  • Connector B: US Conec MTP® Female (Pinless)
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Glass Fiber: Corning SMF-28® Ultra
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Polish Type: APC to APC
  • Minimum Bend Radius: 10mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =60dB
  • Attenuation at 1310nm: =0.32dB/km
  • Attenuation at 1550nm: =0.18dB/km
  • Jacket OD: 3.0mm
  • Cable Jacket: Plenum (OFNP)
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to 70°C (14 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)



Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
