MTP-24 (Female) to MTP-24 (Female) OM4 Multimode Elite Trunk Cable with 24 Fibers, Type A, Plenum (OFNP) | Magenta


Brand:

Specifications

   Product details:
  • Brand: No Brand
  • 1 Year Warranty
   Highlights:
  • US MTP® Connector with Optimal 0.15dB Typ. IL
  • Corning ClearCurve® Fiber with 7.5mm Min. Bend Radius
  • OFNP (Plenum) Fire Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Ideal for 40/100G Indoor Connections

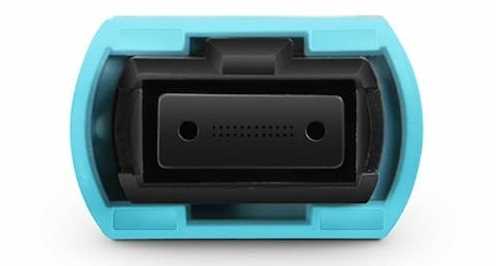

  • Connector A: MTP® Female (Pinless)
  • Connector B: MTP® Female (Pinless)
  • Fiber Mode: OM4 50/125µm
  • Wavelength: 850/1300nm
  • 40/100G Ethernet Distance: 150m at 850nm
  • 10G Ethernet Distance: 400m at 850nm
  • Glass Fiber: RoHS Compliancy Status
  • Minimum Bend Radius: 7.5mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =20dB
  • Attenuation at 850nm: =2.3dB/km
  • Attenuation at 1300nm: =0.6dB/km
  • Jacket OD: 3.0mm
  • Cable Jacket: Plenum (OFNP)
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to +70°C (14 to 158°F)
  • Storage Temperature: -40 to +85°C (-40 to 185°F)


Features

Brand:
No Brand
Color:
Magenta
Conditions:
New
Warranty:
1 Year
