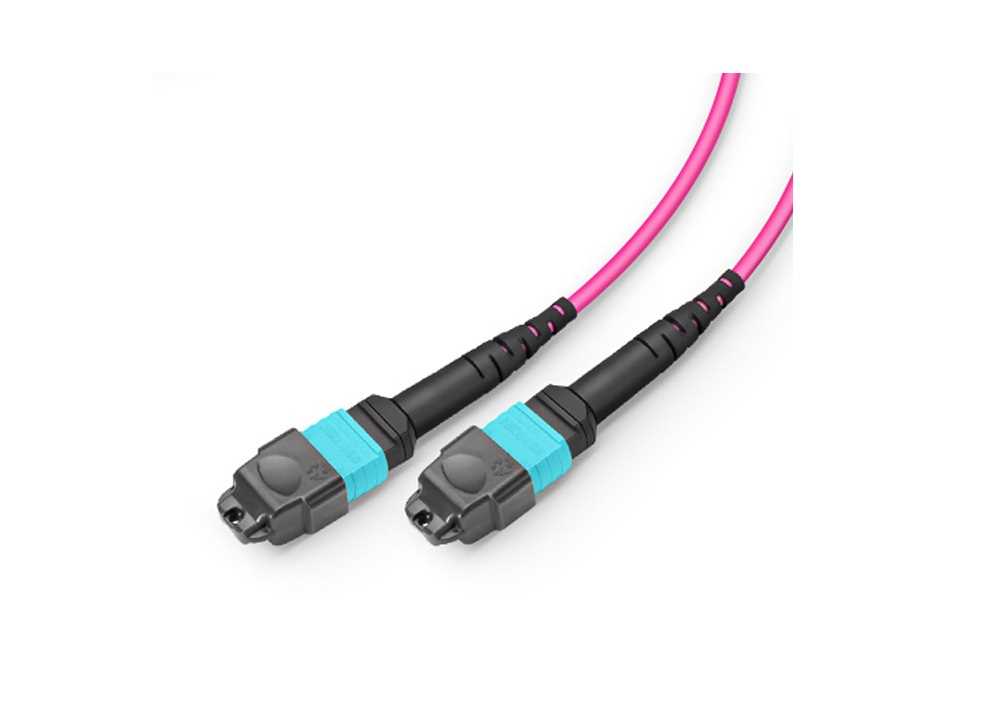

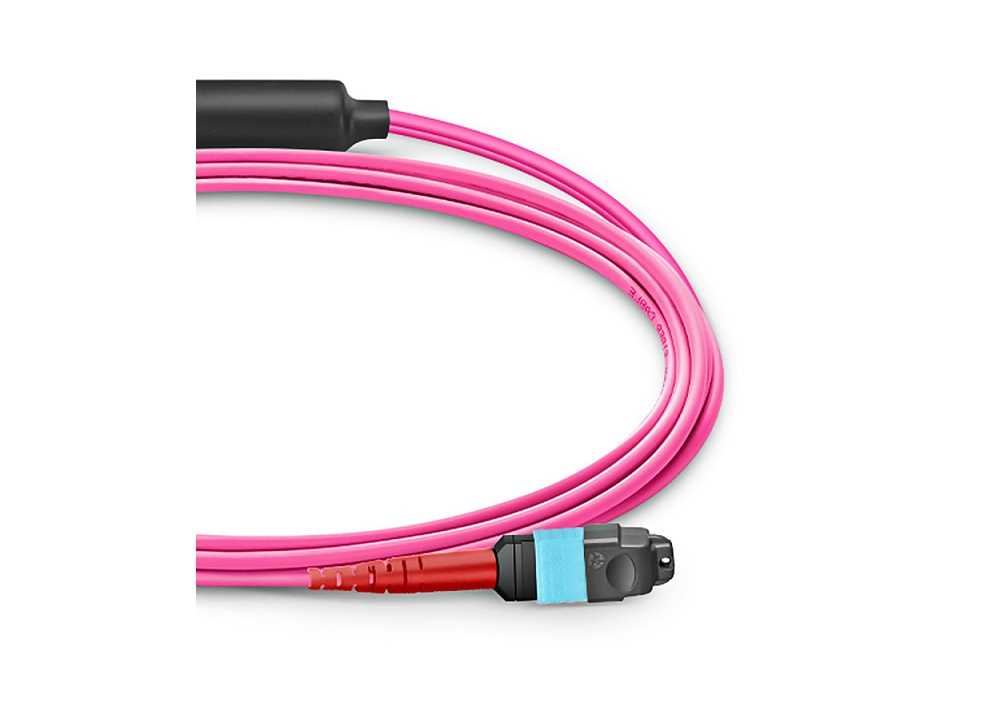

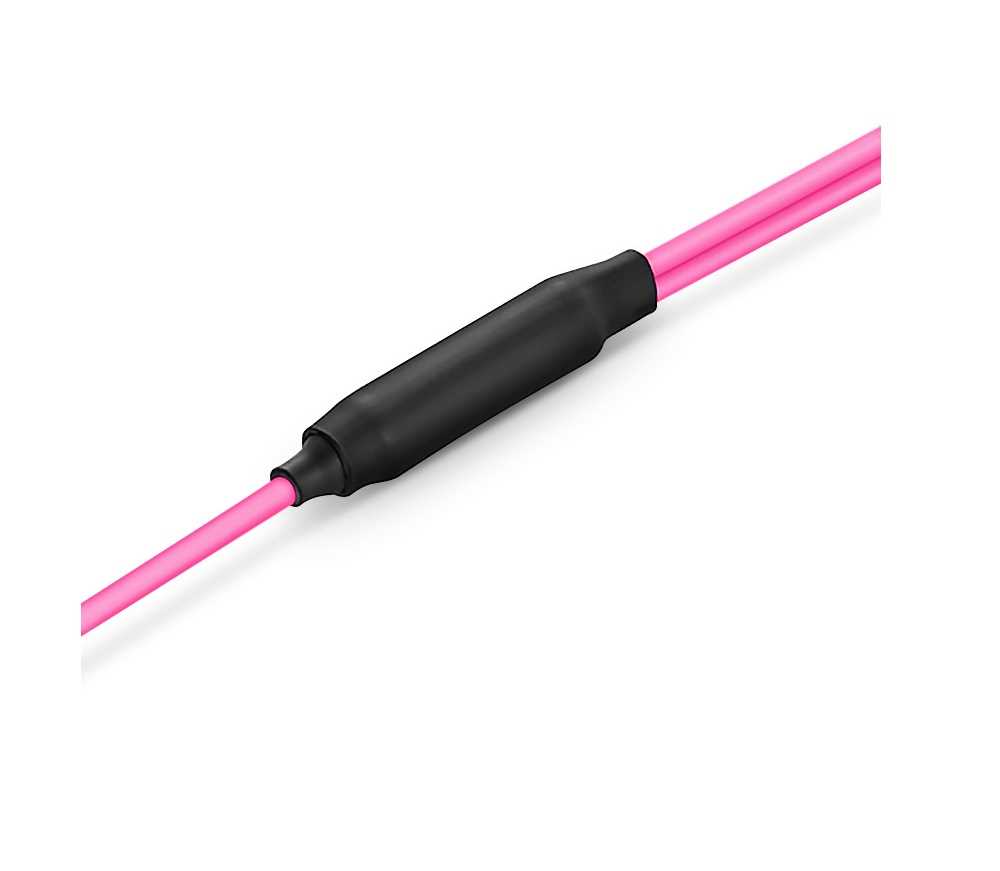

MTP-24 (Female) to 2 x MTP-12 (Female) OM4 Multimode Conversion Harness Cable, 24 Fibers, Type A, Plenum (OFNP) - Magenta


Brand:

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Color: Magenta
      Features:
  • US Conec MTP Connector with Optimal 0.35dB Type IL
  • Corning ClearCurve® Fiber with 7.5mm Min. Bend Radius
  • OFNP (Plenum) Fire Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Ideal for 40/100G Indoor Connections
     Specification:

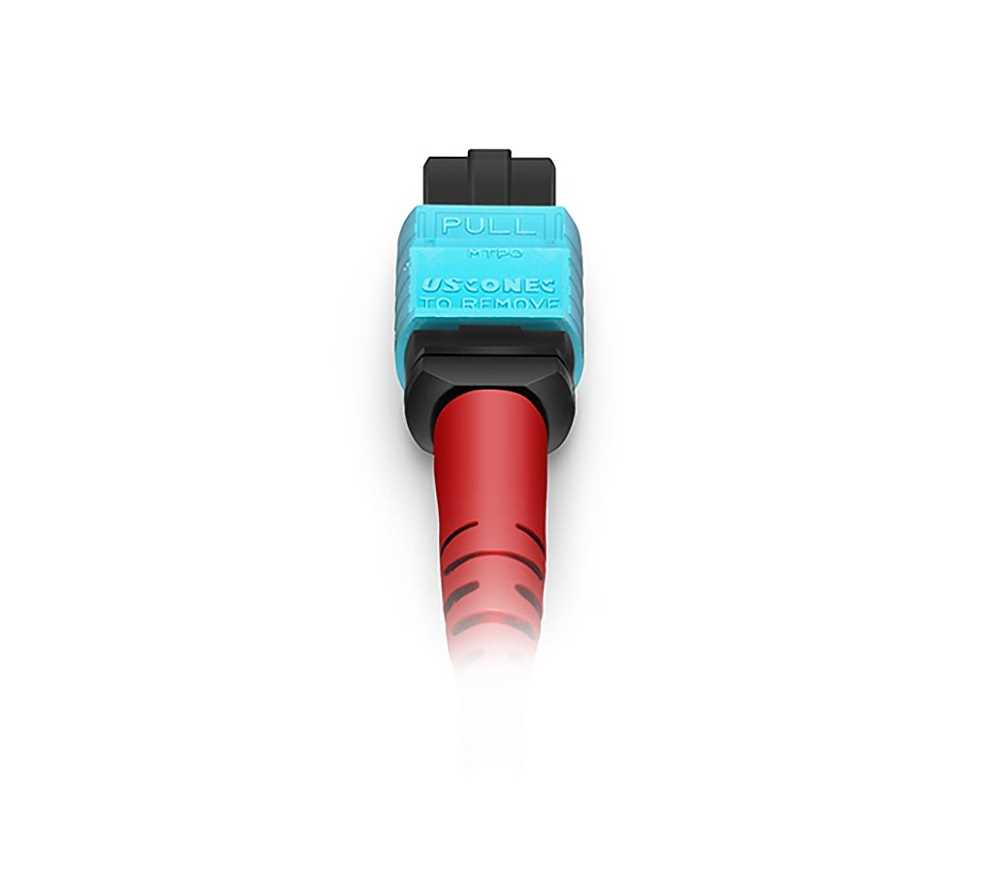

  • Fiber Connector: US Conec MTP
  • Gender: Female
  • Fiber Mode: OM4 50/125µm
  • Wavelength: 850/1300nm
  • Glass Fiber: Corning ClearCurve®
  • Polish Type: UPC to UPC
  • Insertion Loss: 0.35dB Typ.
  • Return Los: =20dB
  • Attenuation at 850nm: =2.3dB/km
  • Attenuation at 1300nm: =0.6dB/km
  • Cable Jacket: Plenum (OFNP)
  • Minimum Bend Radius: 7.5mm
  • Jacket OD: 3.0mm
  • Breakout Length: 0.5m
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to 70°C (14 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)









Features

Brand:
No Brand
Color:
Magenta
Conditions:
New
Warranty:
1 Year
