Home Networking Wireless Accessories MTP-16 APC (Female) To 8 LC UPC Duplex OS2 Single Mode Standard IL Breakout Cable, 16 Fibers, Plenum (OFNP), Yellow

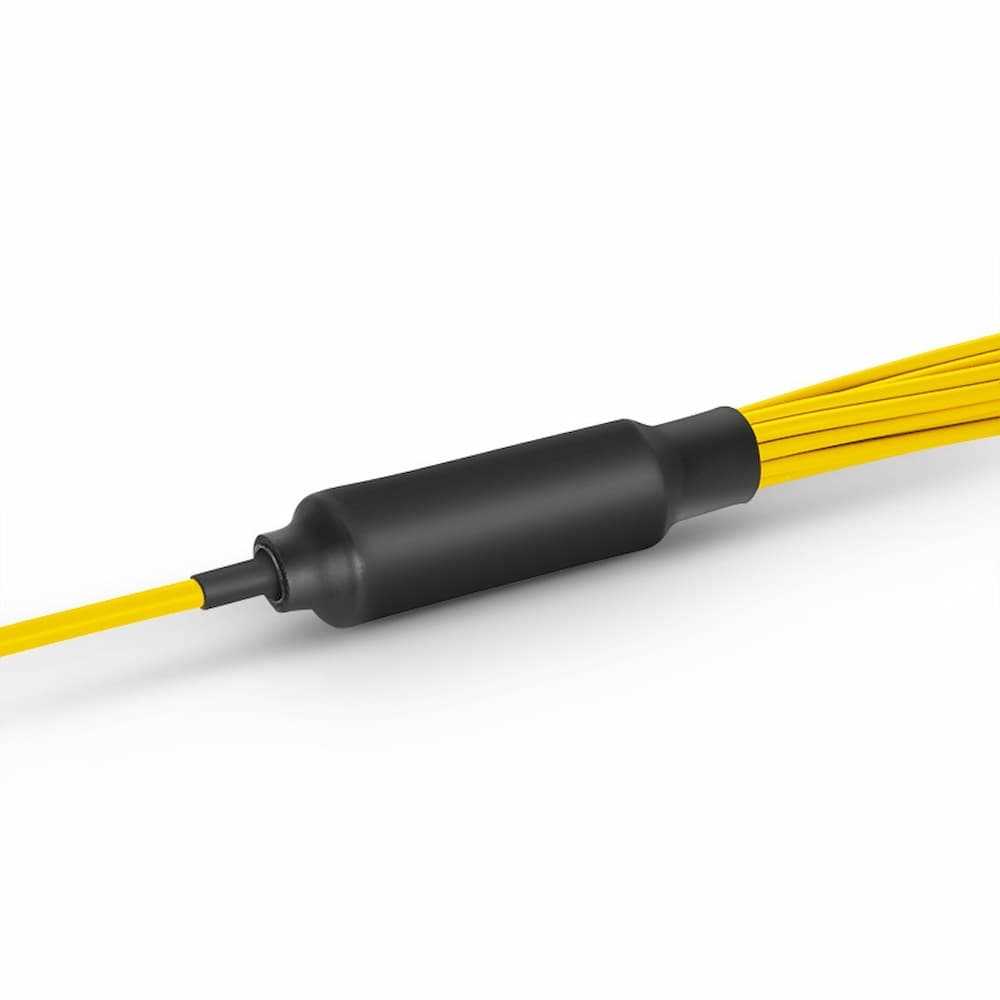

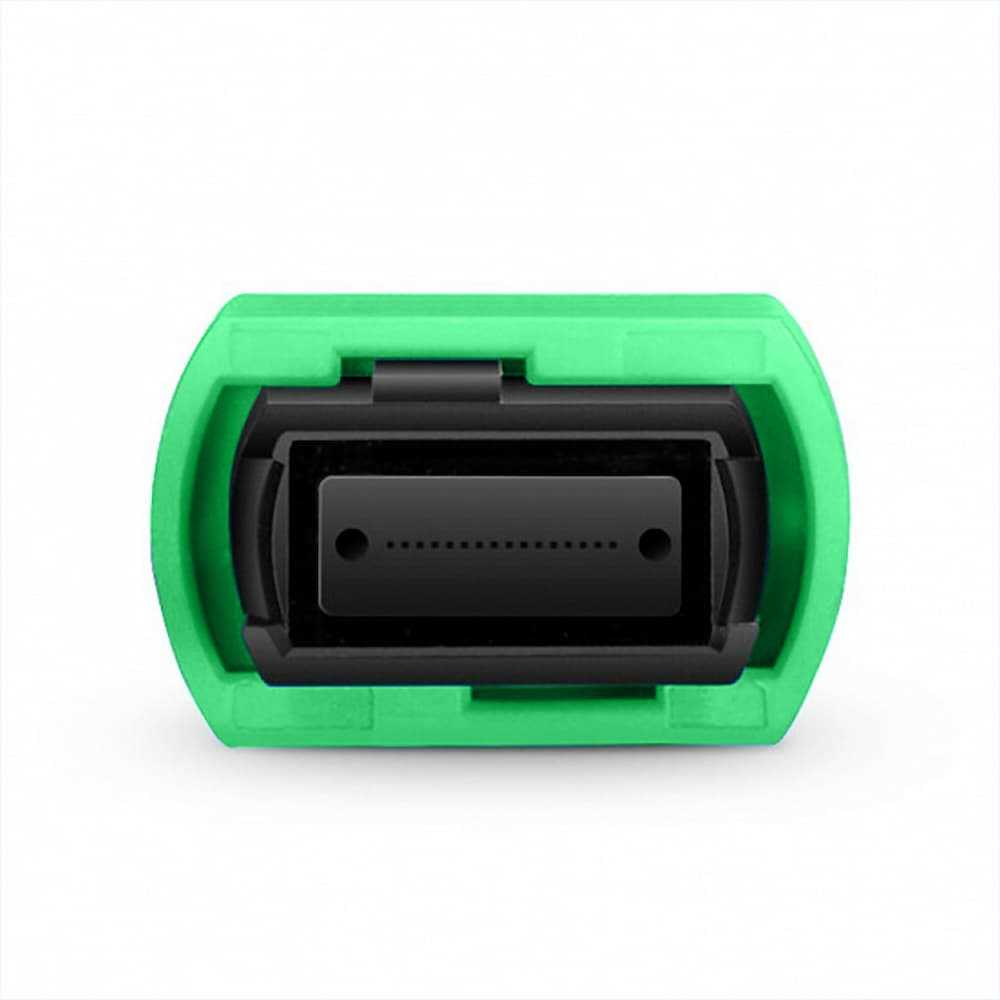

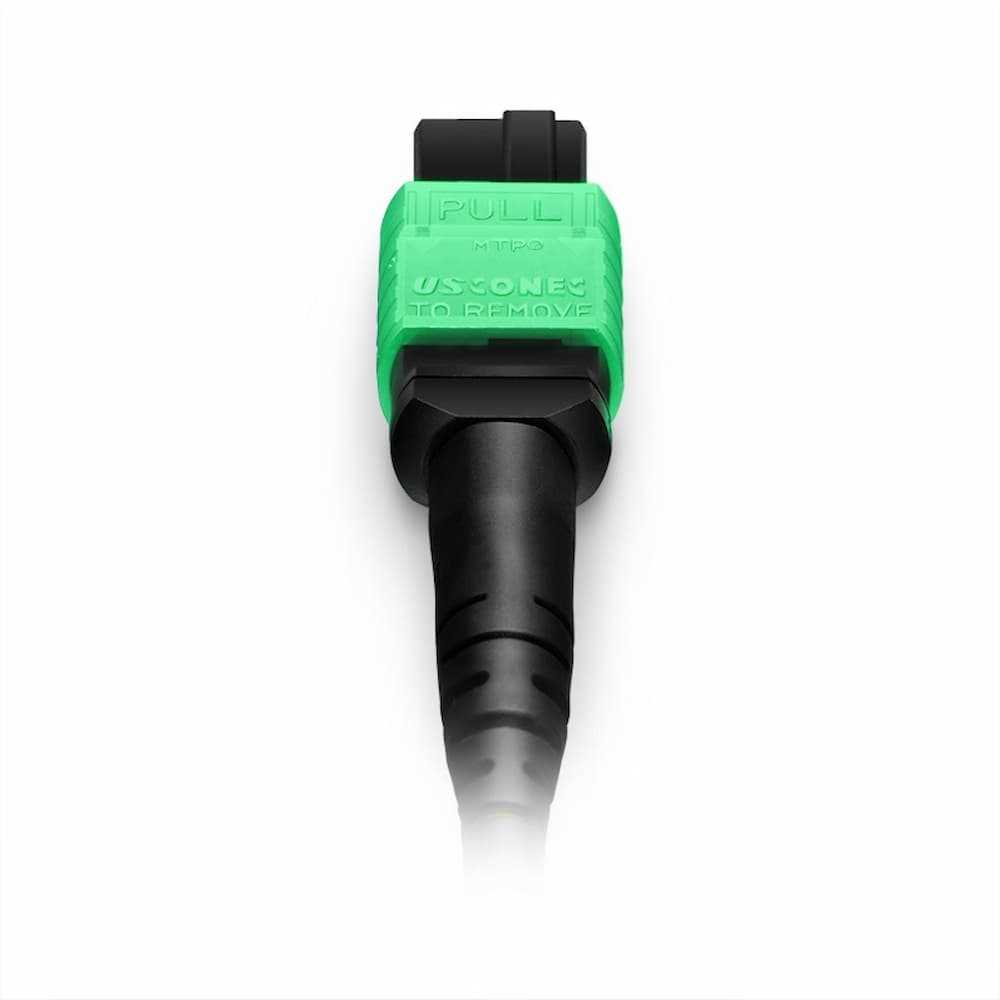

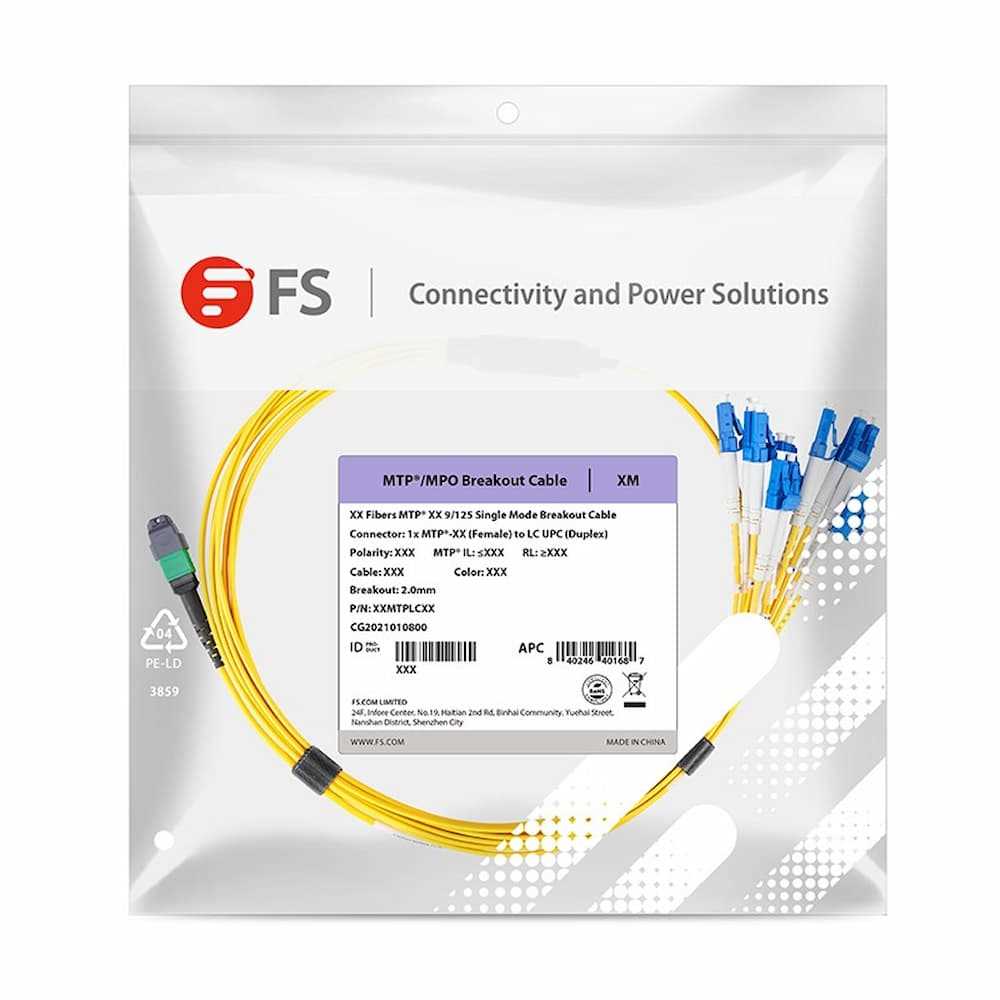

MTP-16 APC (Female) To 8 LC UPC Duplex OS2 Single Mode Standard IL Breakout Cable, 16 Fibers, Plenum (OFNP), Yellow


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
        Specification:

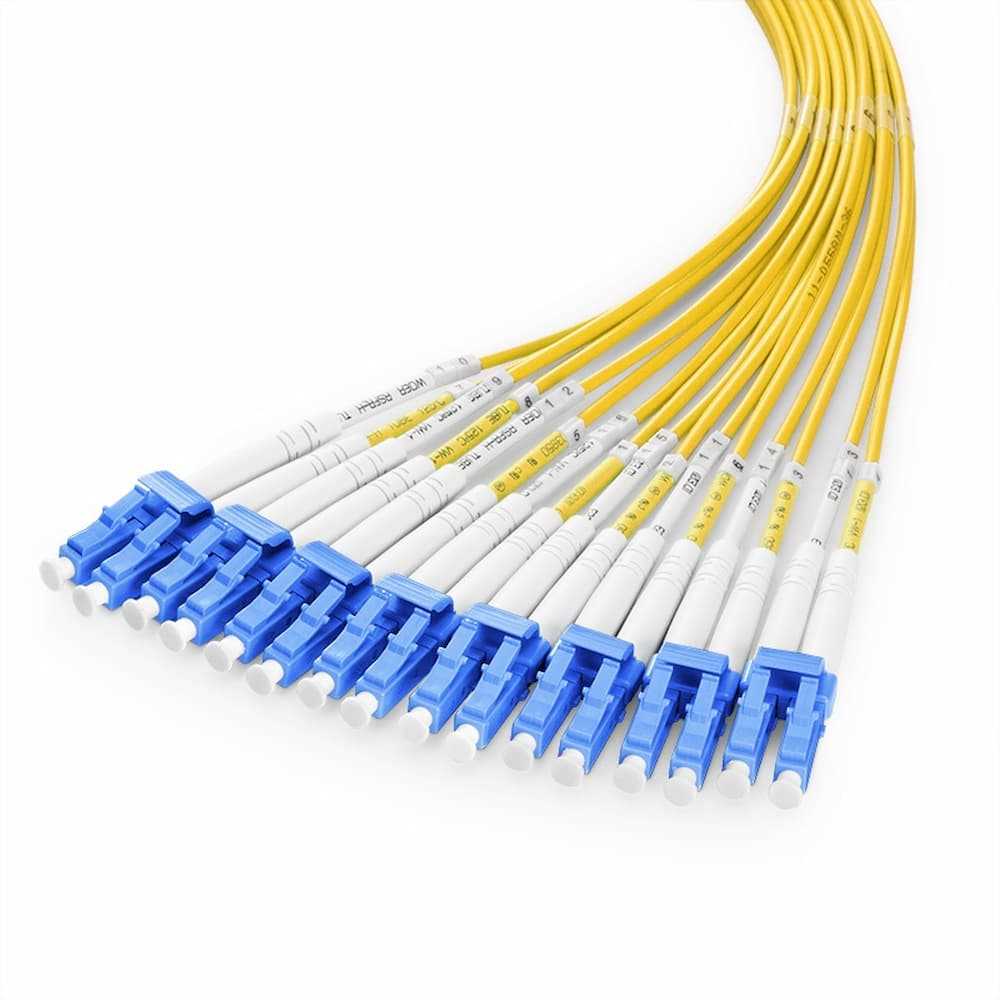

  • Connector B: LC UPC Duplex
  • Fiber Mode: OS2 SMF 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • MTP Connector IL: 0.75dB Max (0.35dB Typ.)
  • Cable Jacket: Plenum (OFNP)
  • Fiber Count: 16 Fibers
  • Jacket OD: 3.0mm
  • Fan-Out Diameter: 2.0mm
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Storage Temperature: -40 to +85°C (-40 to 185?)
  • Operating Temperature: -10 to +70°C (14 to 158?)












Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
