Home Networking Wireless Accessories MTP-12 OM4 Multimode HD BIF Breakout Cable, Elite, LSZH Bunch With 8-24 Fibers - Magenta

MTP-12 OM4 Multimode HD BIF Breakout Cable, Elite, LSZH Bunch With 8-24 Fibers - Magenta


Brand:

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Color: Magenta
      Specification:
  • Connector A: US Conec MTP Push Pull Tab

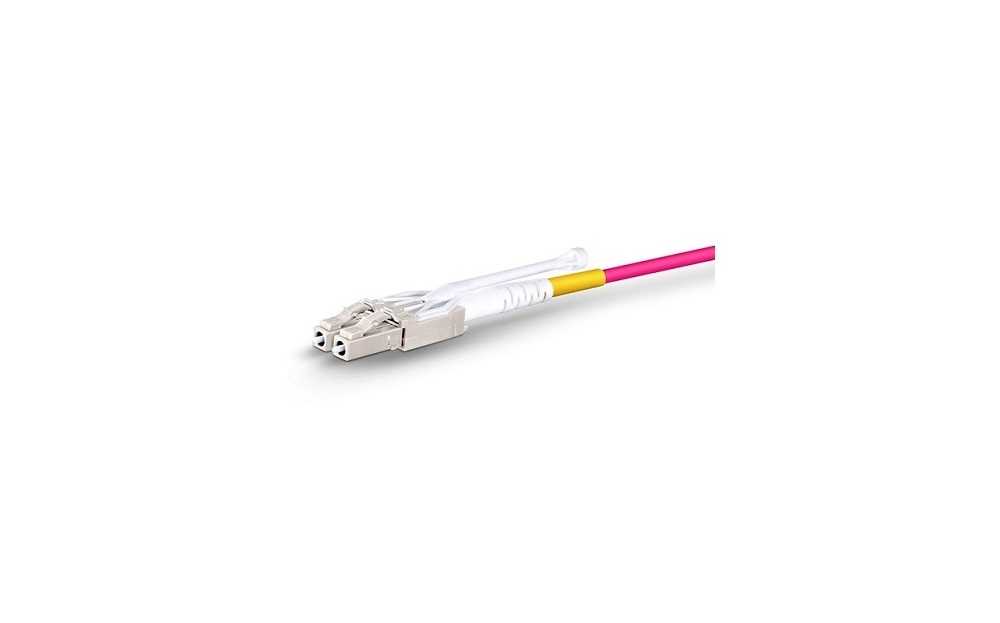

  • Connector B: LC Uniboot Duplex
  • Fiber Mode: OM4 50/125µm
  • Wavelength: 850/1300nm
  • Fiber Count: 8-24 Fibers
  • Cable Jacket: LSZH
  • MTP Connector IL: 0.35dB Max (0.15dB Typ.)
  • LC Connector IL: =0.2dB
  • MTP Connector RL: =20dB
  • LC Connector RL: =30dB
  • Trunk Diameter: 3.0mm-7.2mm
  • Fan-Out Diameter: 2.0mm
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to +70°C
  • Storage Temperature: -40 to +85°C







Features

Brand:
No Brand
Color:
Magenta
Conditions:
New
Warranty:
1 Year
