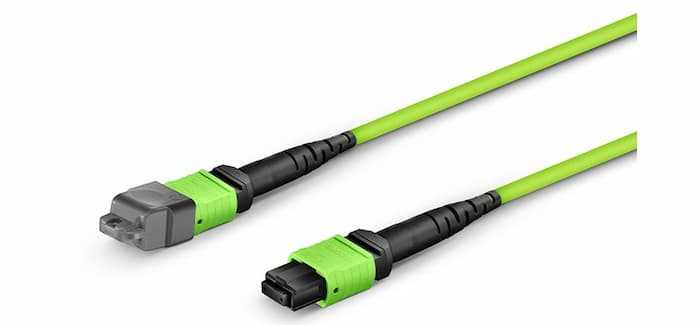

MTP-12 (Female) to MTP-12 (Female) OM5 Multimode Elite Trunk Cable with 12 Fibers, Type B, Plenum (OFNP) | Lime Green


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: No Brand
   Specifications:

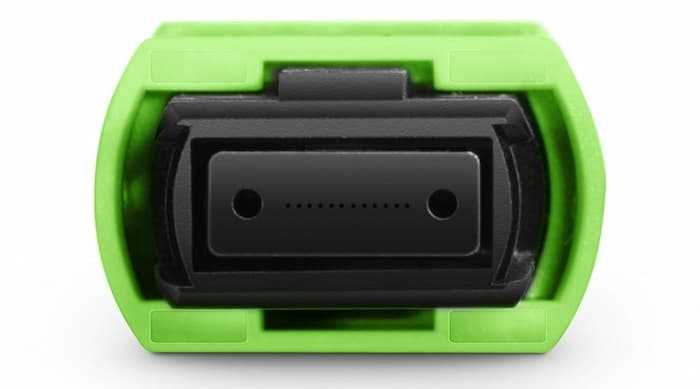

  • Connector Type: US Conec MTP®-MTP Female (Pinless)
  • Fiber Mode: OM5 50/125µm
  • Wavelength: 850/1300nm
  • 40G Ethernet Distance: 440m at 850nm
  • 100G Ethernet Distance: 150m at 850nm
  • RoHS Compliancy Status: Compliant
  • Minimum Bend Radius: 7.5mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =20dB
  • Effectivemodal Bandwidth (at 850nm): =4700mHz·km
  • Effectivemodal Bandwidth (at 953nm): =2470mHz·km
  • Jacket OD: 3.0mm
  • Cable Jacket: Plenum (OFNP)
  • Installation Tensile Load: 66N
  • Tensile Strength (Long/Short Term): 80/240N
  • Operating Temperature: -10 to 70°C (14 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)



Features

Brand:
No Brand
Color:
Lime Green
Conditions:
New
Warranty:
1 Year
