Home Networking Power Molex 217796-1052 KK 254 Receptacle Cable Assembly

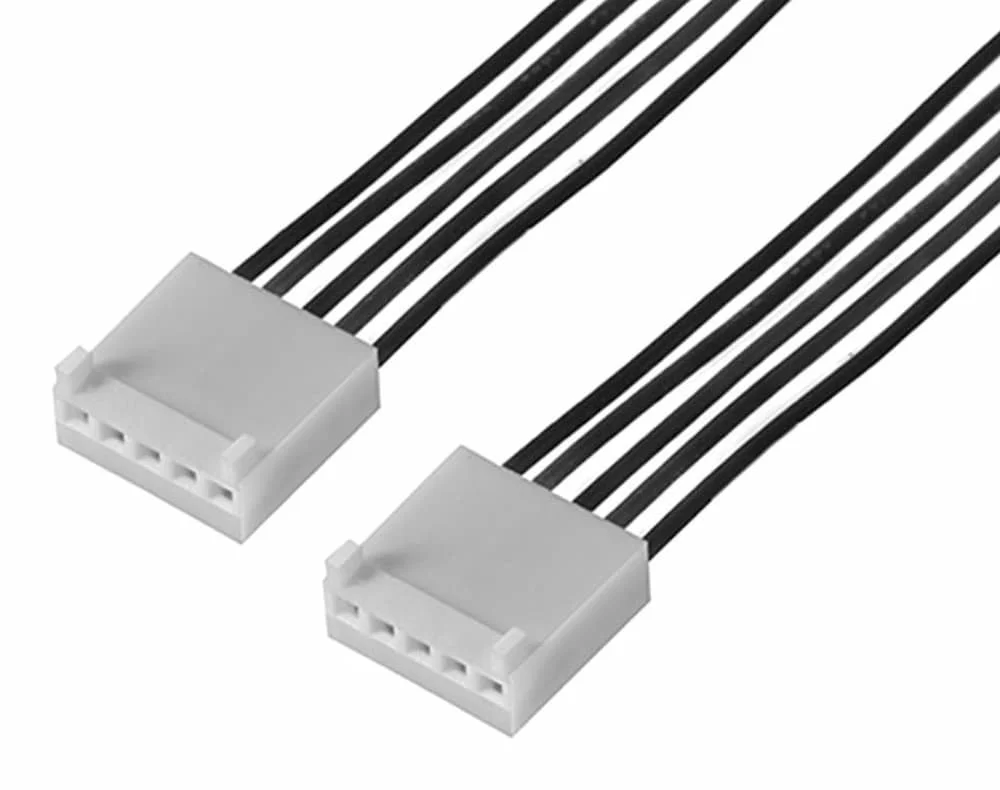

Molex 217796-1052 KK 254 Receptacle Cable Assembly


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Molex
  • Model: 217796-1052
  • Color: Black
        Specification:
  • 217796 series 2.54mm pitch, single row KK 254-to-KK 254 off-the-shelf (OTS) cable assembly
  • Enables highly automated termination processing and accurate PCB placement
  • UL file number: E29179, CSA file number: LR19980
  • Maximum voltage of 500VAC/(600VDC), maximum current up to 4A
  • Maximum durability of 25 cycles
  • Nylon housing, brass contact, tin plating
  • Operating temperature range from -40 to +105°C
  • Mates with KK254 PCB headers 42375, 42377, 42376, 4030, 6373, 6410, 1718 56, 171857
  • UL 11028 wire/cable type
  • Crimp or compression termination style




Features

Brand:
Molex
Conditions:
New
Warranty:
No Warranty
