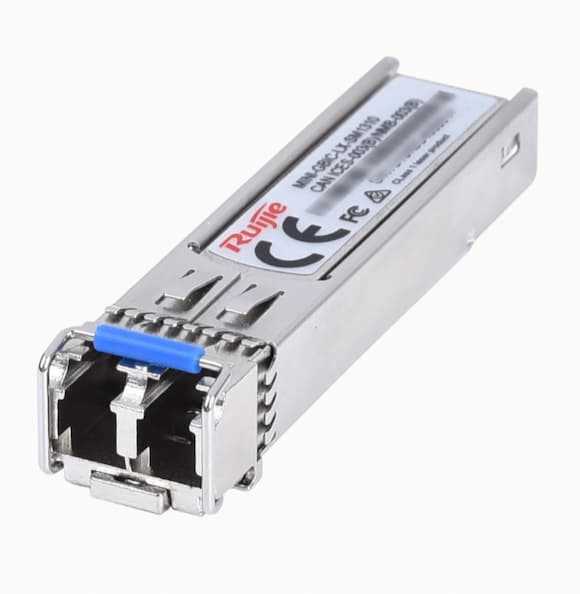

Reyee MINI-GBIC-LX-SM1310 1G Single-Mode SFP Module

• Switch-to-Switch Fiber Links: The 1000BASE-LX specification and 10km single-mode reach support connections between compatible network switches.
• Router Fiber Connectivity: The SFP form factor supports optical uplinks on routers equipped with compatible SFP interfaces.
• Campus Network Links: Single-mode fiber reach supports connections between network locations across a campus, subject to the 10km link limit.
• Enterprise Network Infrastructure: Gigabit Ethernet optical connectivity supports fiber links between compatible networking devices.
• Data Center Interconnections: The module can support compatible switch and network-device fiber links where the required interface, optical specifications and distance match.

• 1.25Gbps Data Rate: Supports an optical data rate of 1.25Gbps — provides fiber connectivity for Gigabit Ethernet network links.
• Single-Mode Fiber Support: Designed for single-mode fiber (SMF) — supports optical connections over distances up to 10km.
• 1310nm Wavelength: Operates at a wavelength of 1310nm — supports the specified 1000BASE-LX optical link design.
• Up to 10km Reach: Supports link distances up to 10km over single-mode fiber — enables fiber connections between network locations within the specified reach.
• Duplex LC Connector: Uses a duplex LC connector — supports connection to compatible duplex LC fiber infrastructure.
• Hot-Pluggable SFP Form Factor: Uses a hot-pluggable SFP design — allows installation or replacement in compatible SFP interfaces.
• Digital Optical Monitoring: The product information lists digital optical monitoring capability — supports optical diagnostics and monitoring where implemented by the module and host device.
• Low Power Consumption: Maximum power consumption is listed as 1.5W — helps limit the power required for the optical module.

• Brand: Reyee
• Model: MINI-GBIC-LX-SM1310
• Product Type: Optical SFP transceiver
• Optical Standard: 1000BASE-LX
• Form Factor: SFP
• Data Rate: 1.25Gbps
• Fiber Type: Single-mode fiber (SMF)
• Operating Wavelength: 1310nm
• Maximum Transmission Distance: 10km
• Connector Type: Duplex LC
• Transmitter Type: DFB
• Minimum Transmit Power: -11dBm
• Maximum Transmit Power: -3dBm
• Receiver Sensitivity: Less than -19dBm (OMA)
• Digital Optical Monitoring: Listed as supported in product highlights; confirm the exact variant specification before purchase
• Maximum Power Consumption: 1.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 10% RH to 90% RH
• Storage Humidity: 10% RH to 90% RH
• Dimensions: 56.5 x 13.5 x 8.5mm
• Weight: 35g
• Compliance: RoHS

WHY CHOOSE THIS PRODUCT?

• 10km single-mode fiber reach supports optical links across longer distances than typical short-reach multimode connections.
• The 1310nm wavelength and 1000BASE-LX specification support compatible Gigabit Ethernet optical links.
• The duplex LC connector integrates with compatible LC-terminated single-mode fiber infrastructure.
• The hot-pluggable SFP form factor simplifies module installation and replacement in supported equipment.
• The listed 1.5W maximum power consumption helps manage the power requirements of network interfaces.
